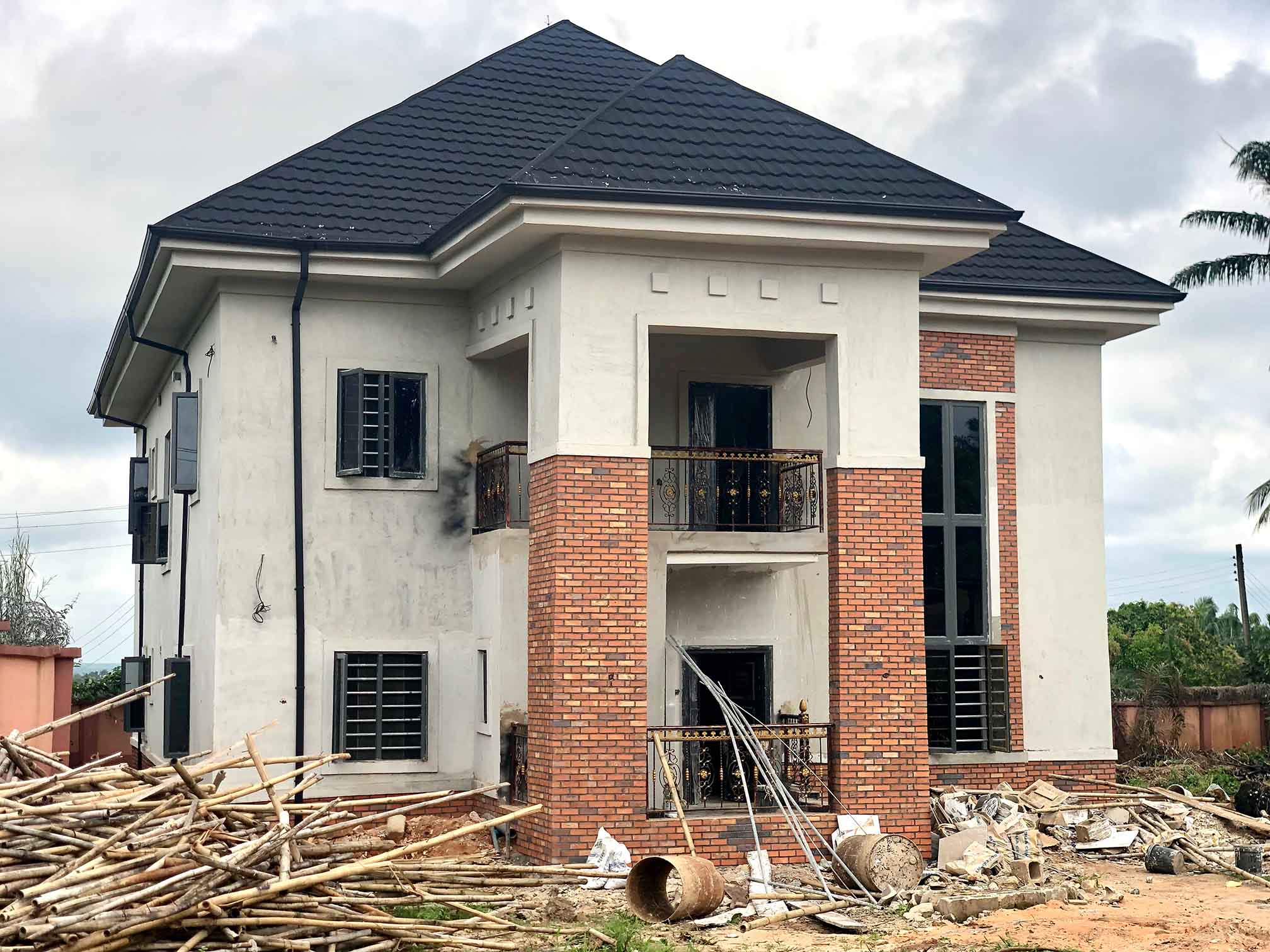

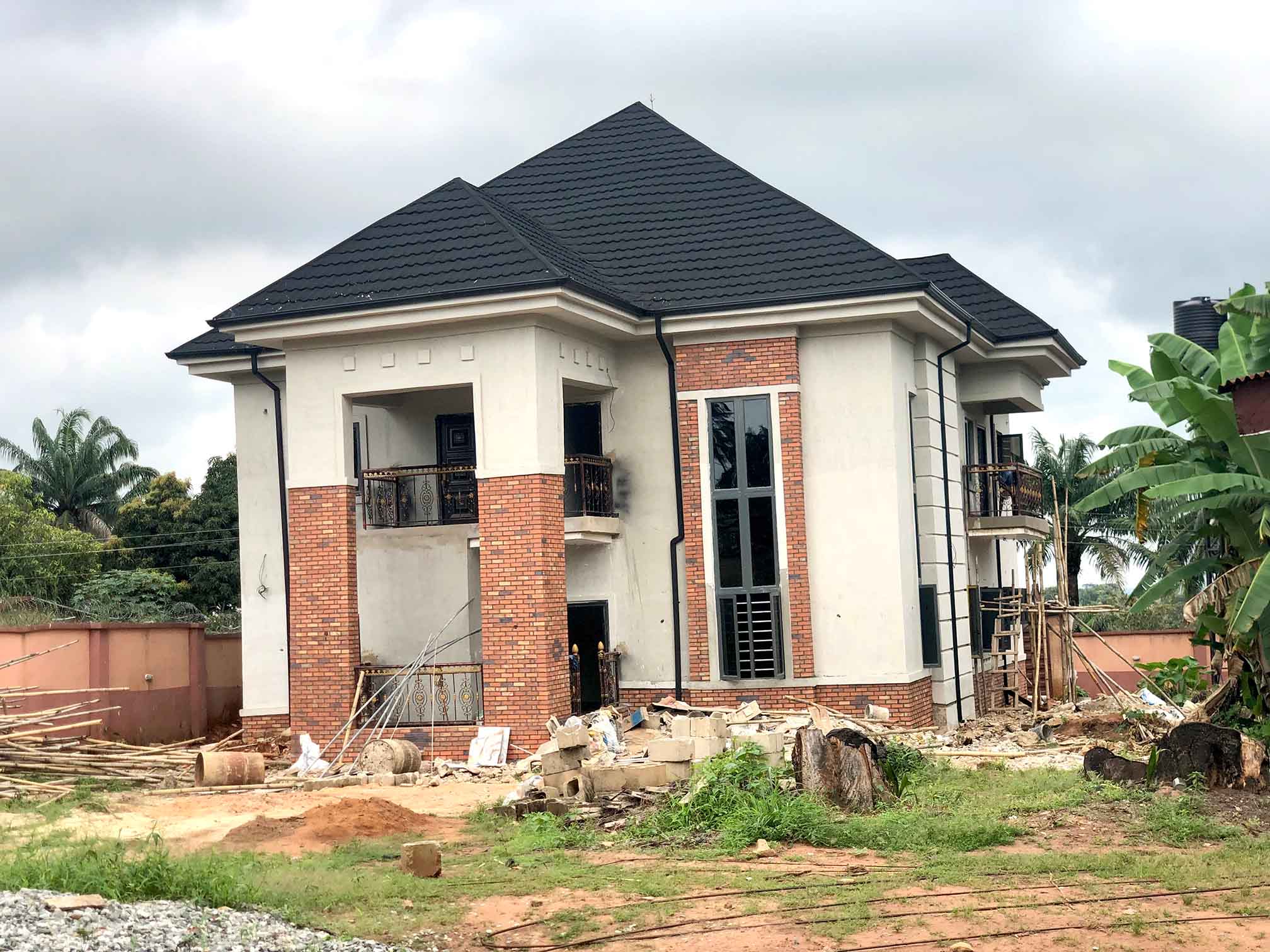

5-Bedroom Residential Development
This project involved the design and construction of a 5-bedroom duplex tailored to the client’s request for a compact, simple, and timeless home. The residence combines modern design principles with functional spatial planning to deliver comfort, elegance, and structural efficiency.
Client
Private
LOCATION
Ufuma, Anambra State, Nigeria
Total Floor Area:
Approx. 190sqm.
Completion:
2025
The scope of work includes design and documentation, procurement of materials, and construction of a 5-bedroom duplex with a total floor area of approximately 190 square meters.
Construction & Finishes:
The building features a reinforced concrete framed structure, comprising column bases, columns, beams, lintels, and sand–cement block infill walls.
Design Features:
- • Entrance porch
- • Ante room with visitor’s toilet

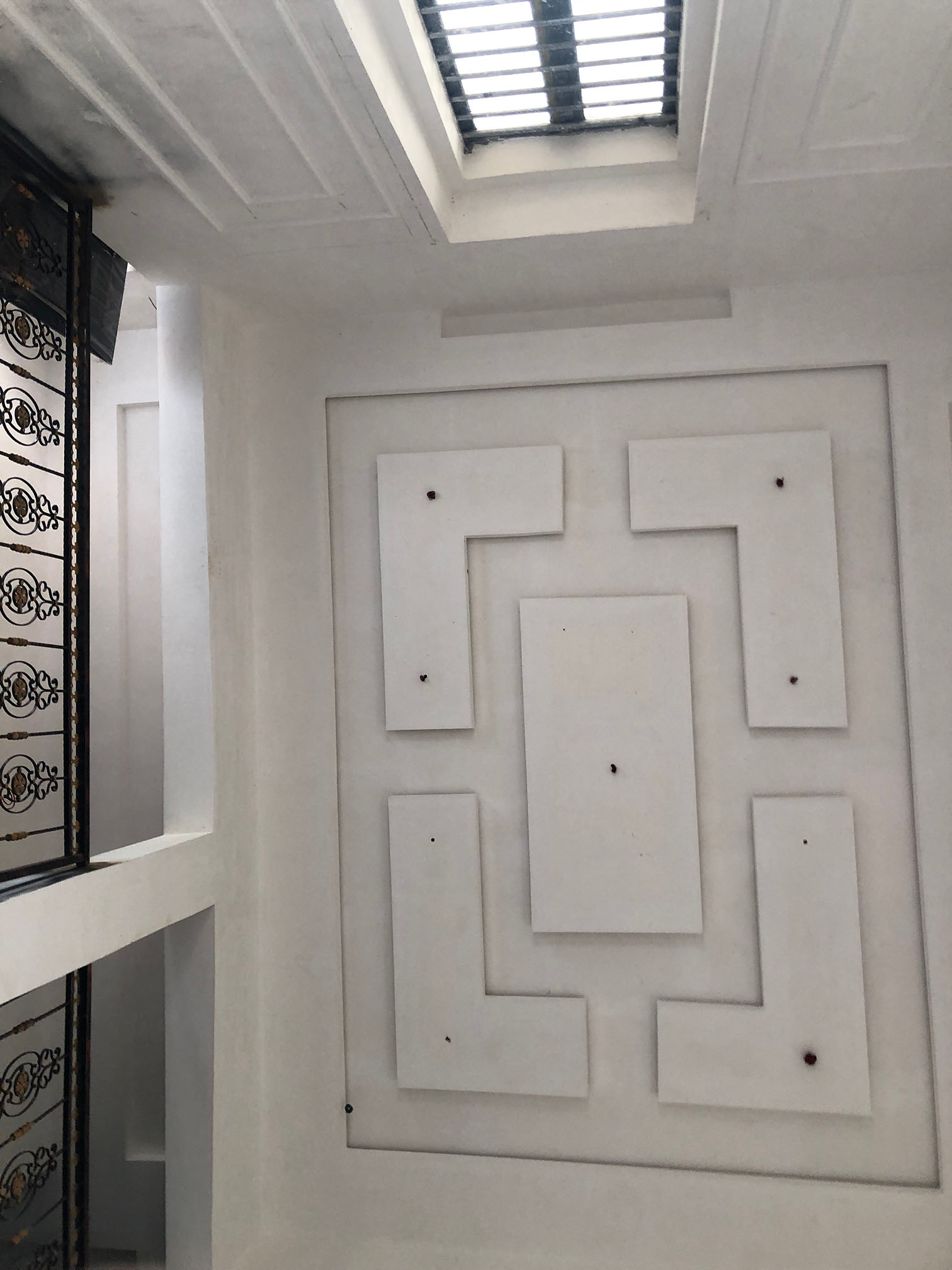

- • Living room with a double-volume void
- • Dining area
- • Fully equipped kitchen with a store
- • Two en-suite bedrooms on the ground floor
- • Three en-suite bedrooms and a family lounge on the upper floor
External Works:
Includes septic tanks, soakaway pits, inspection chambers, and comprehensive drainage and plumbing systems.
Site Inspection

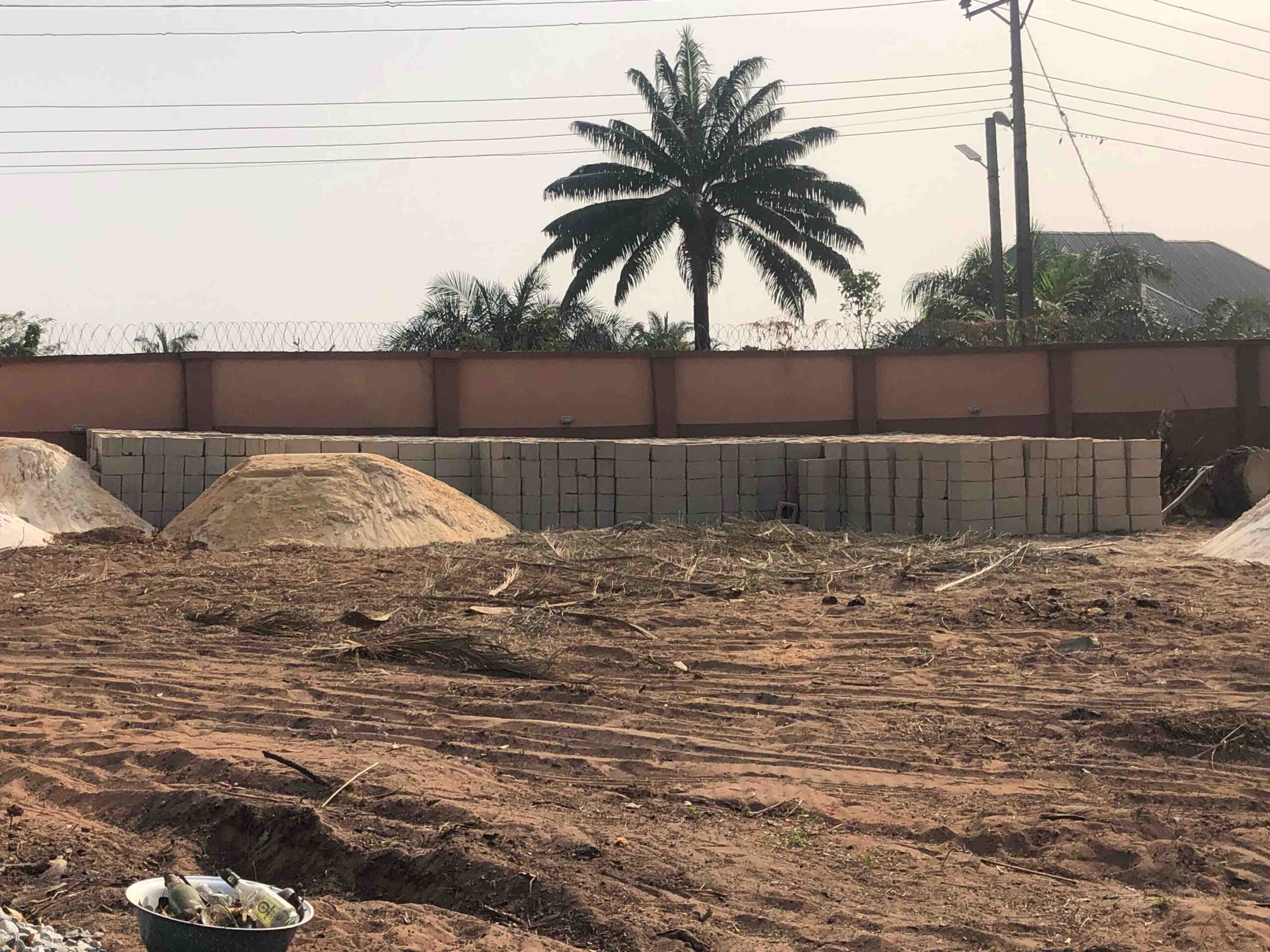

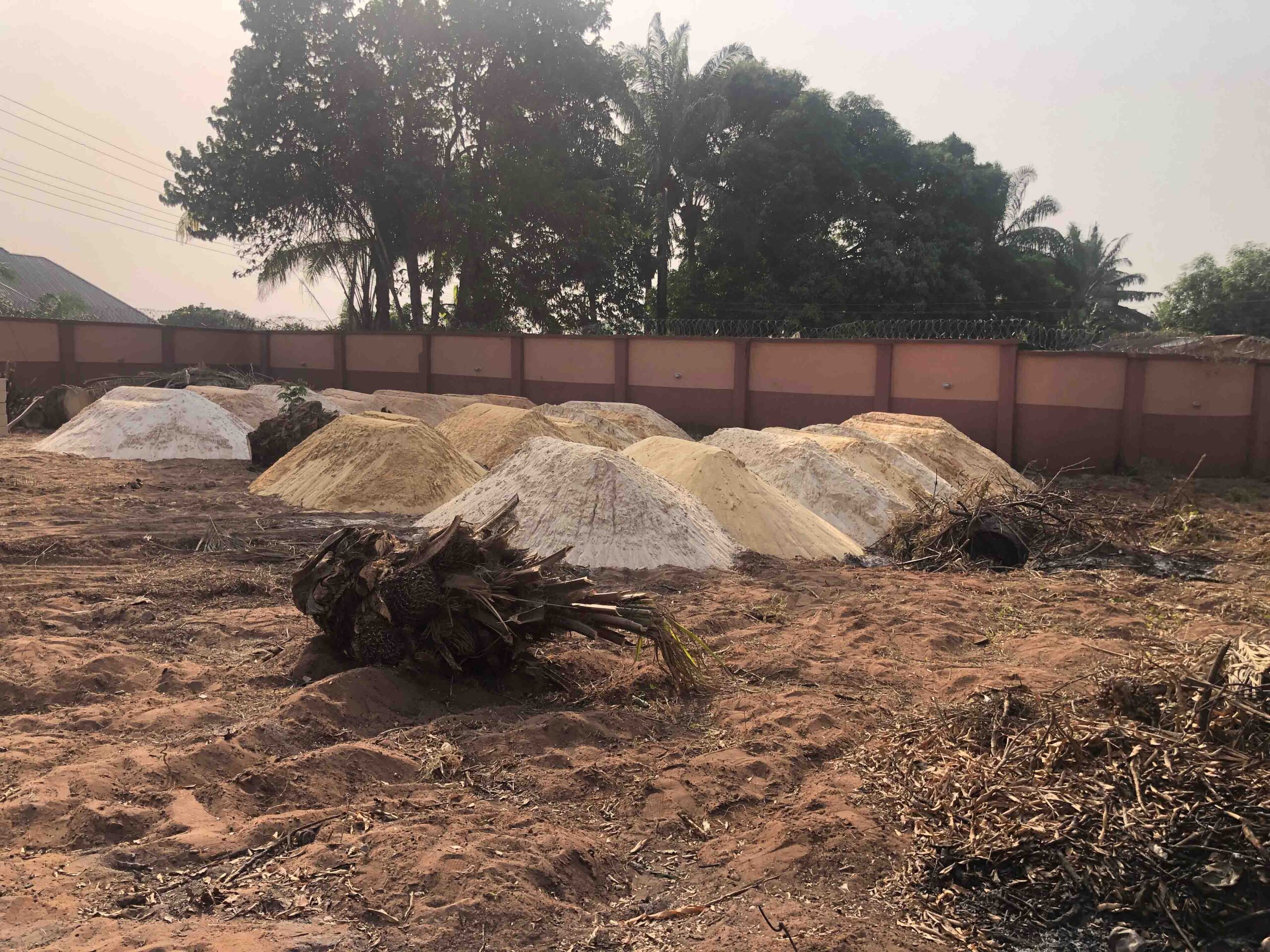

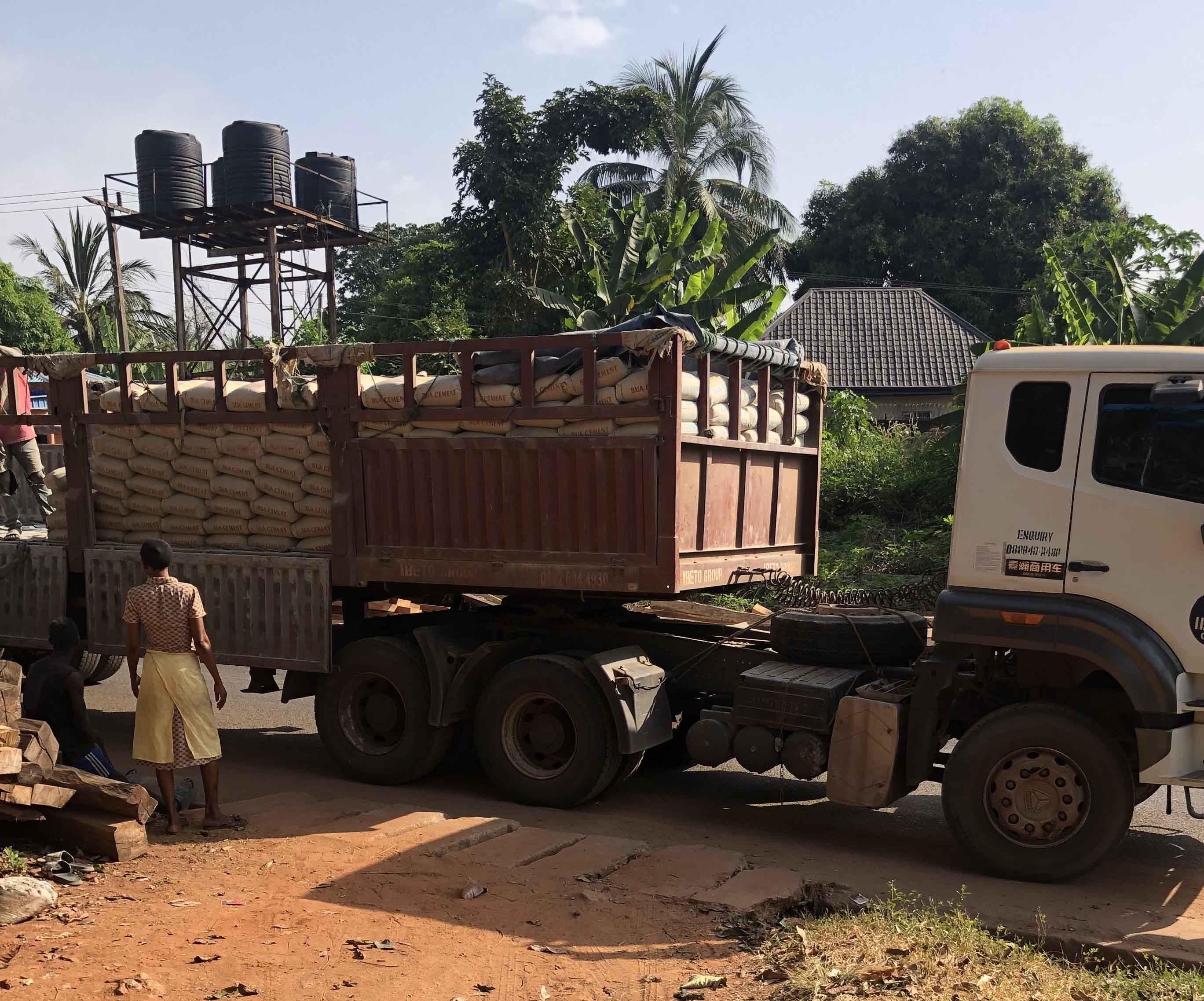

Procurement of Materials
Site Handover

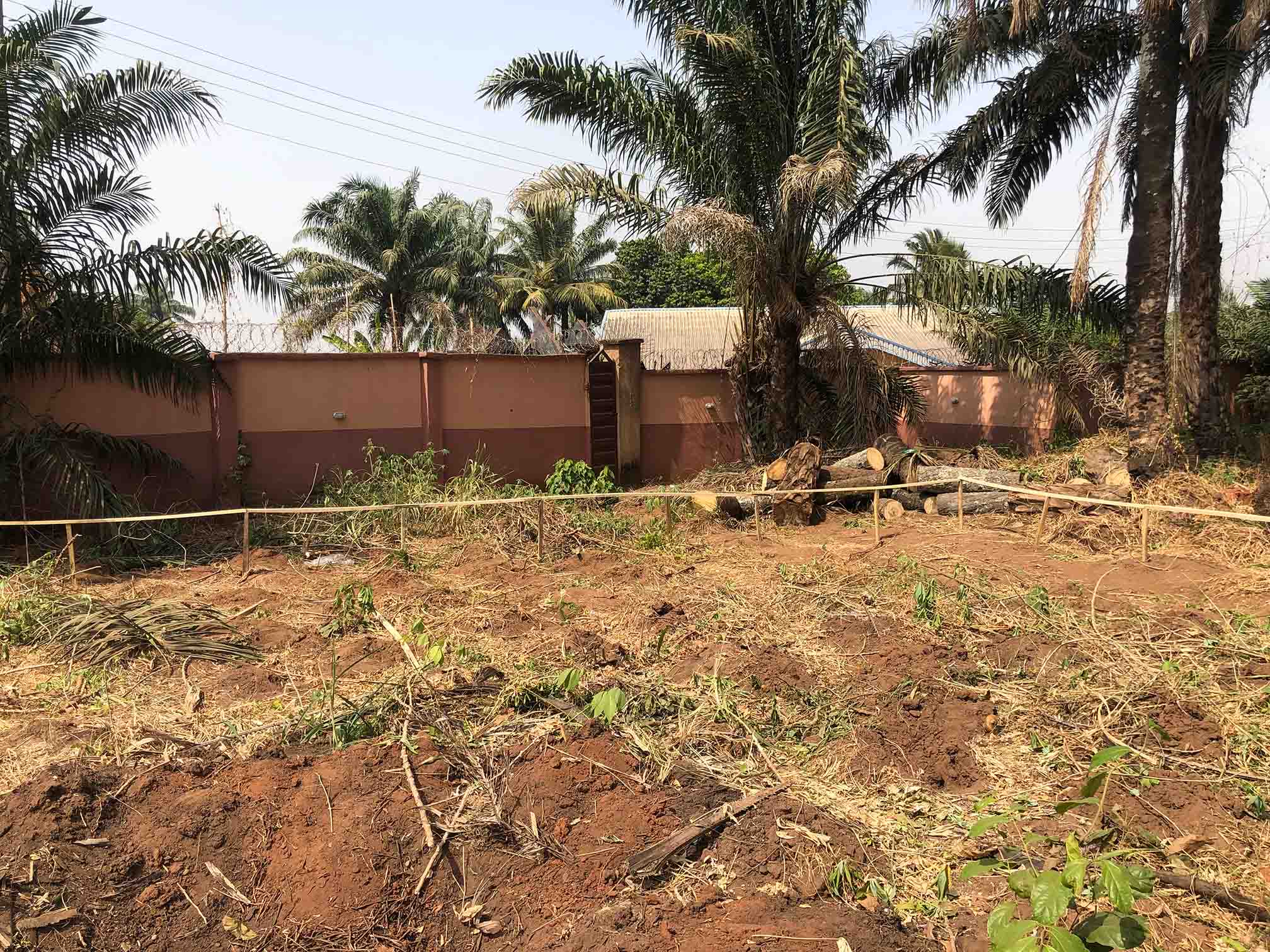

Setting Out

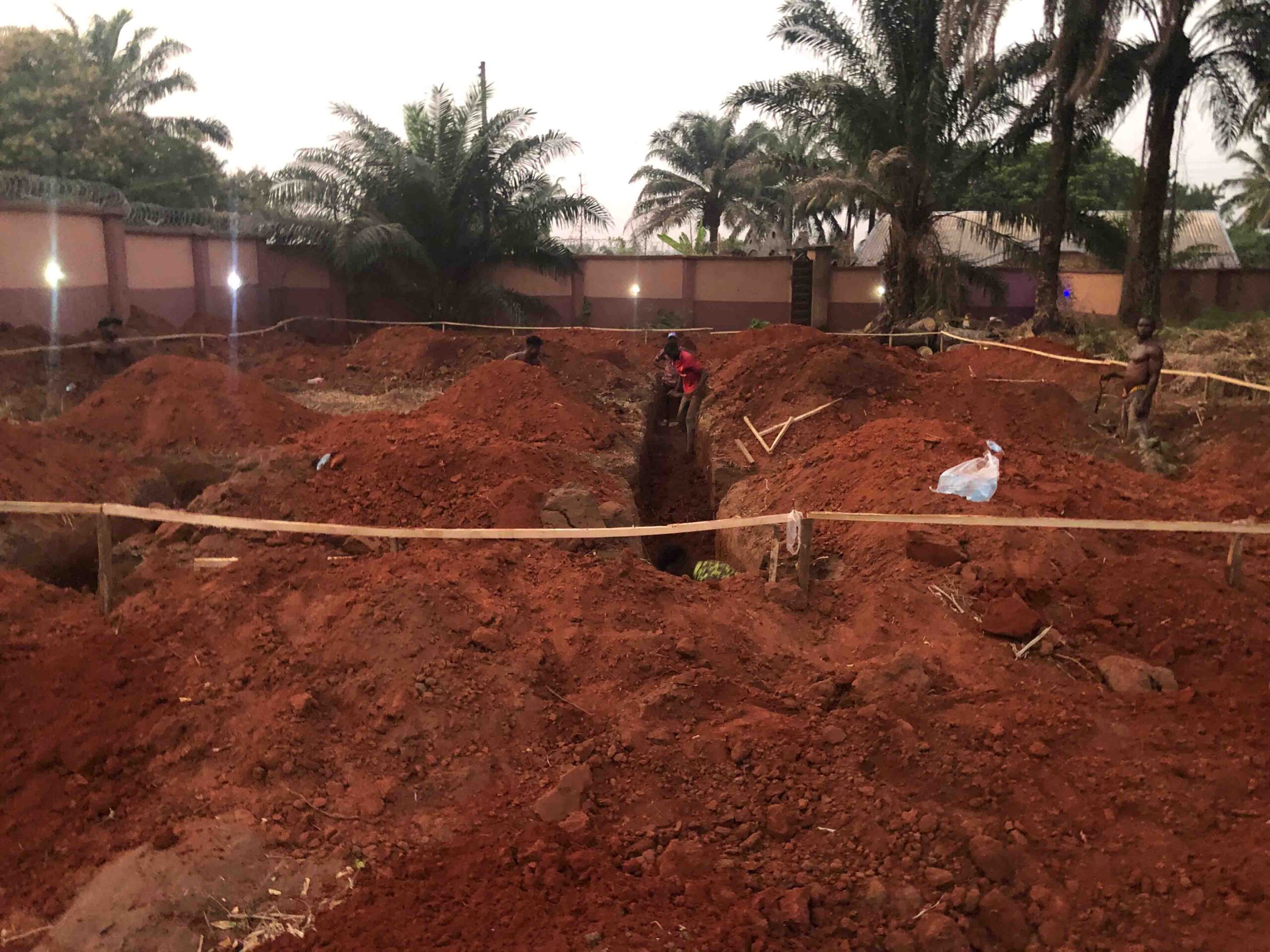

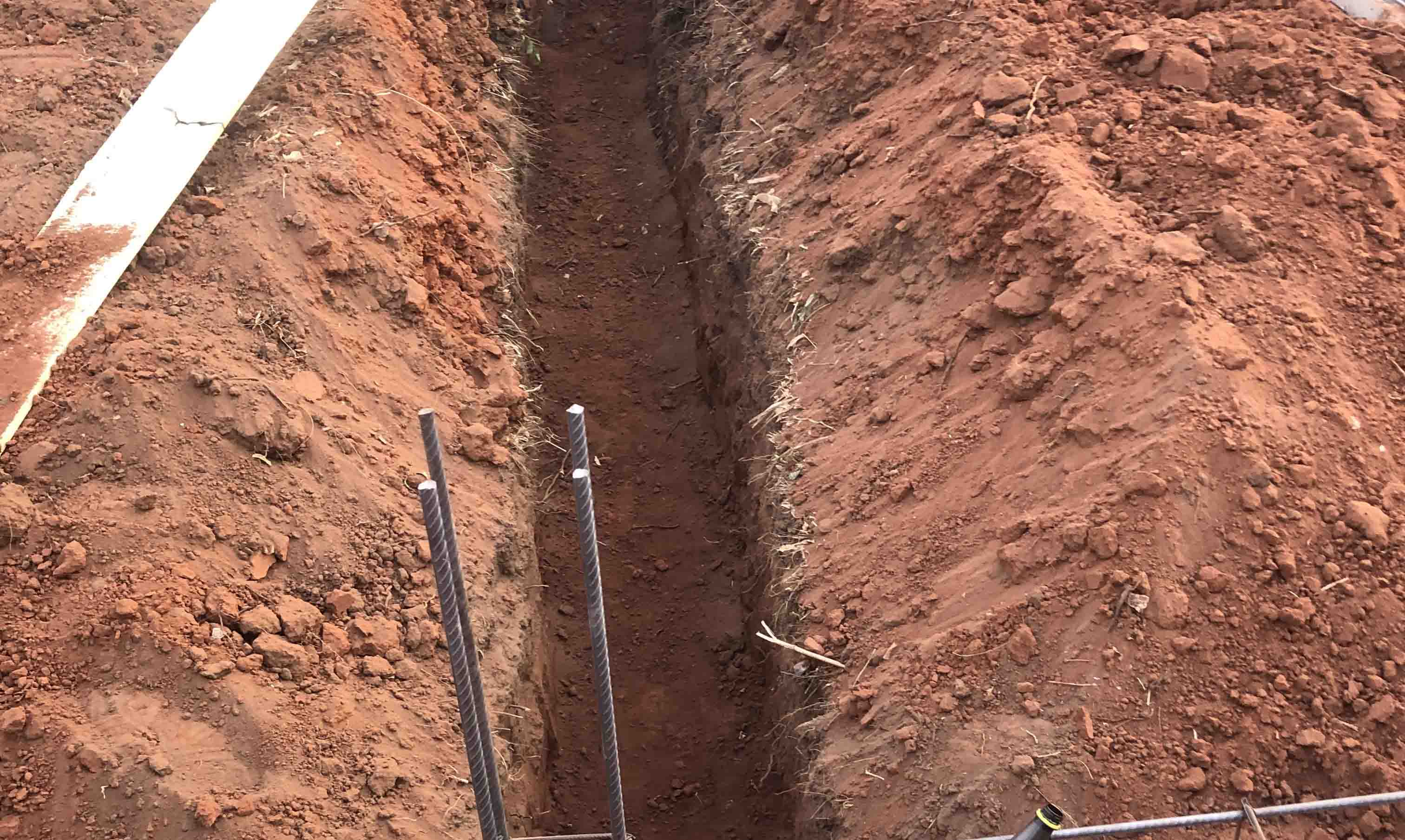

Excavation of Foundation

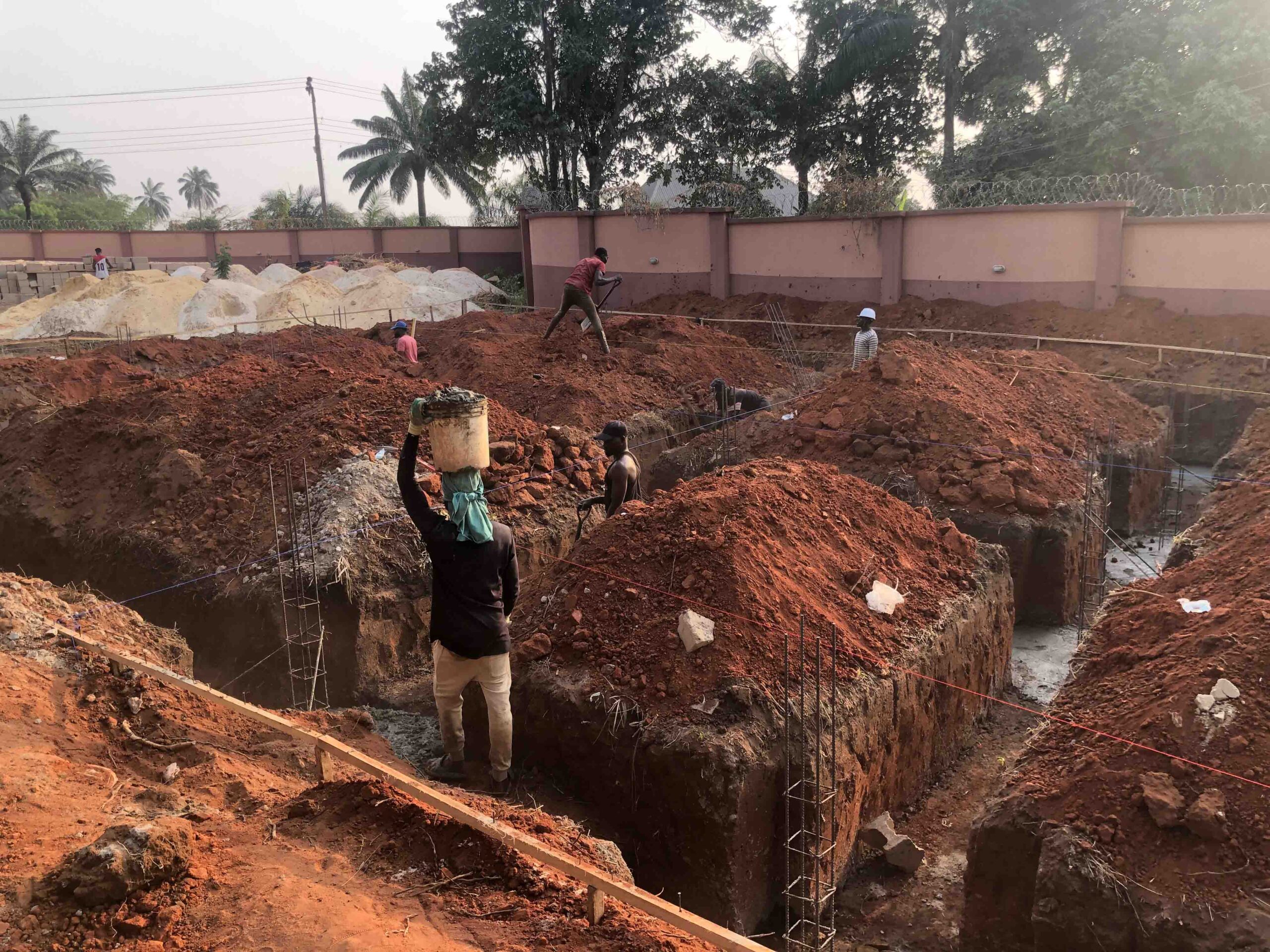

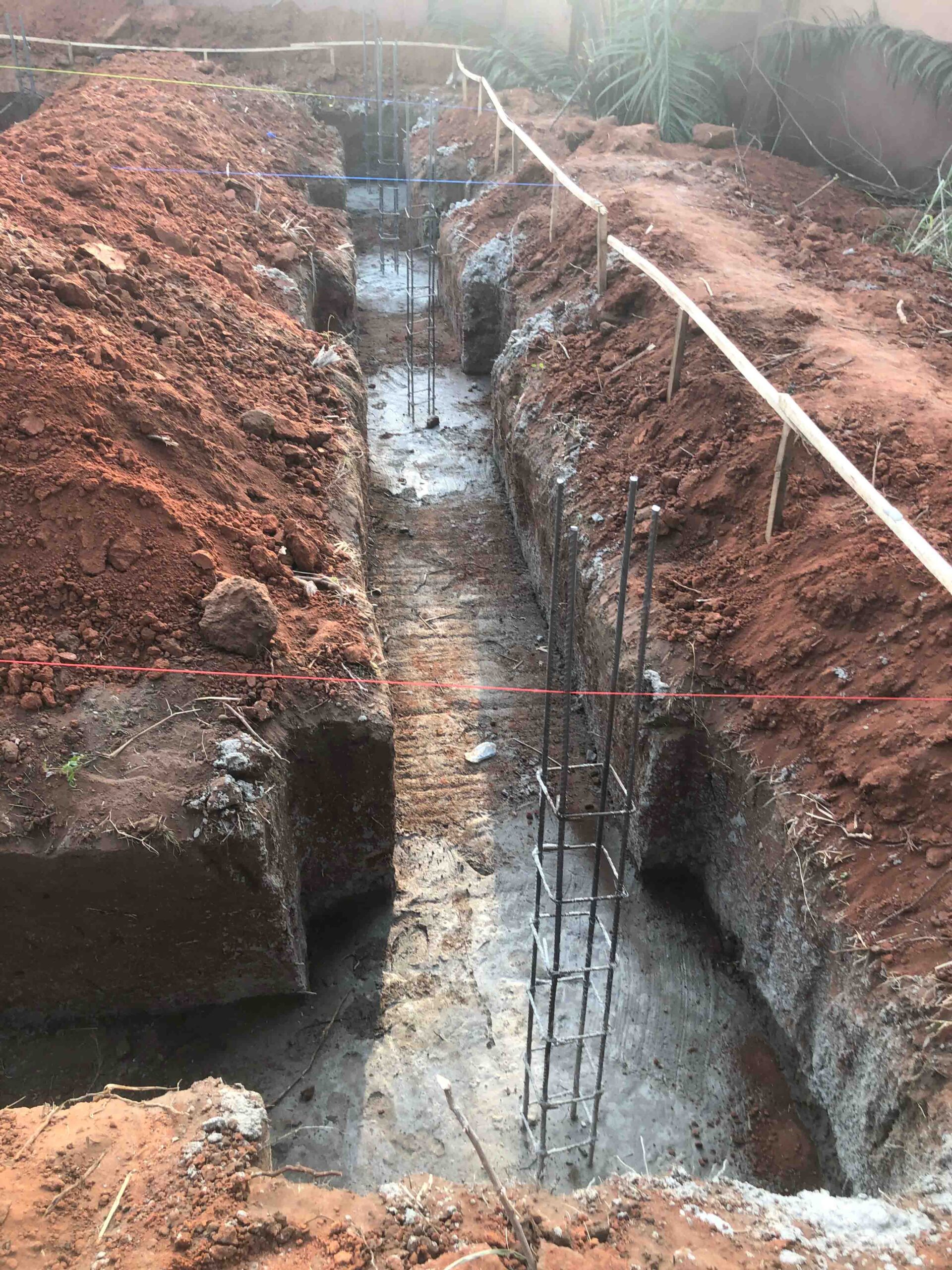

Casting of Foundation

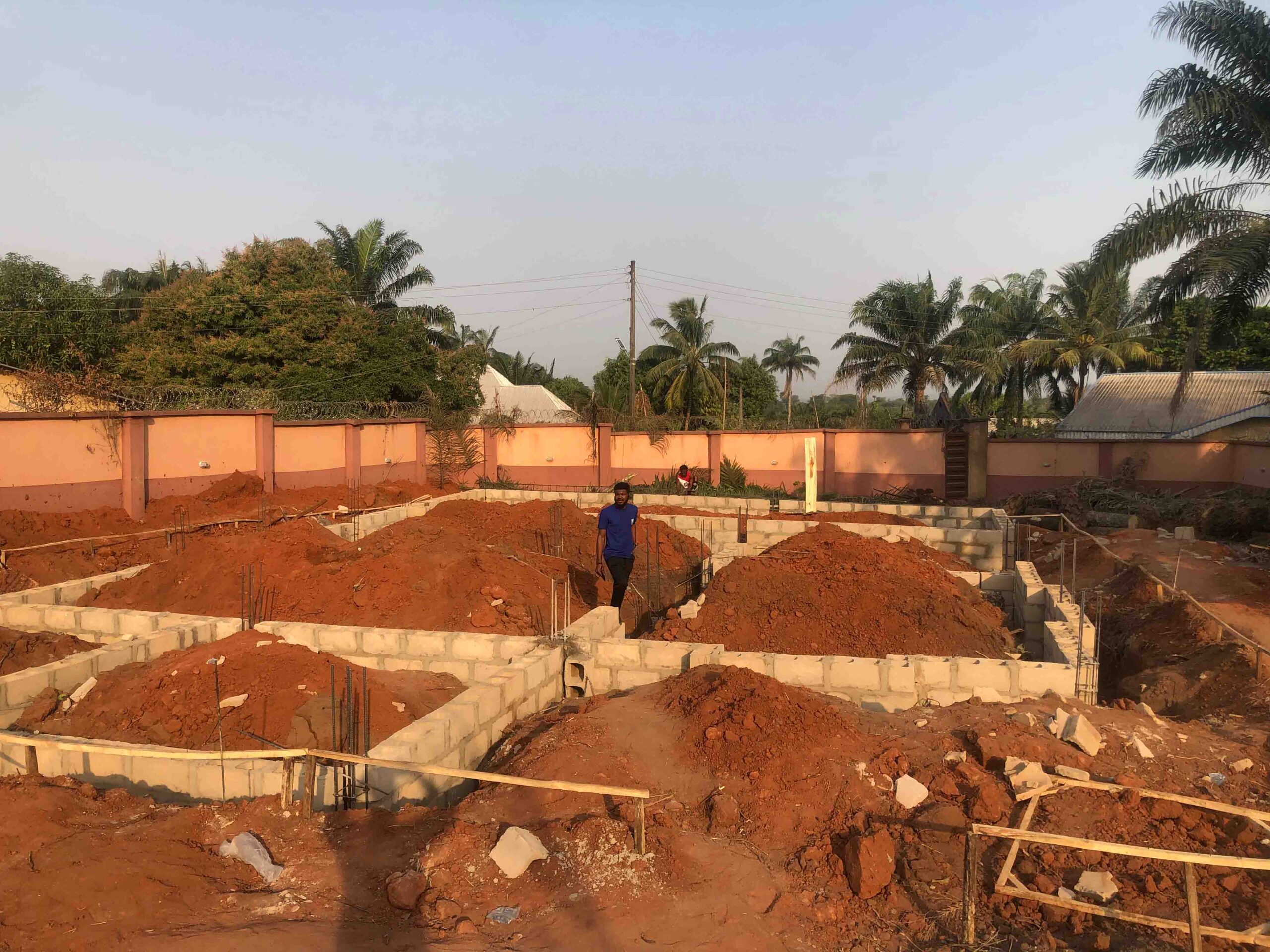

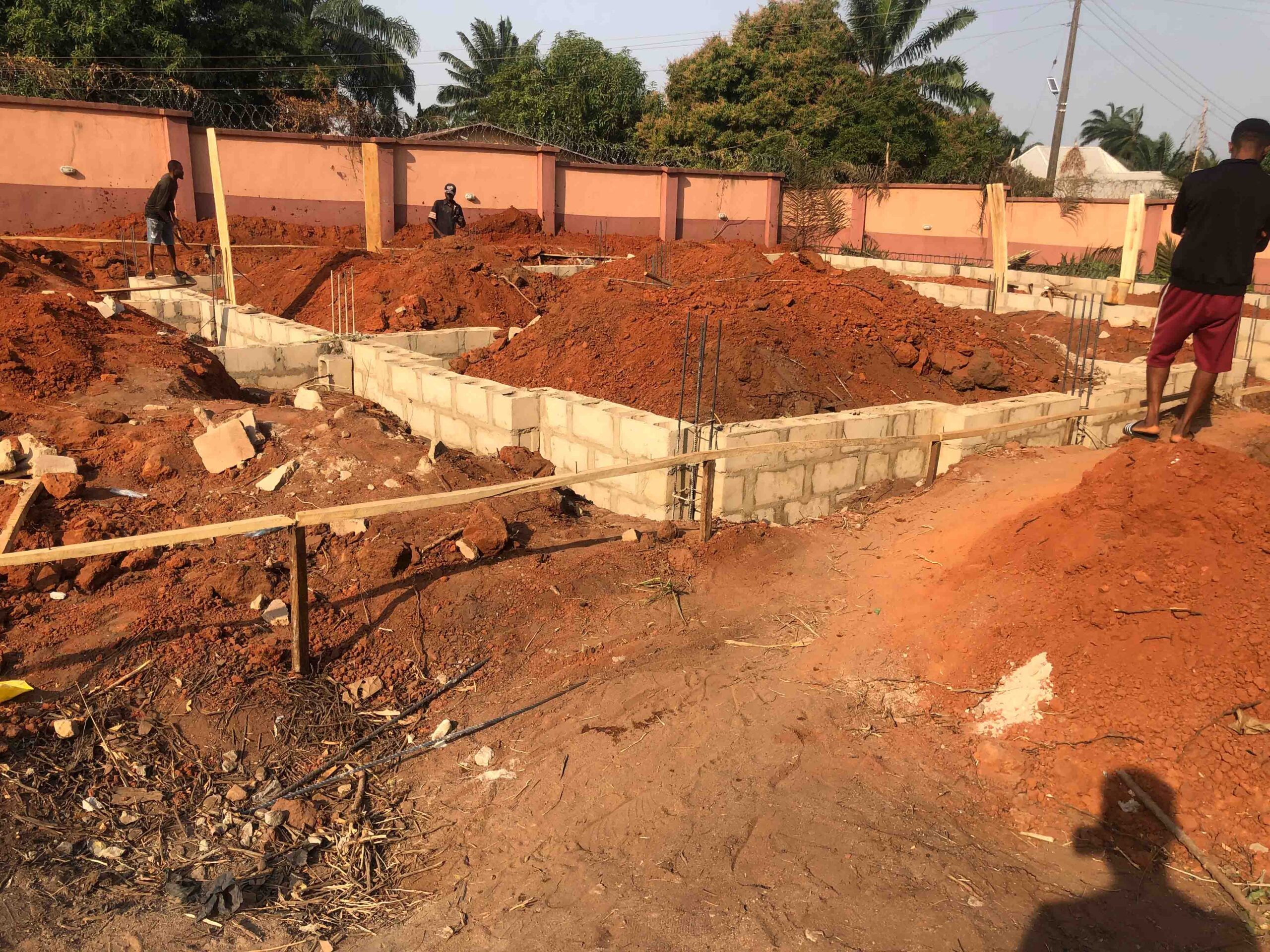

Blockwork in Foundation

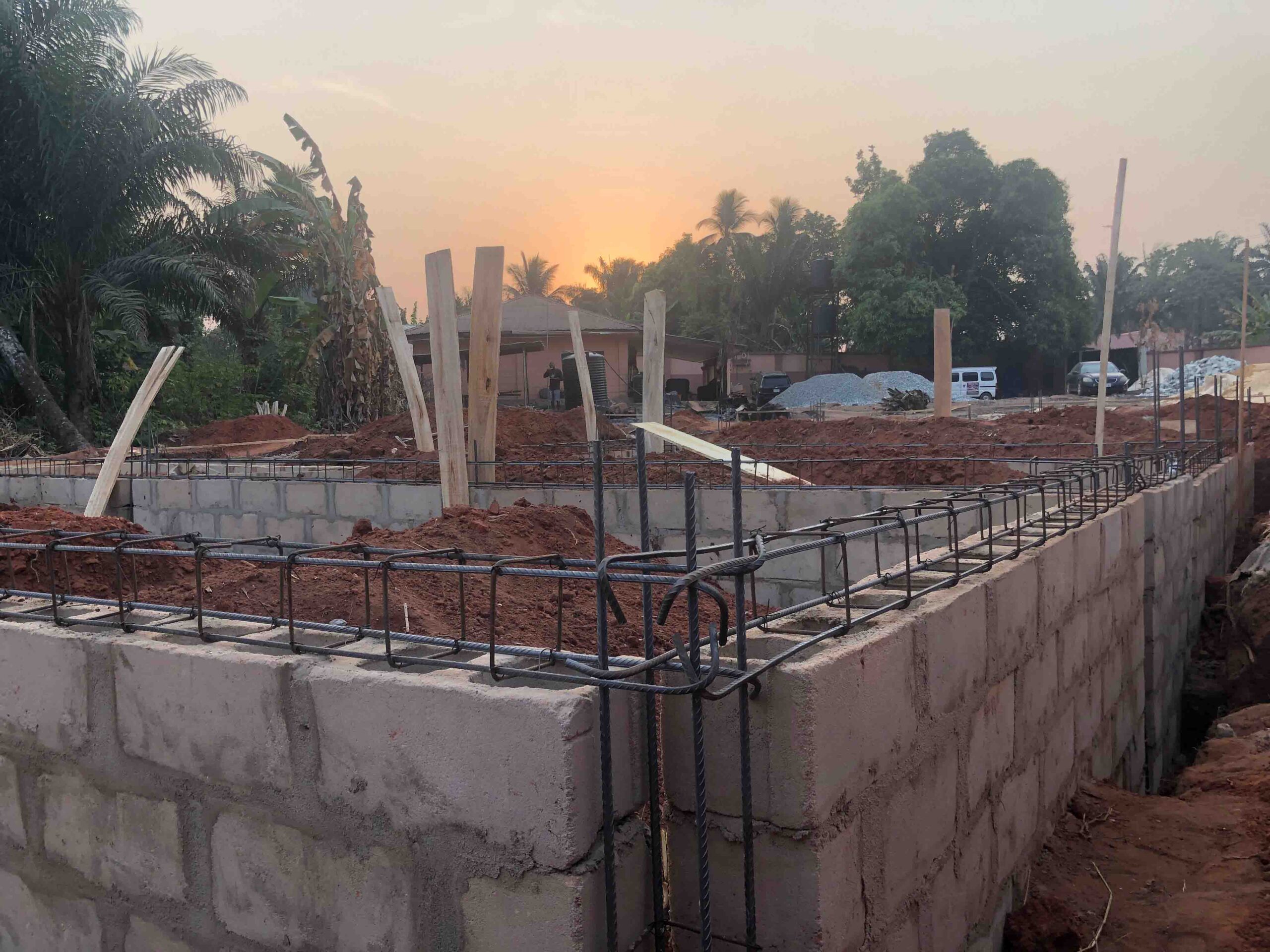

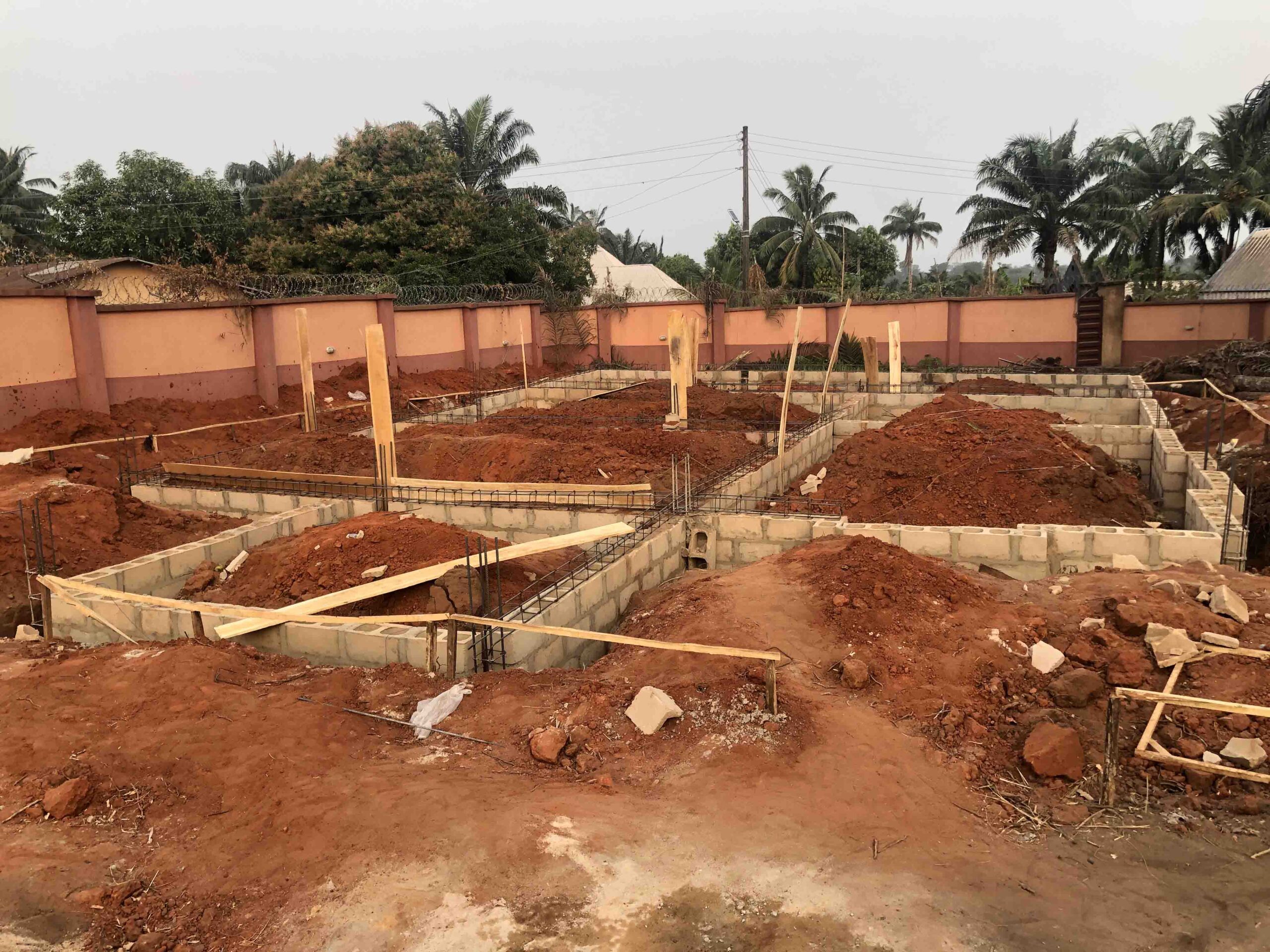

Introduction of Foundation Beams

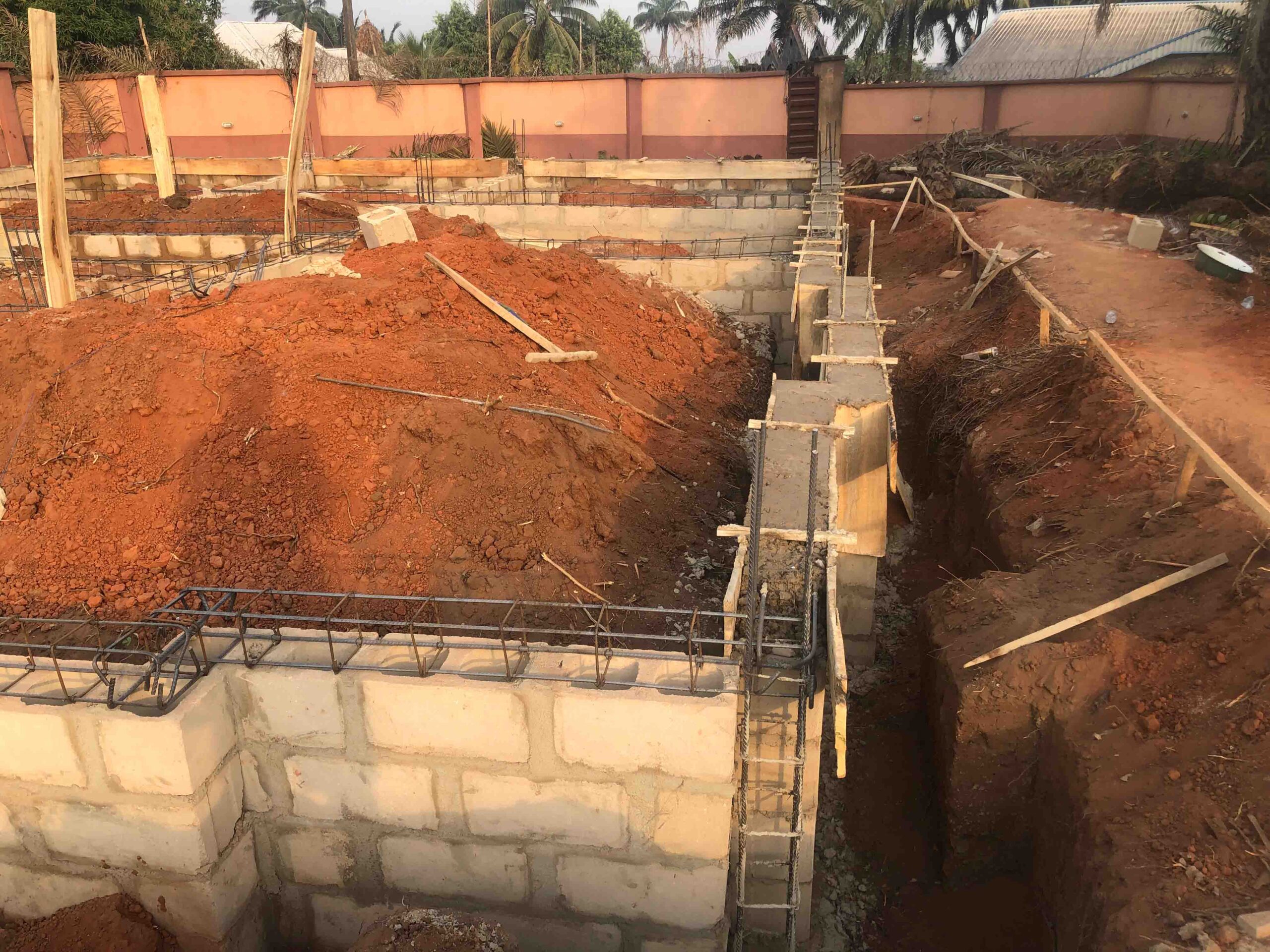

Casting of Foundation Beams

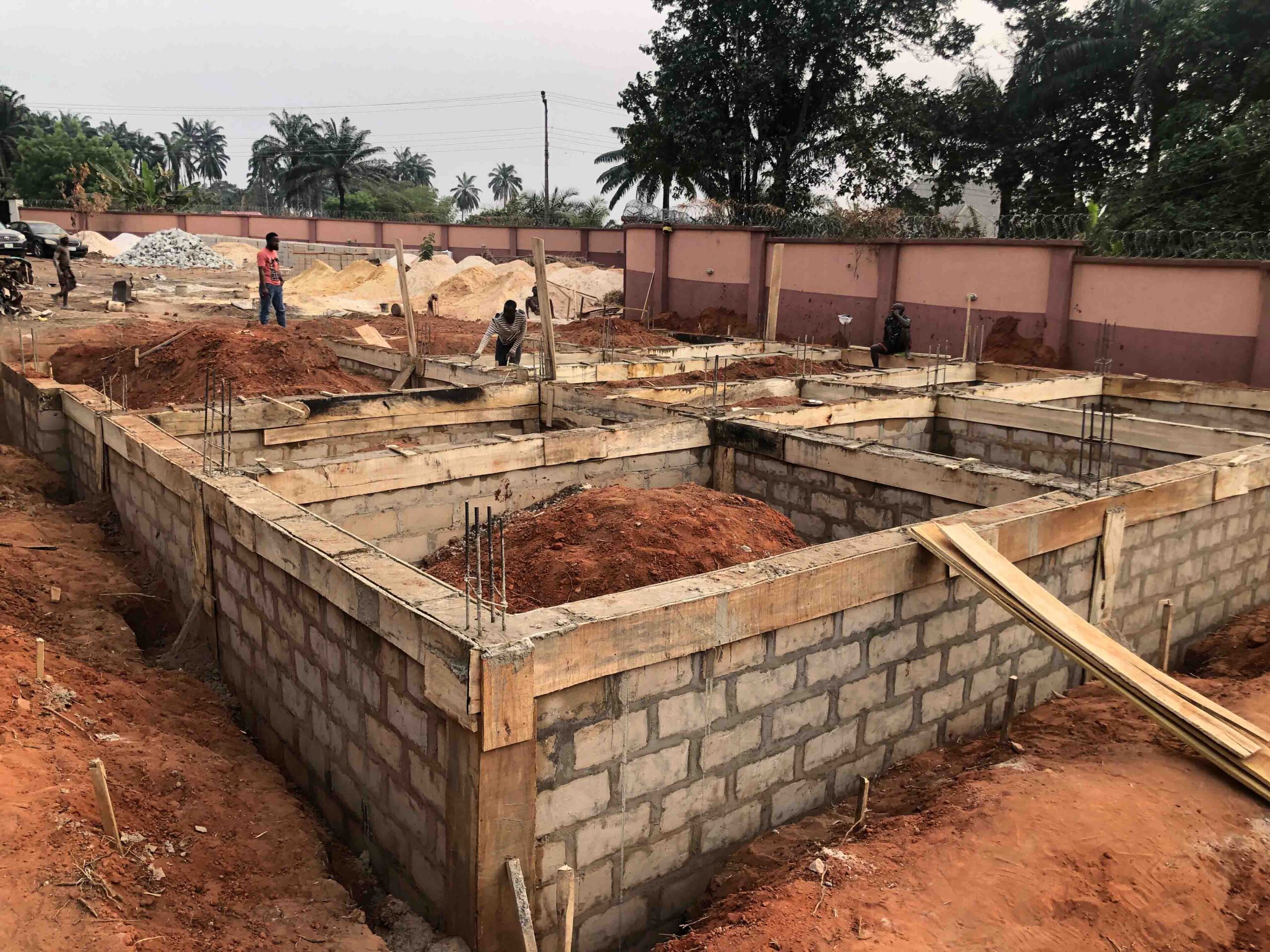

Back Filling

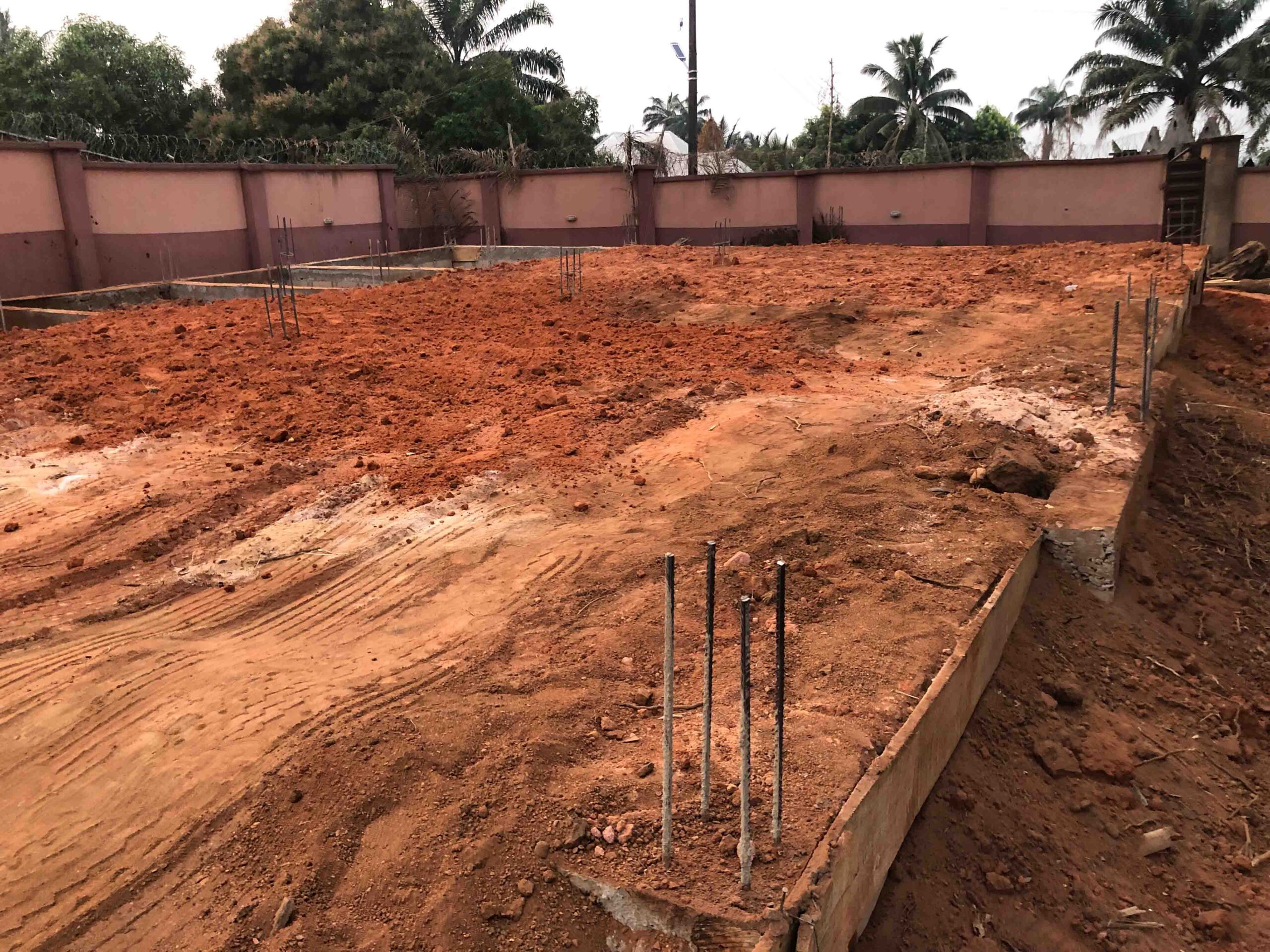

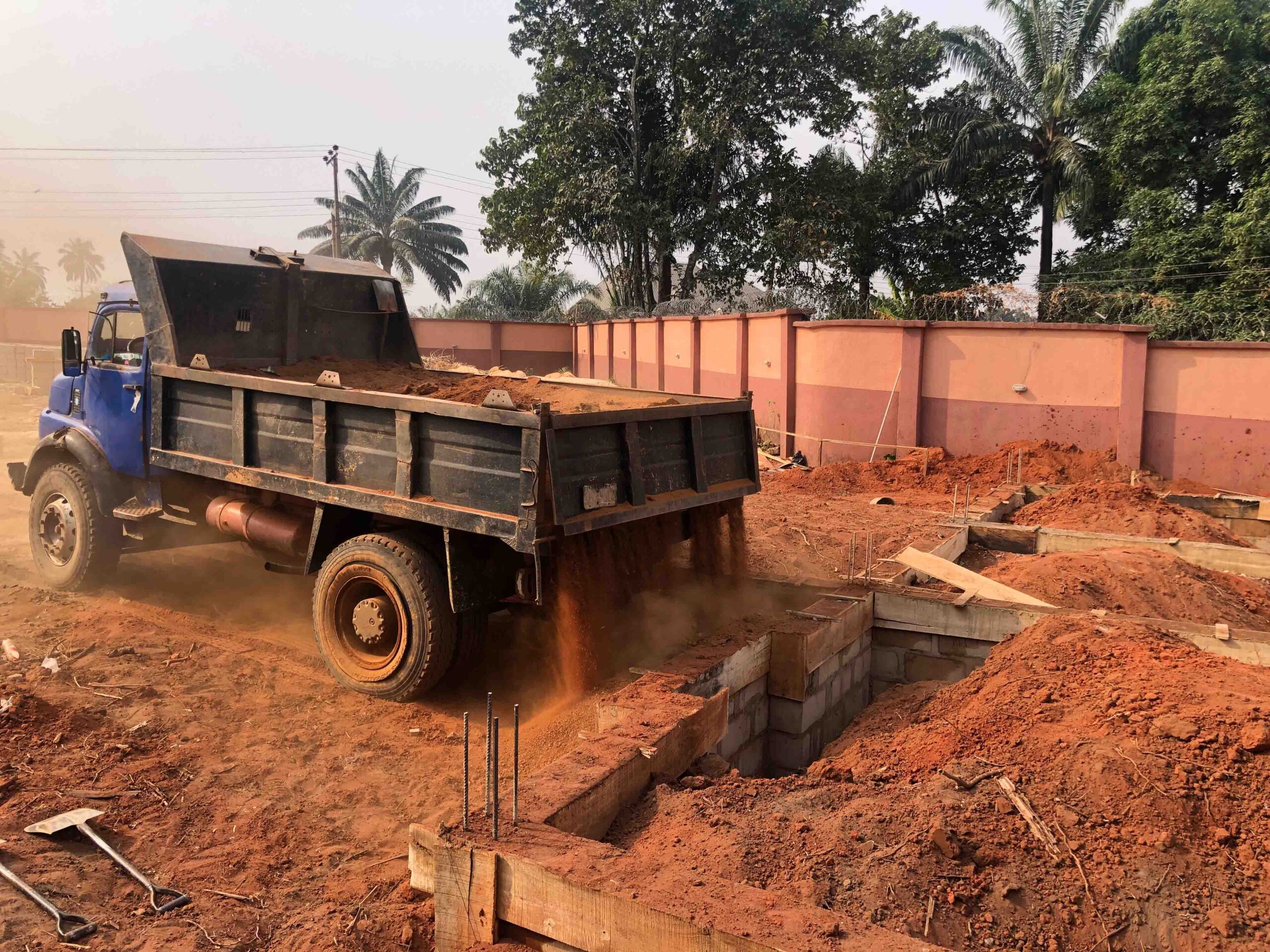

Laterite Filling

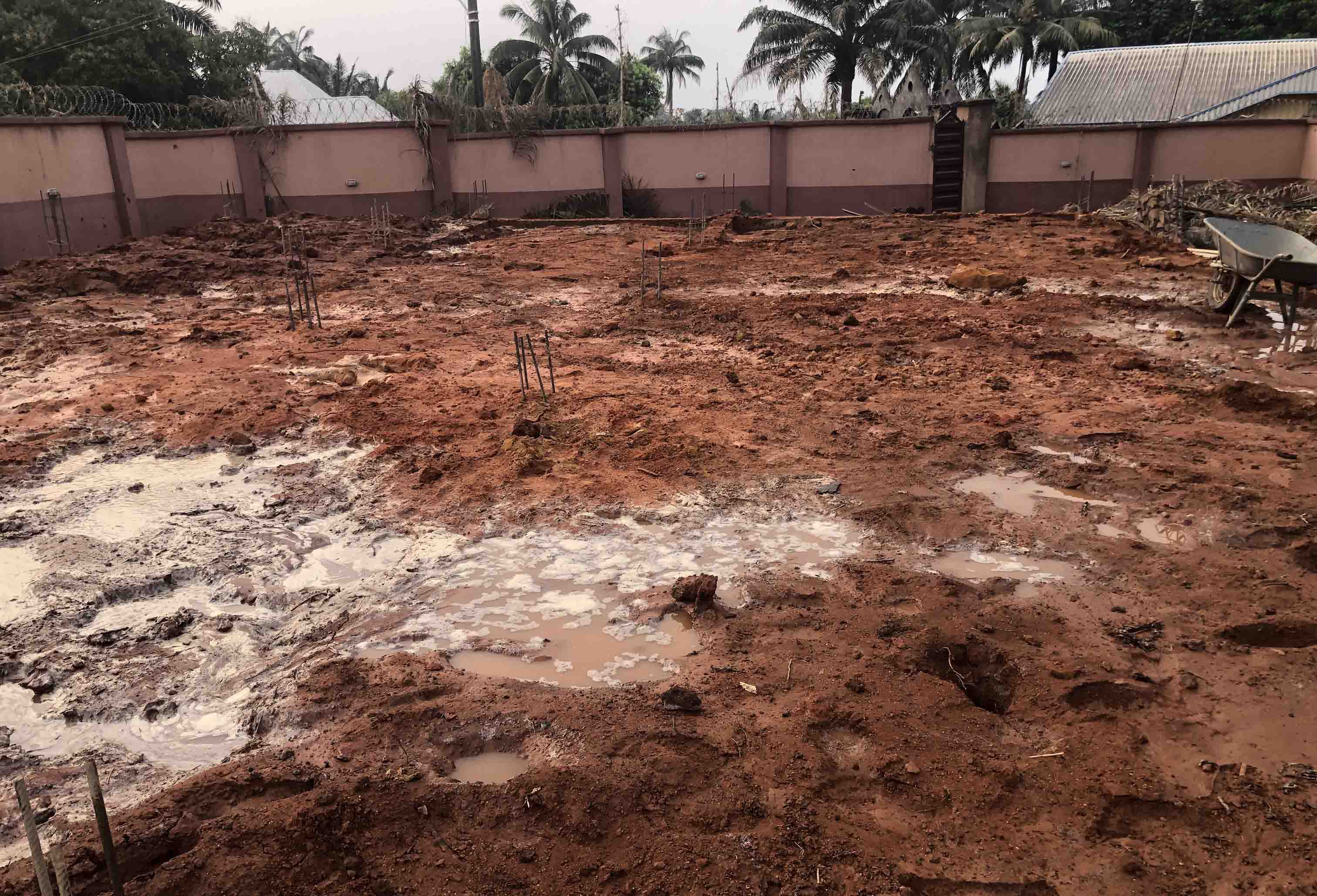

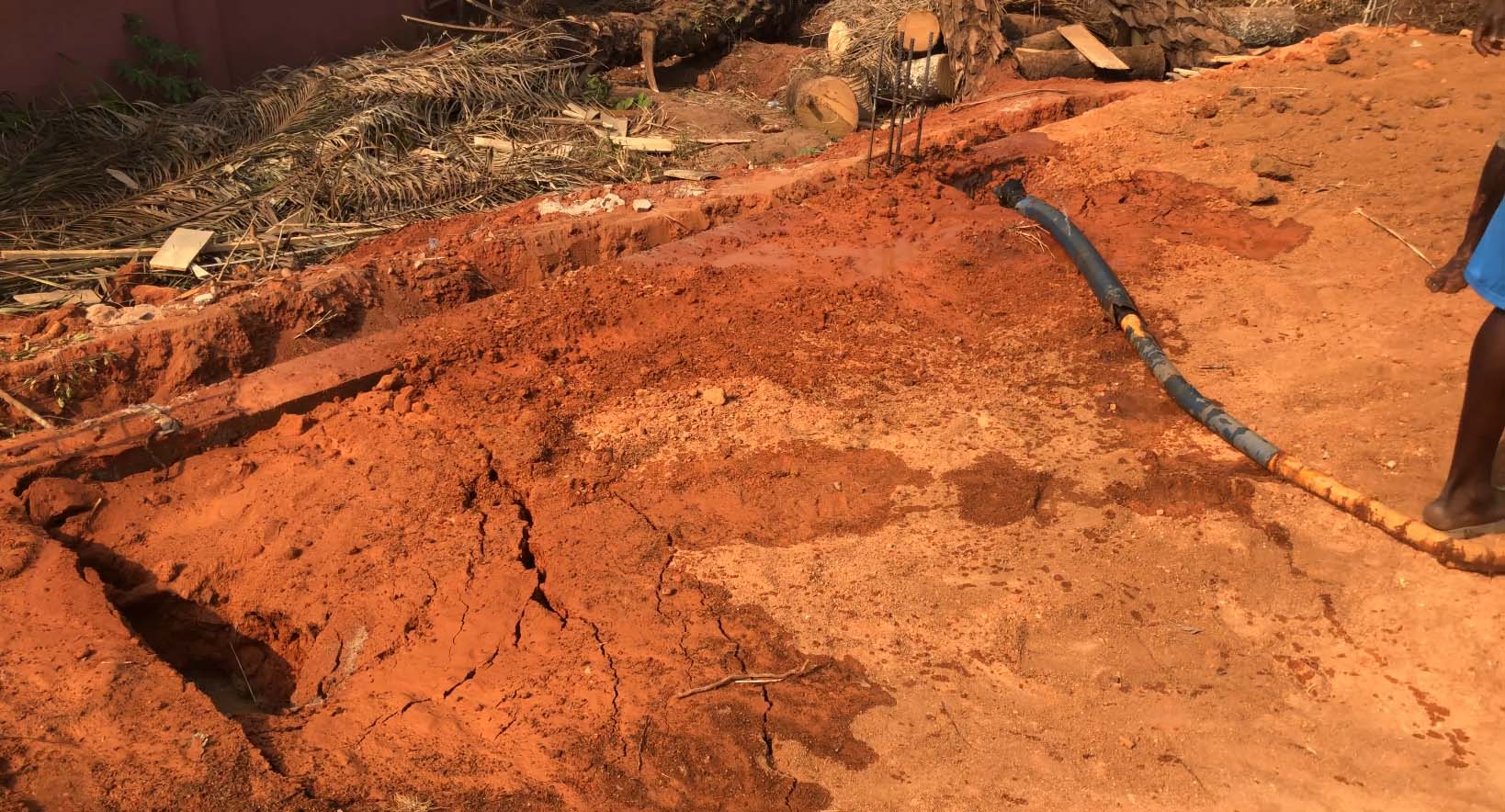

Watering of Foundation

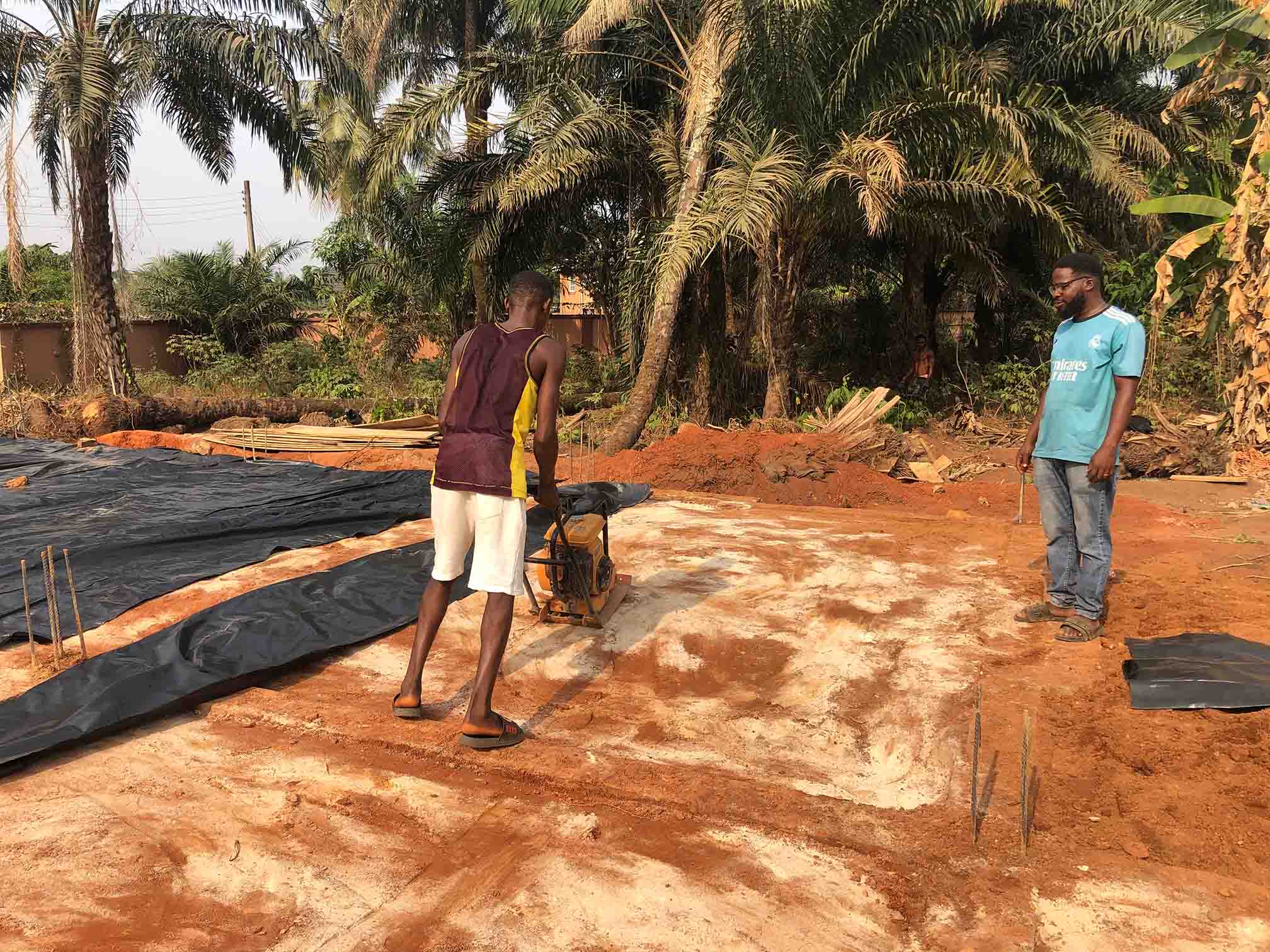

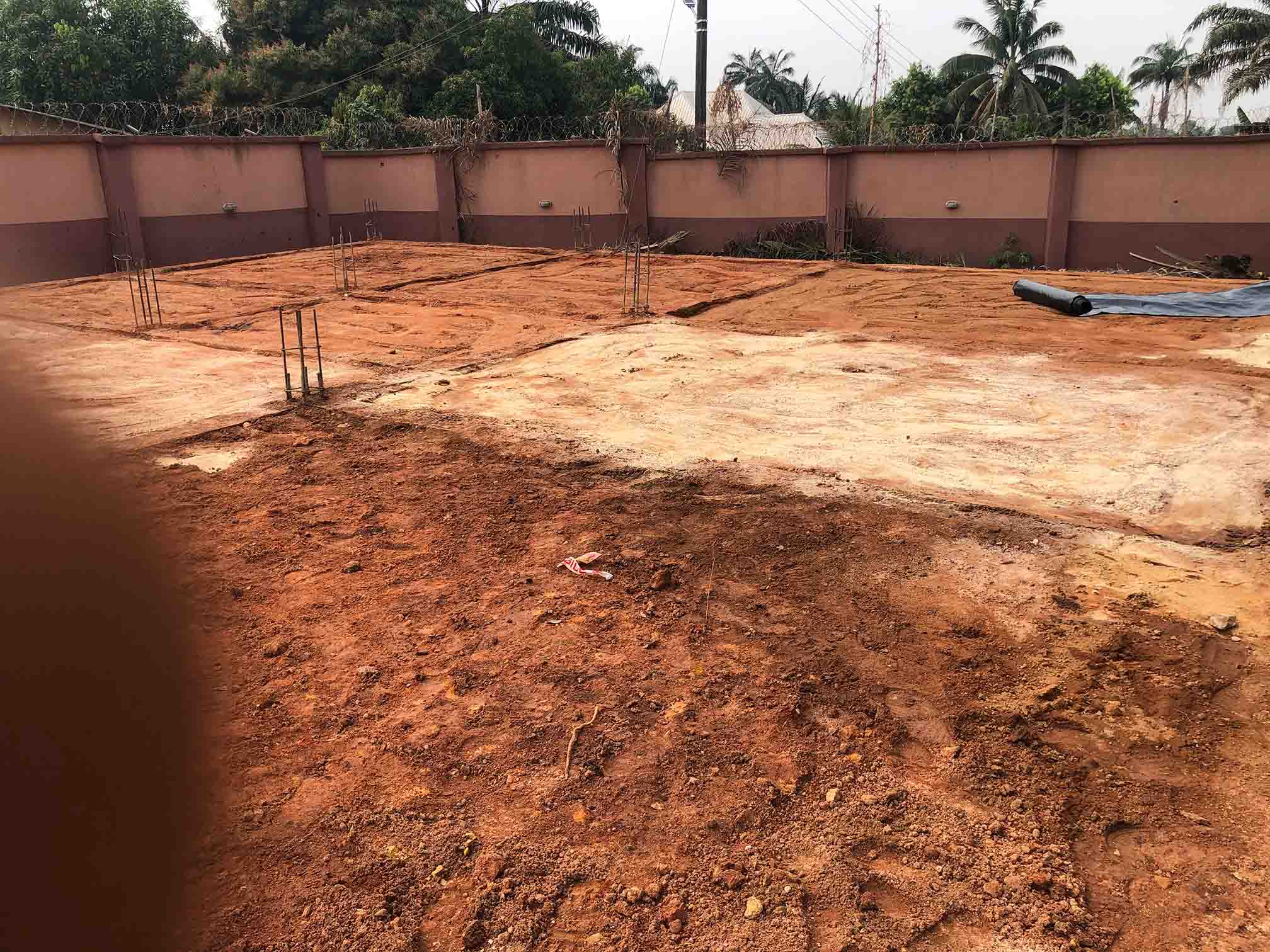

Compacting of Foundation

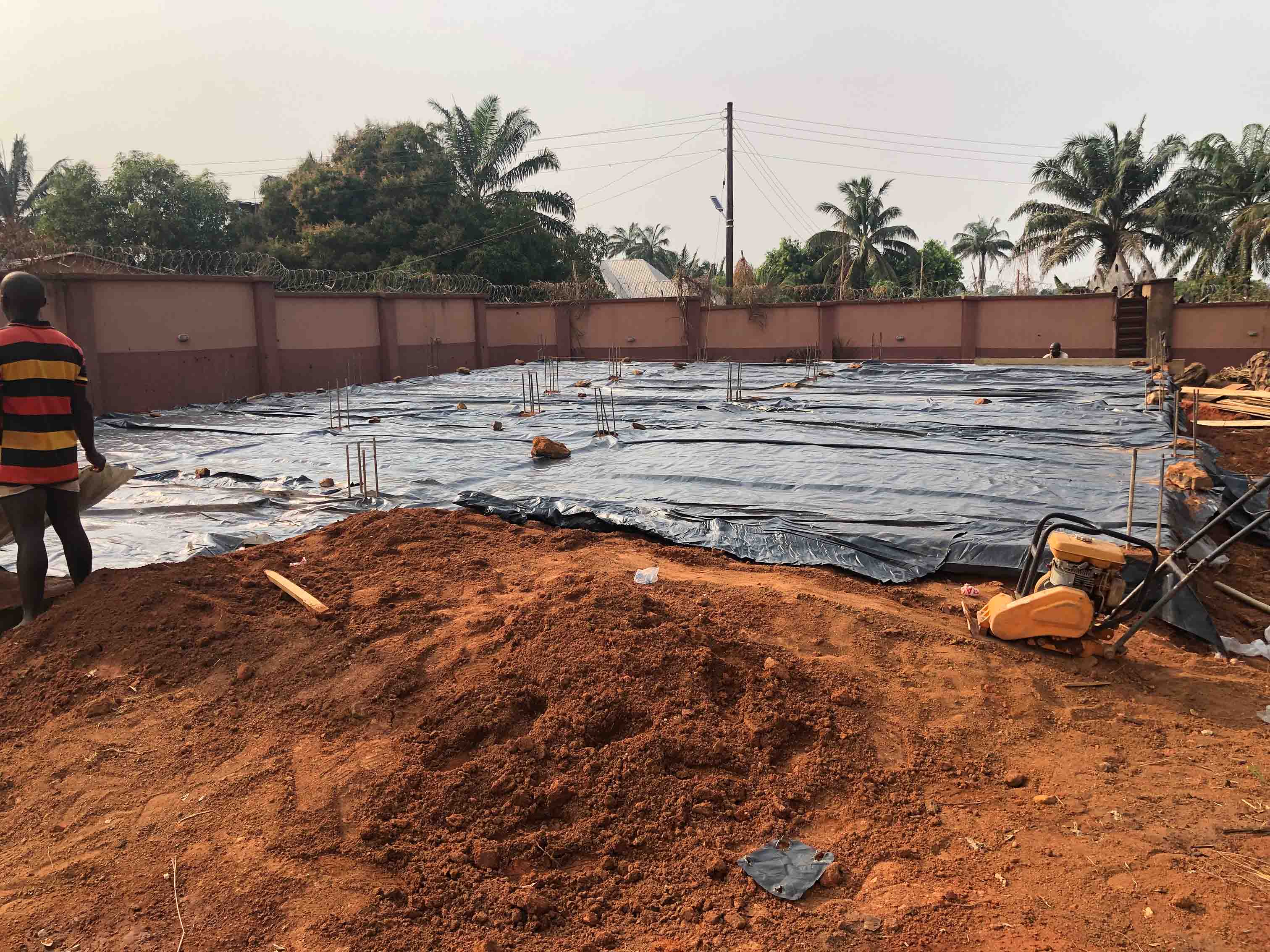

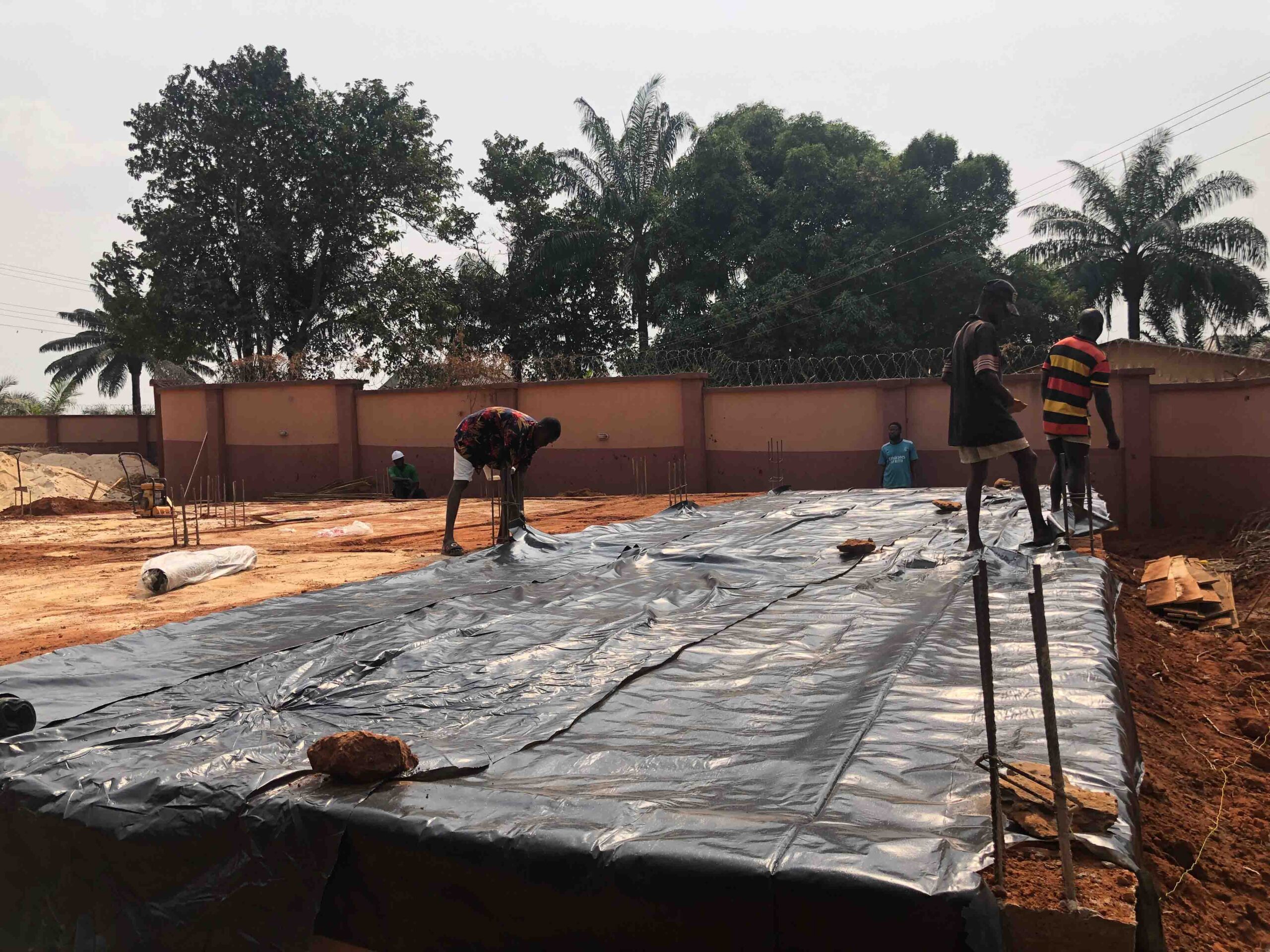

Placement of Damp-proof Membrane

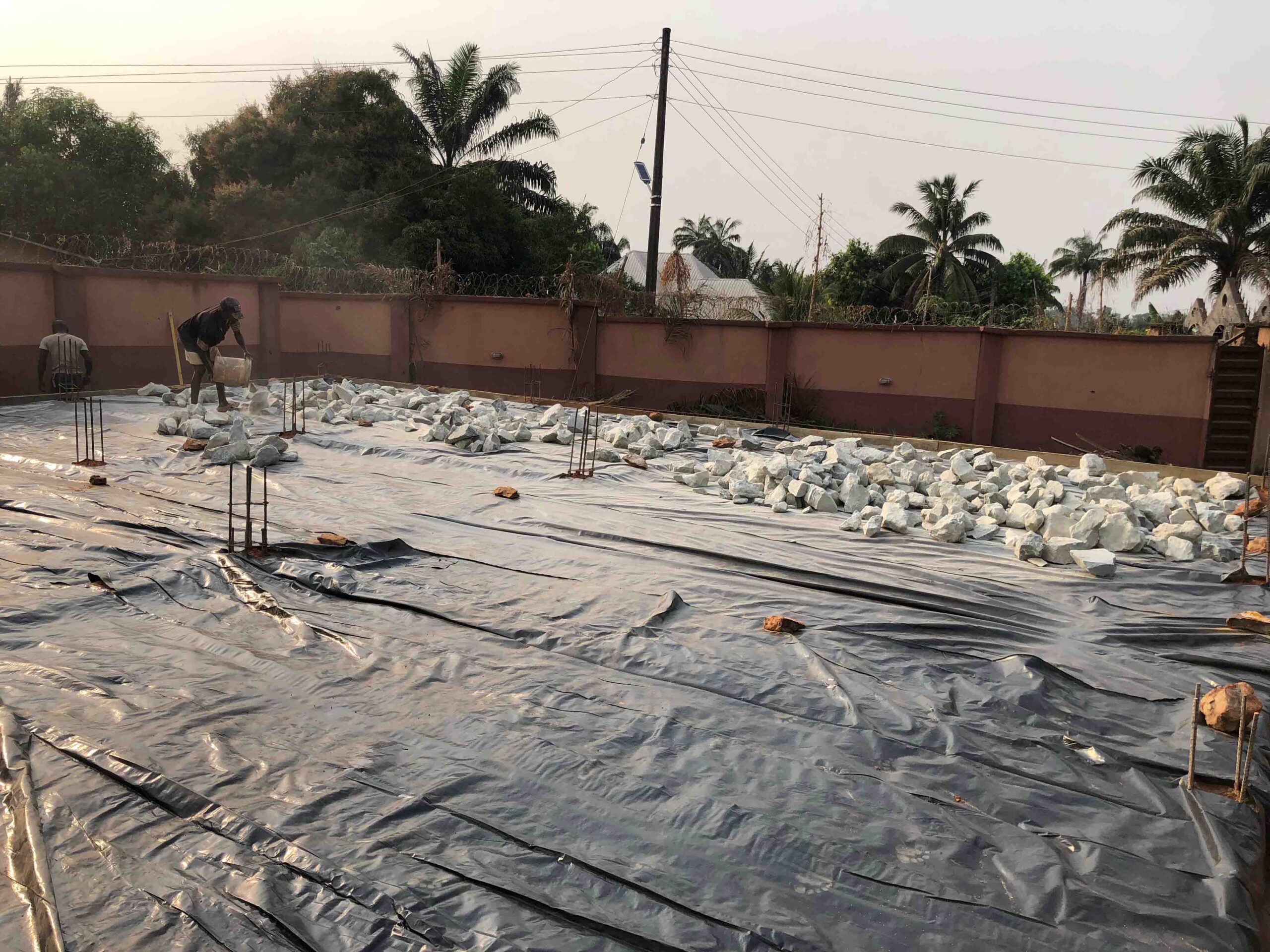

Placement of Hardcore

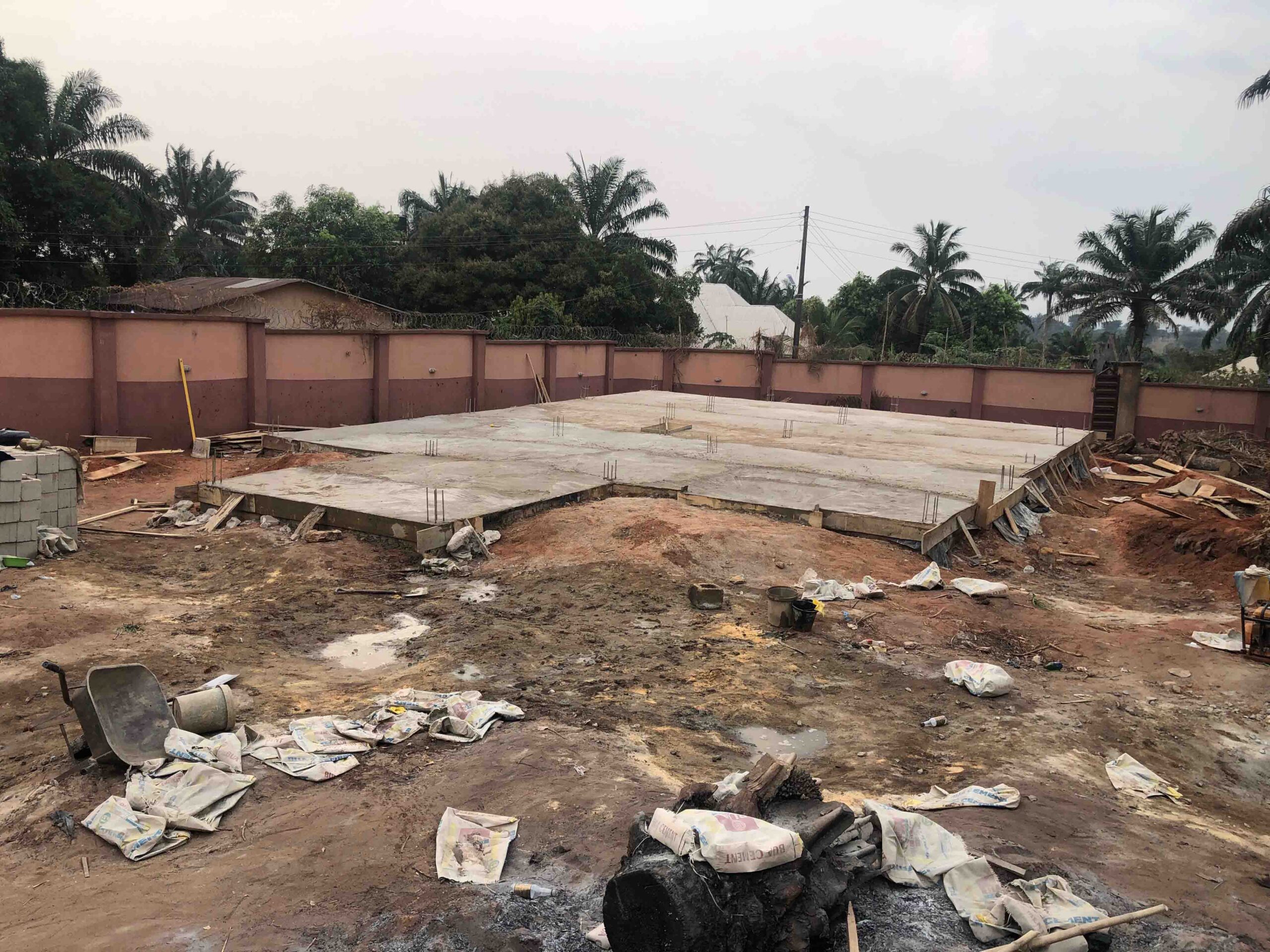

Casting of Concrete Slab

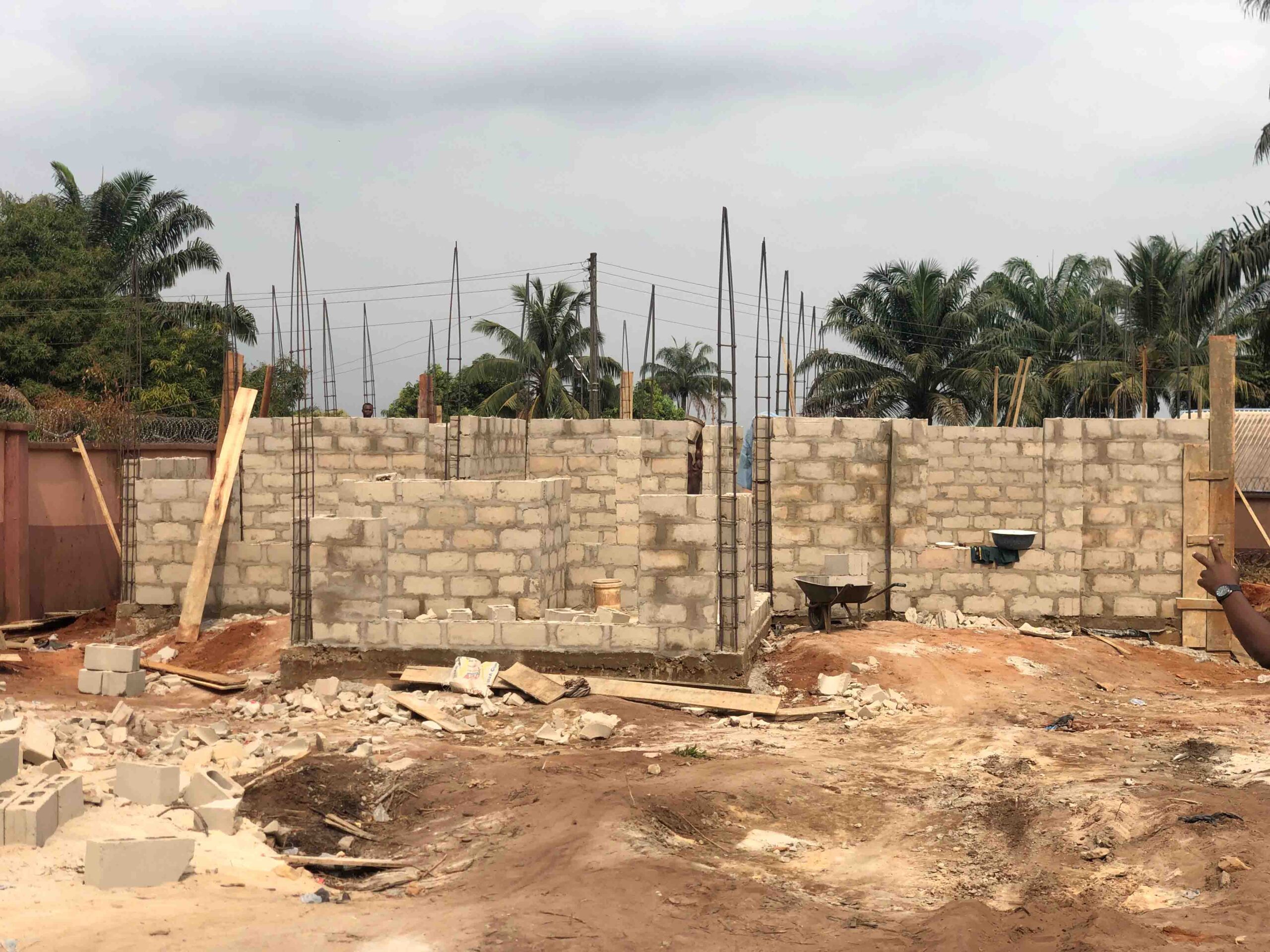

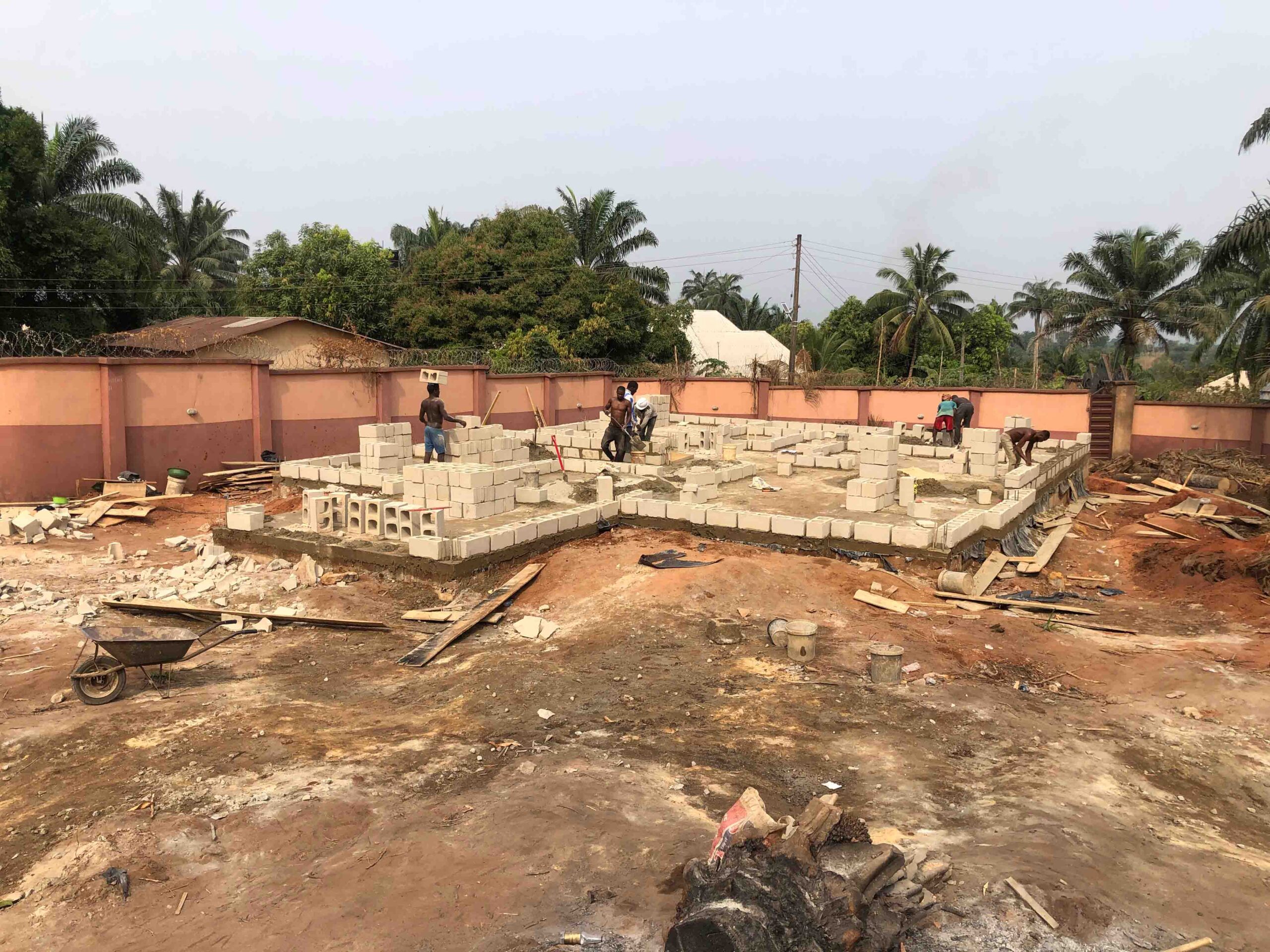

Blockwork to Lintel Level

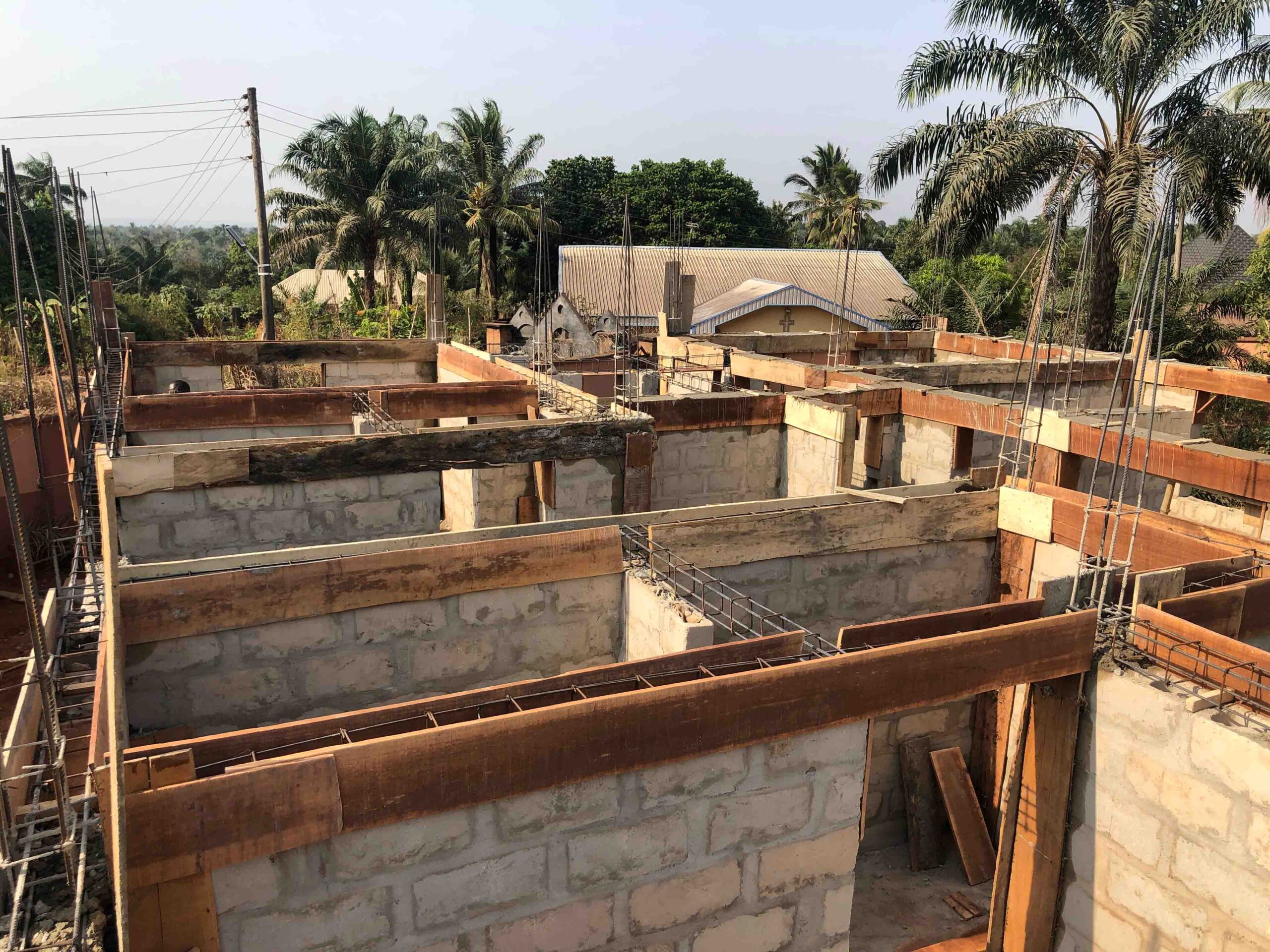

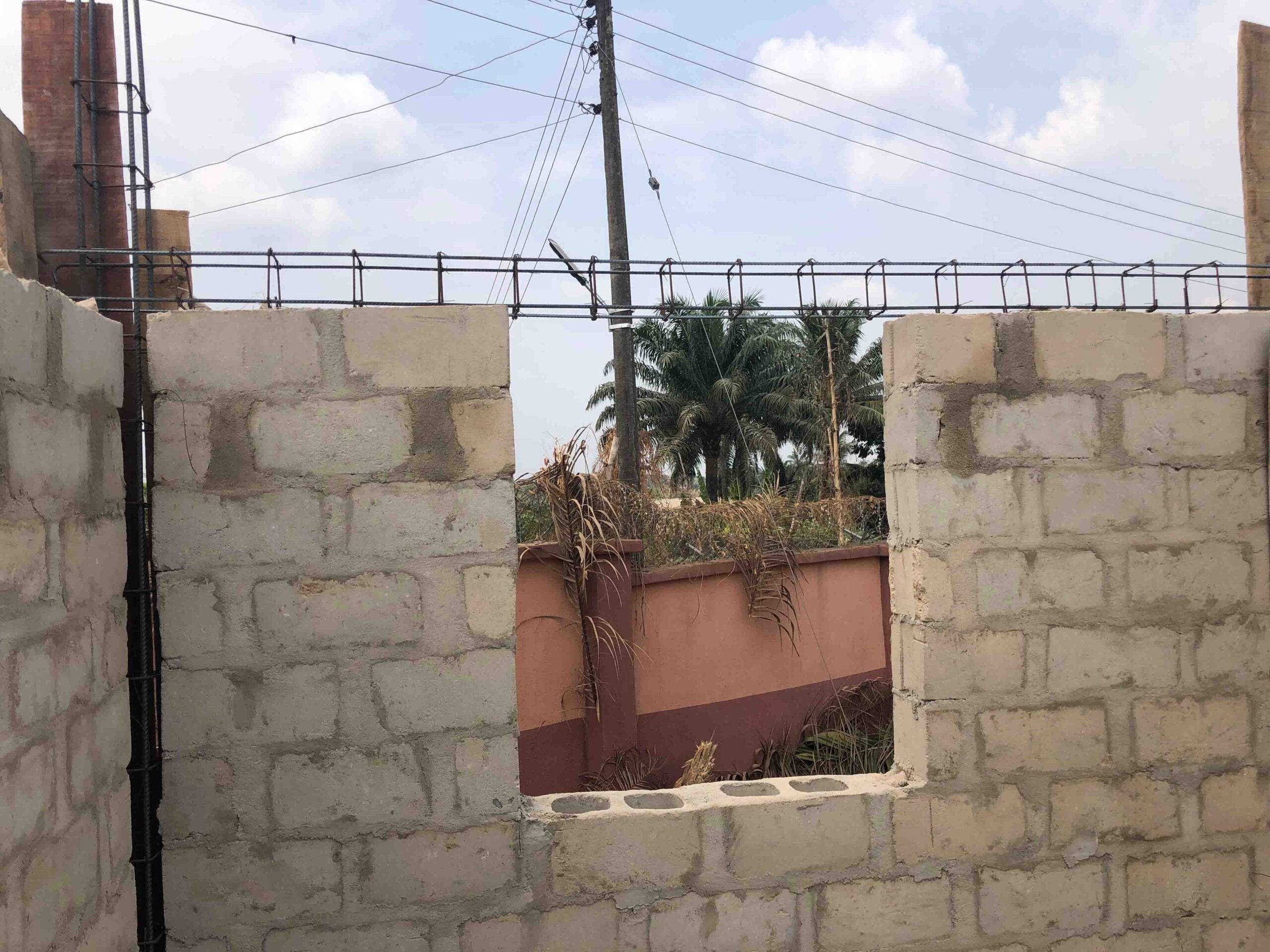

Reinforcement at Lintel Level

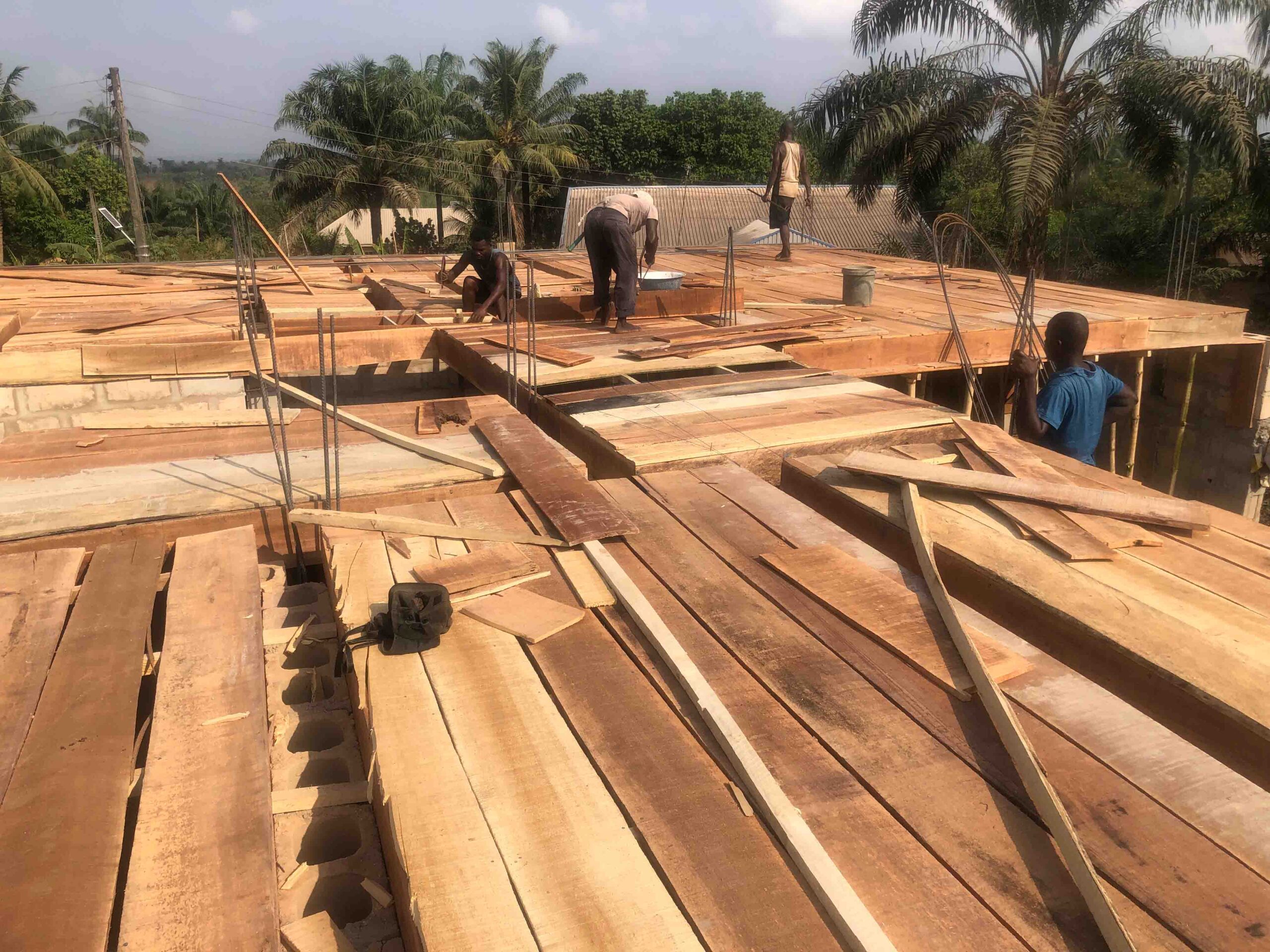

Formwork at Floor Slab

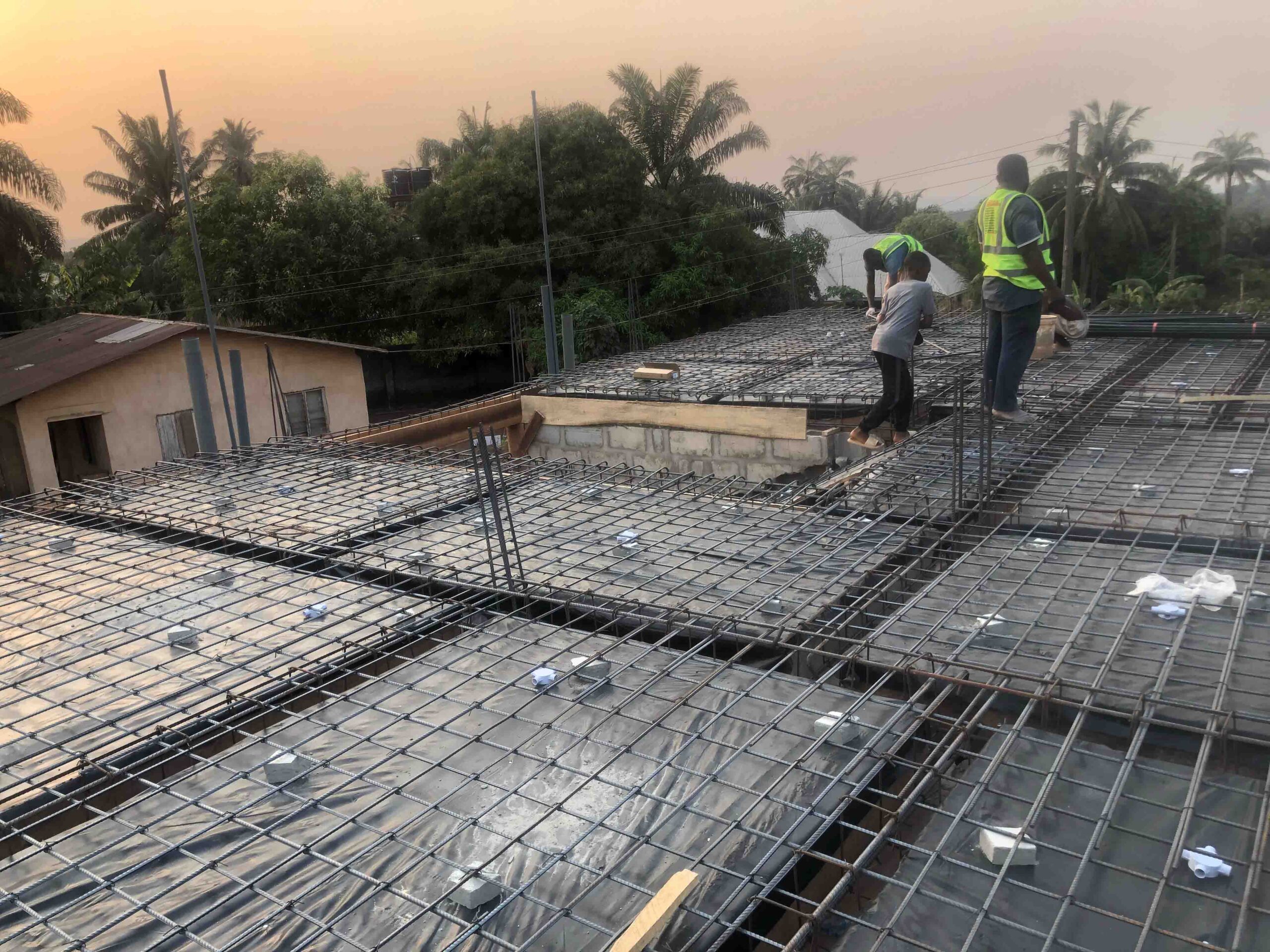

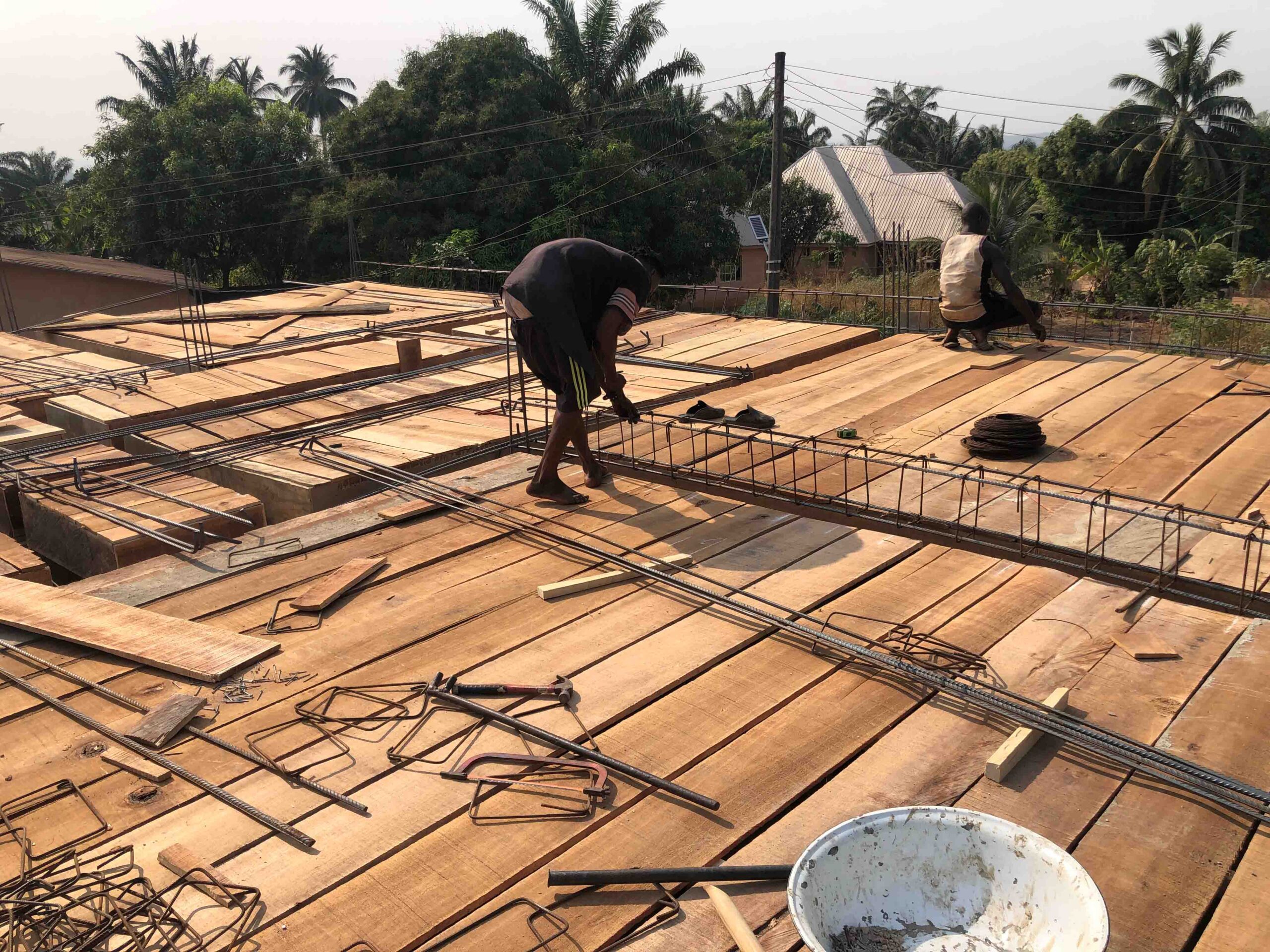

Reinforcement at Floor Slab

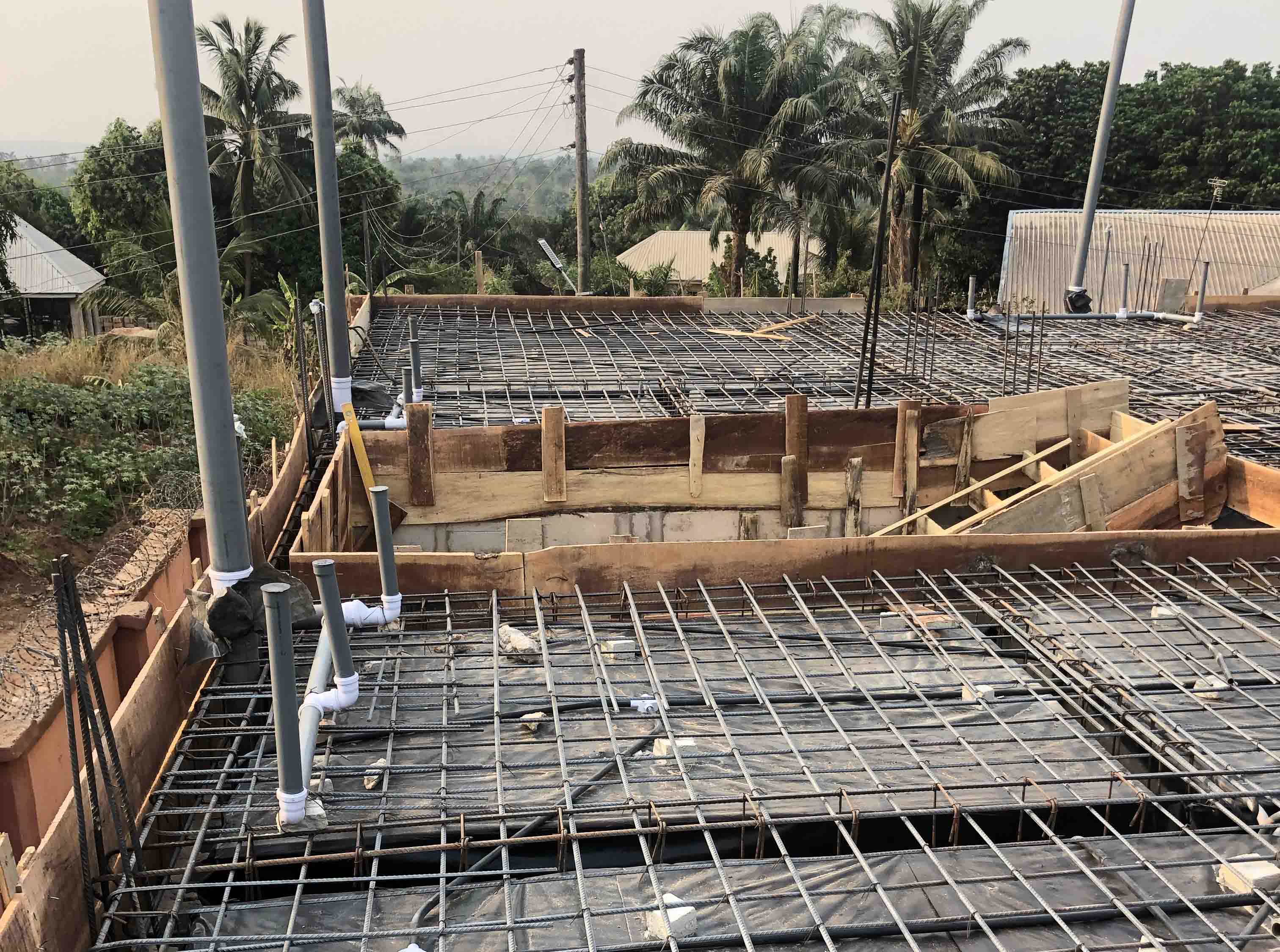

Conduit Work on Floor Slab

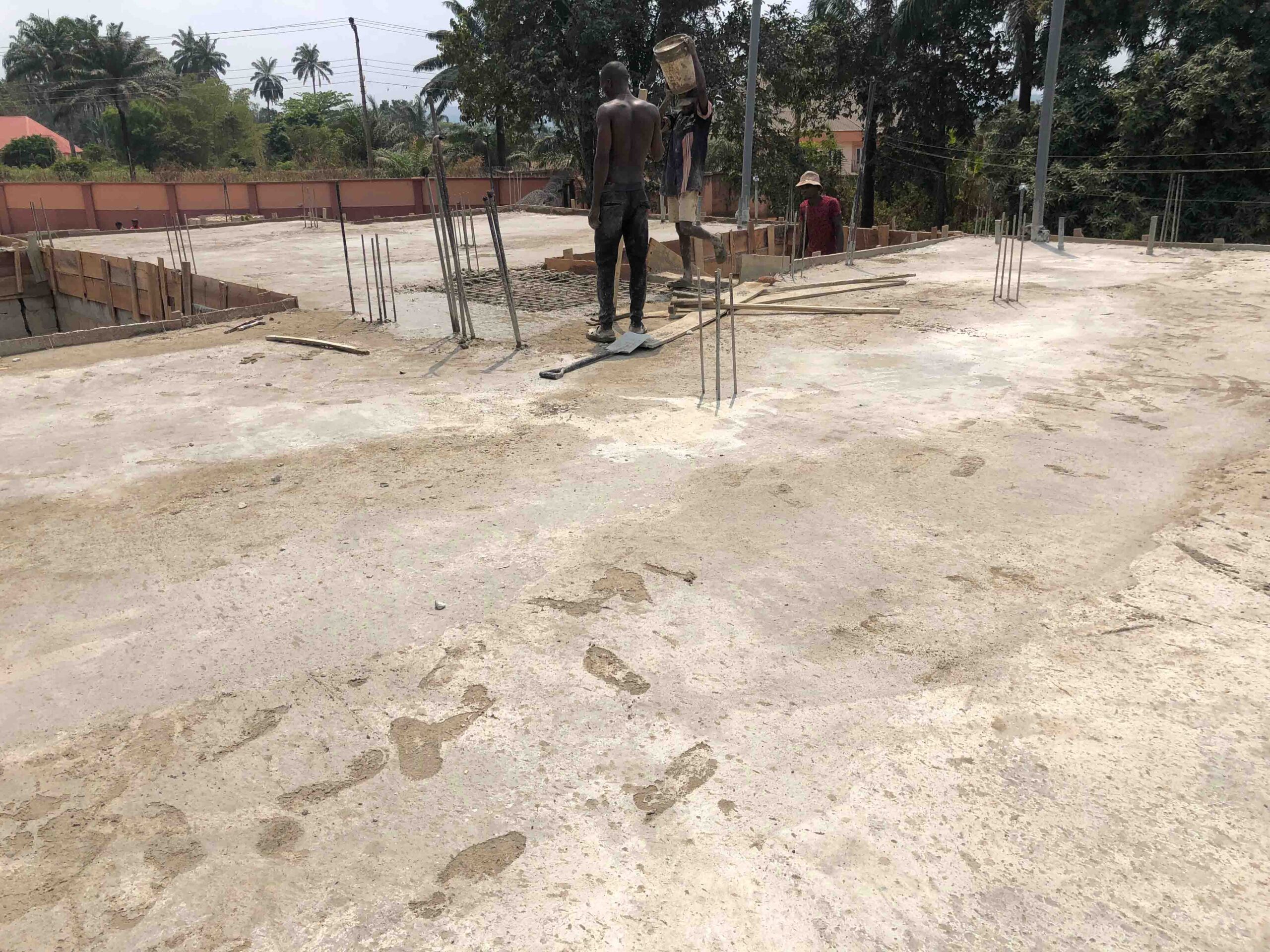

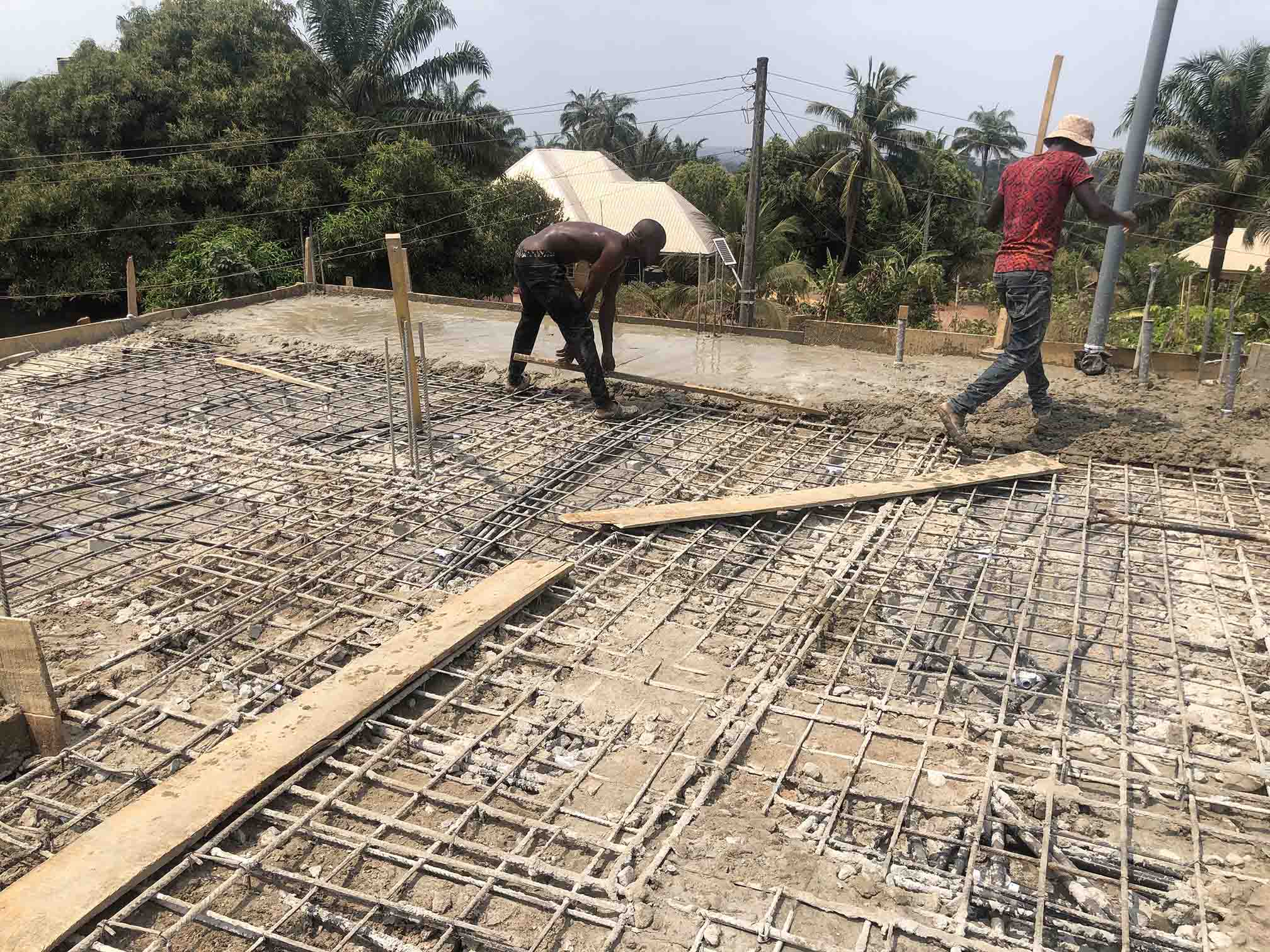

Casting of First Floor Slab

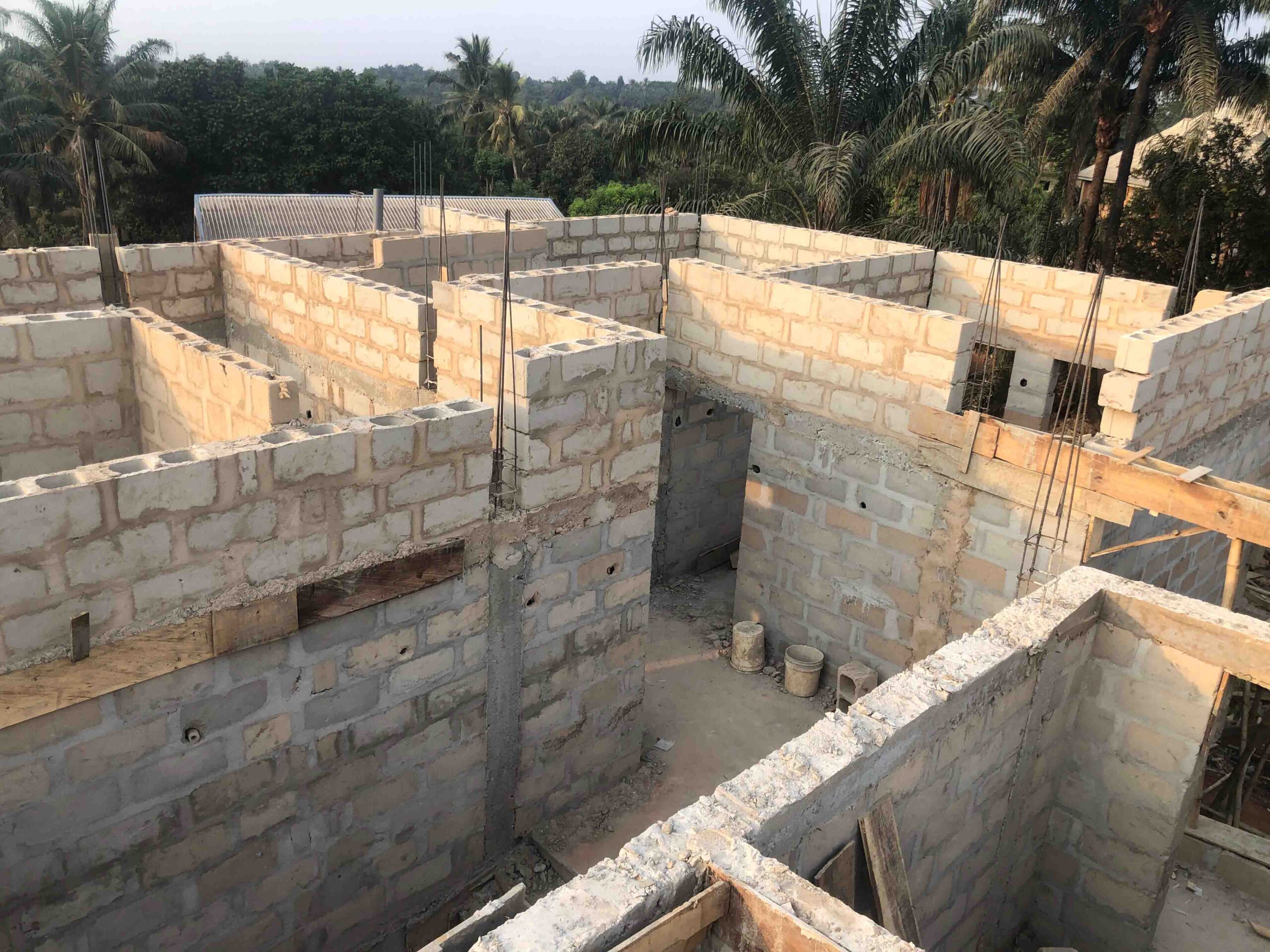

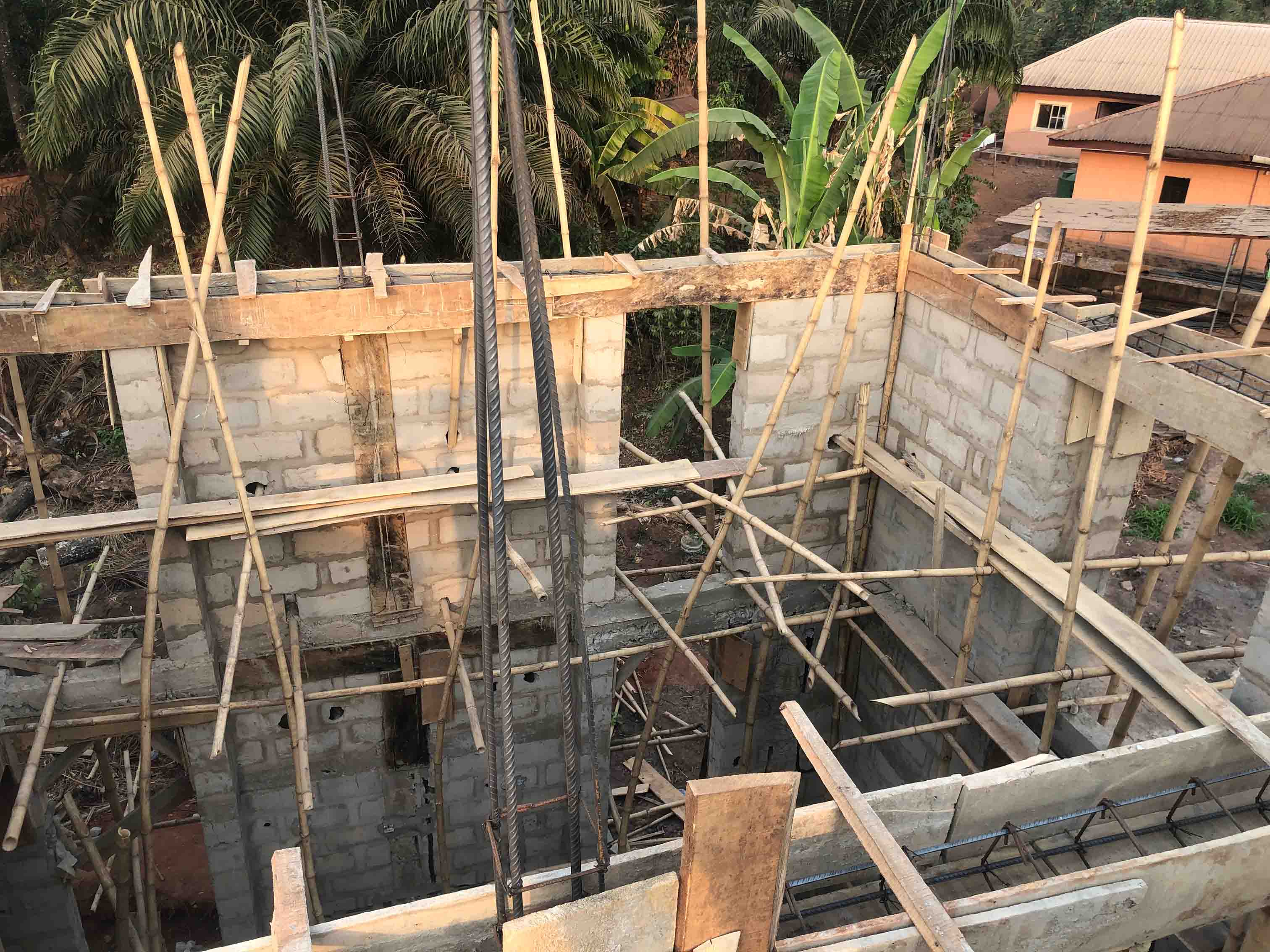

Blockwork to Roof Beam

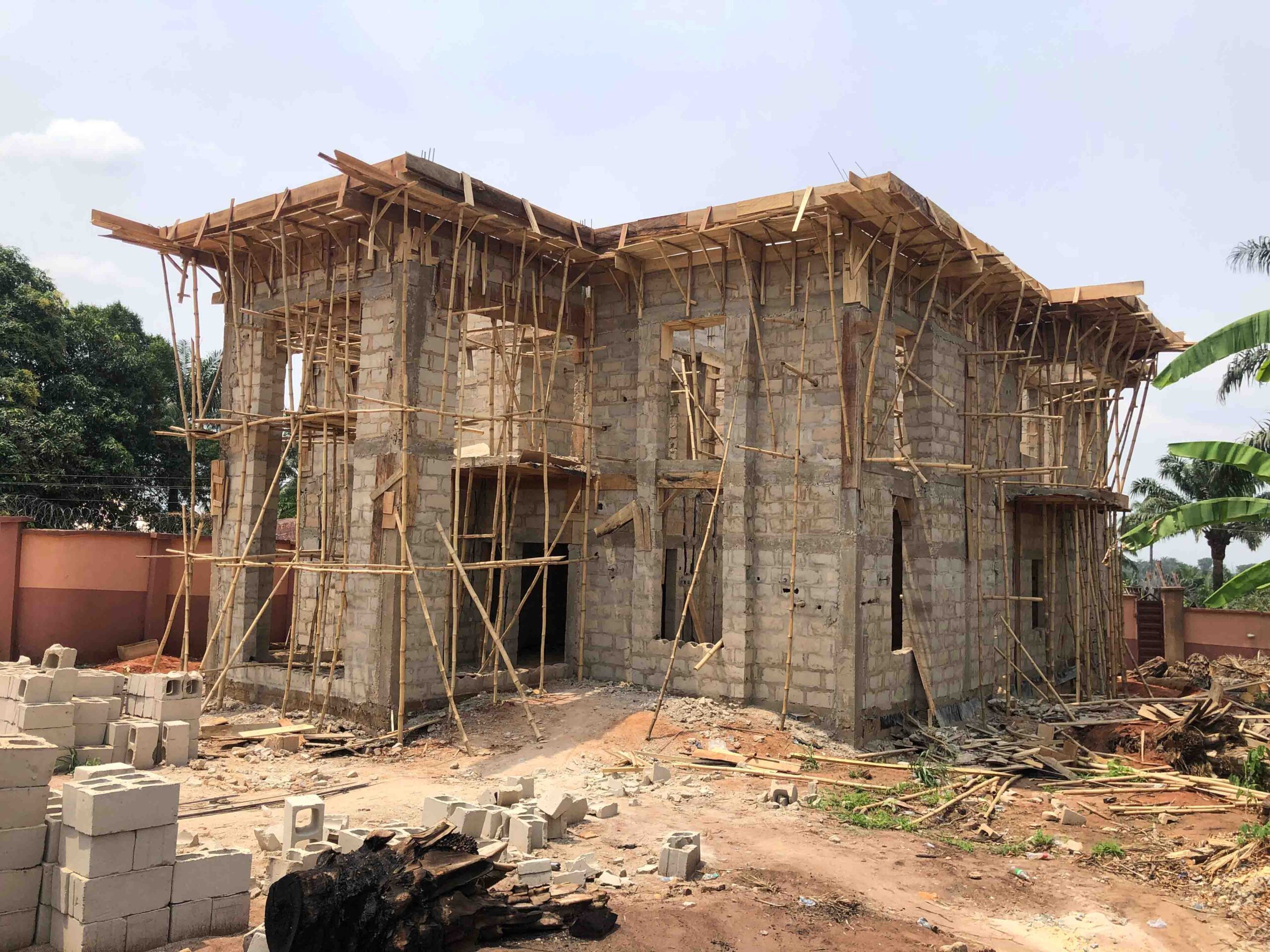

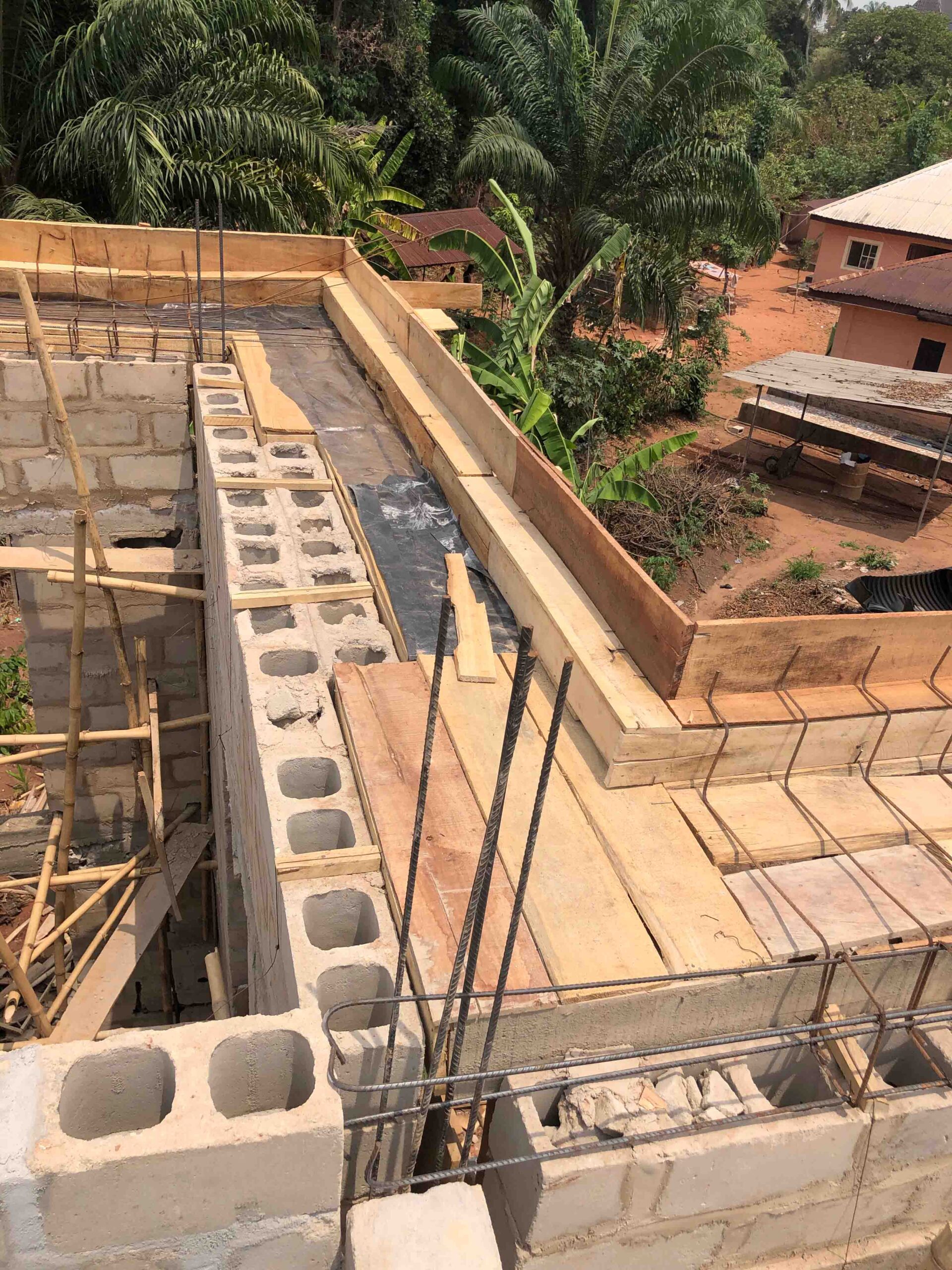

Formwork on Concrete Fascia

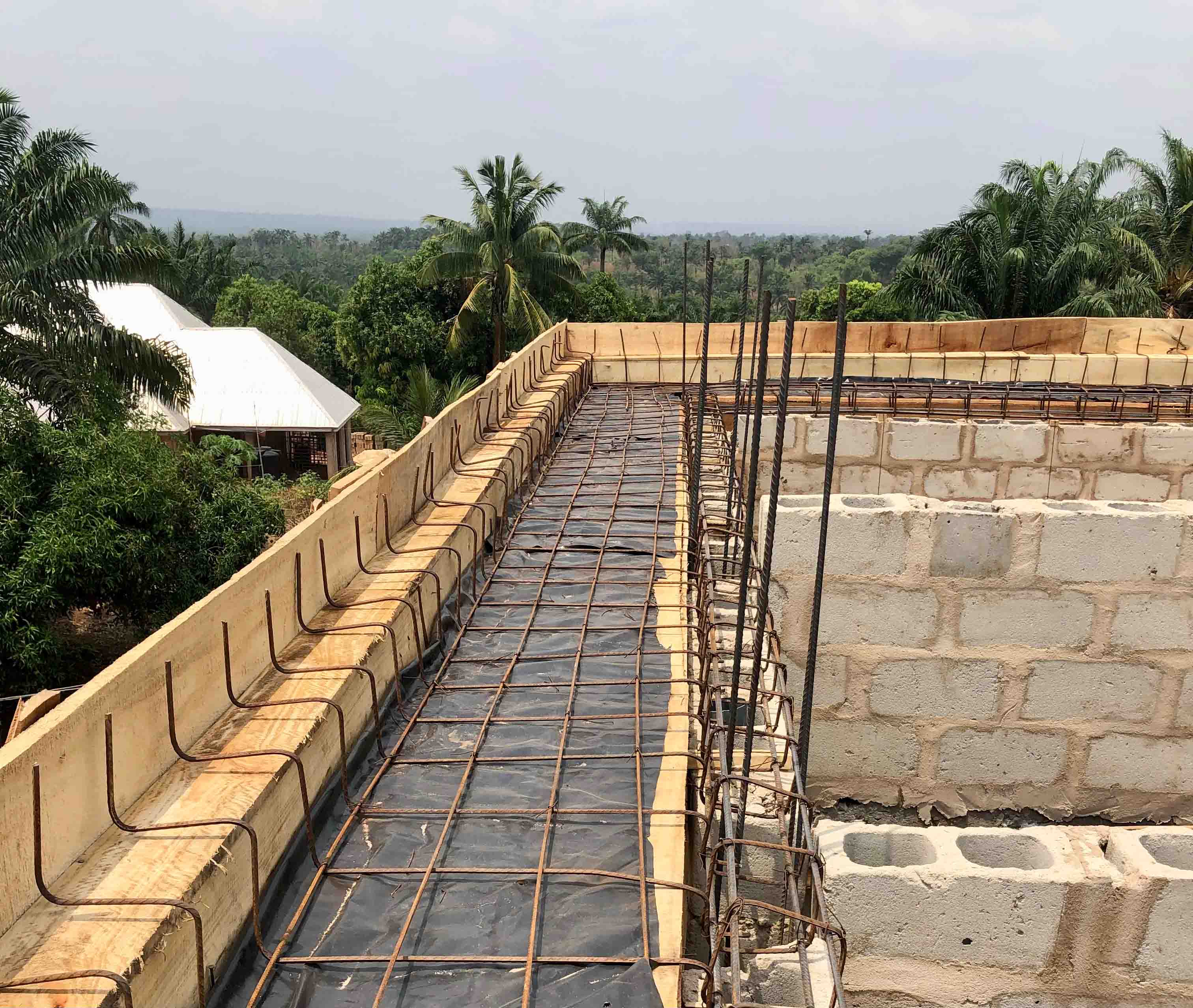

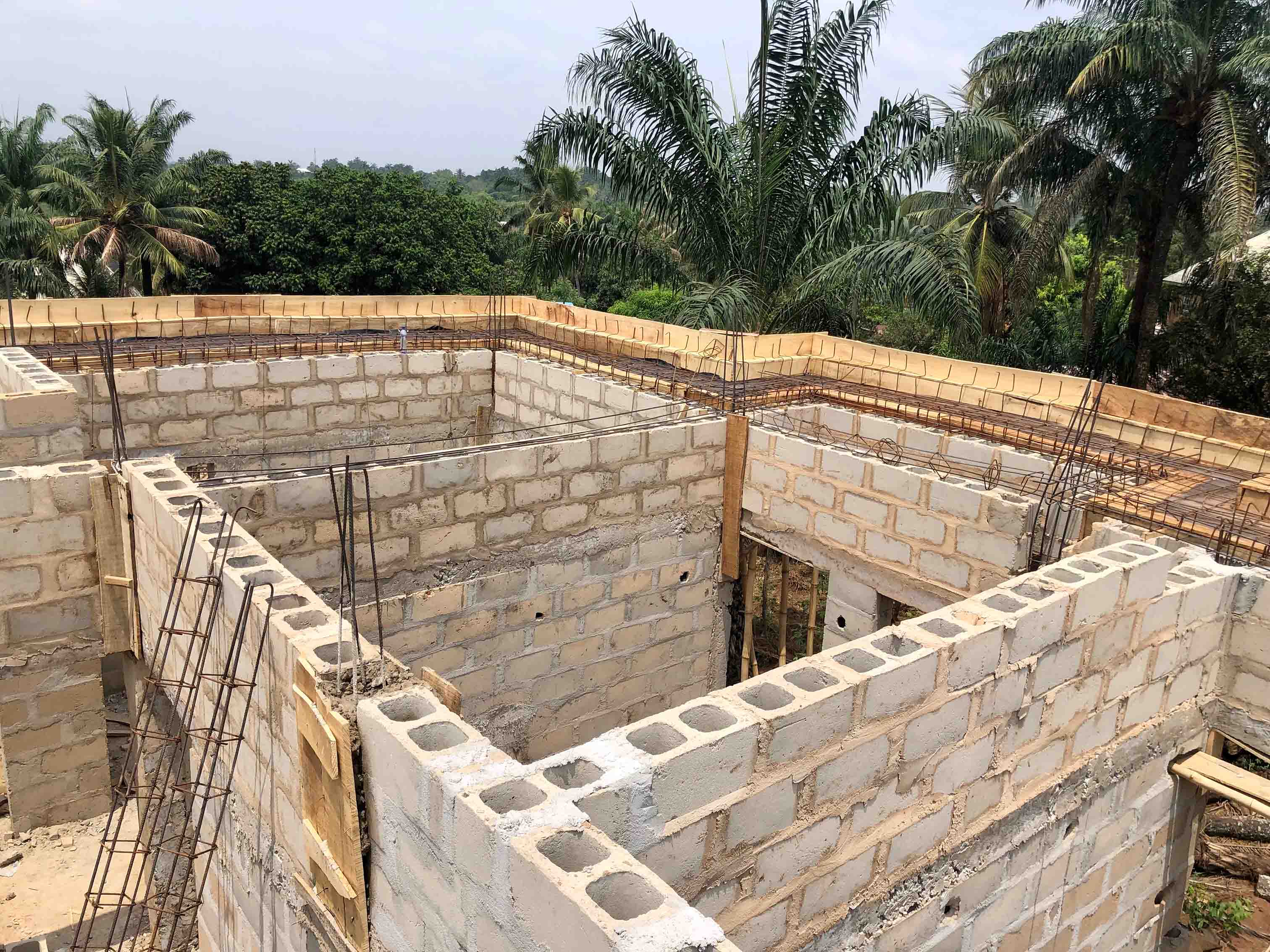

Reinforcement on Concrete Fascia

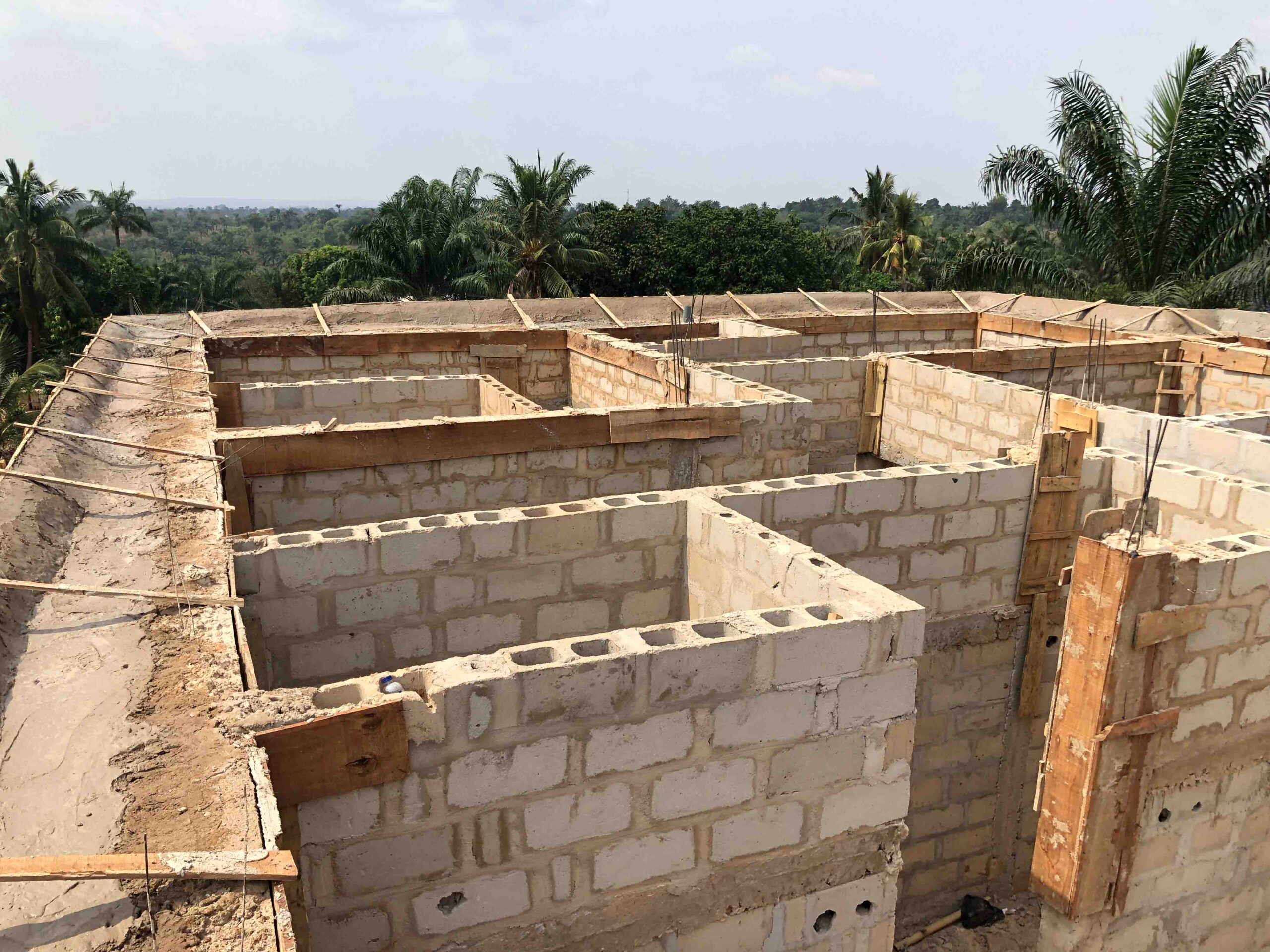

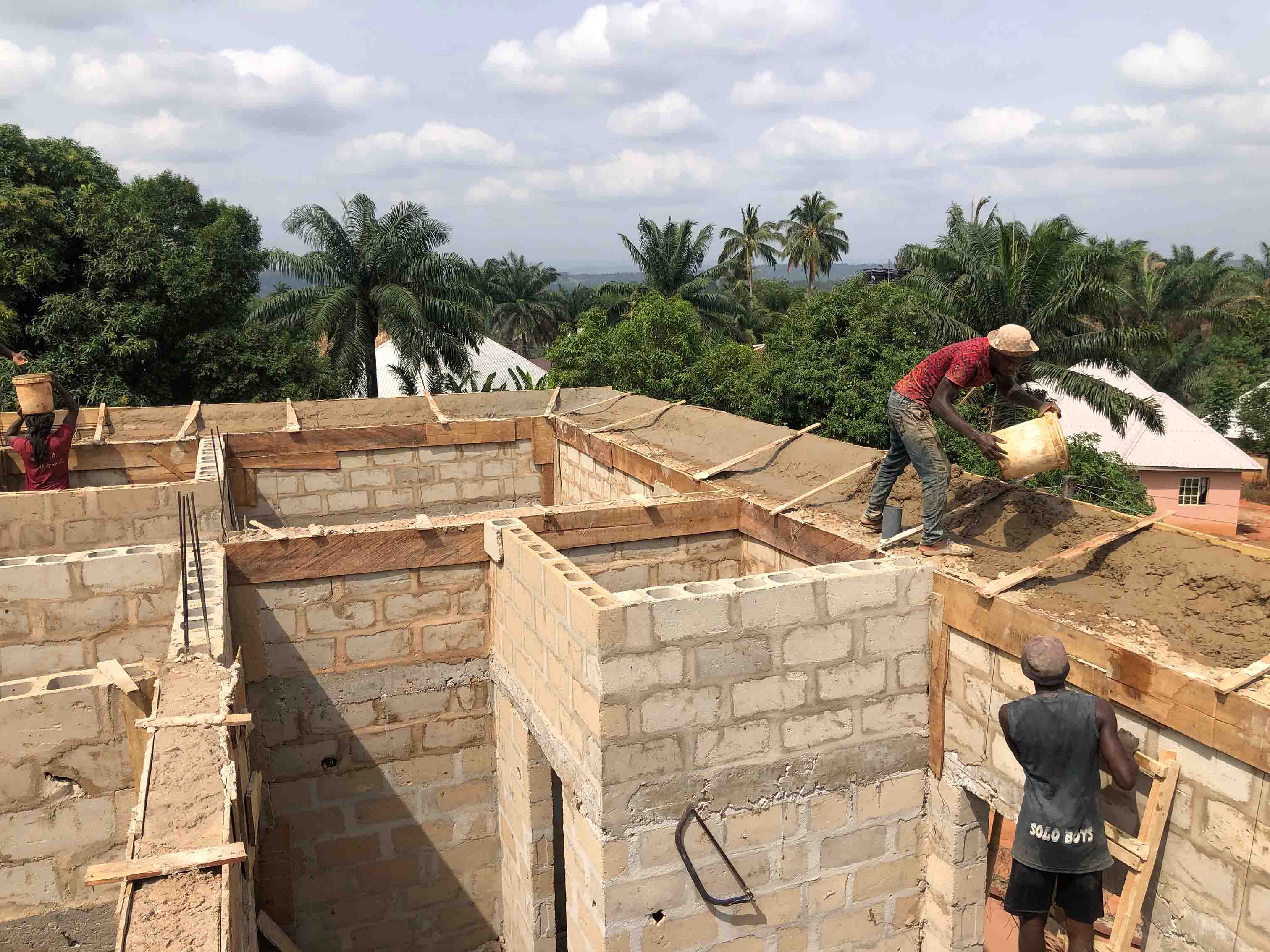

Casting of Concrete Fascia

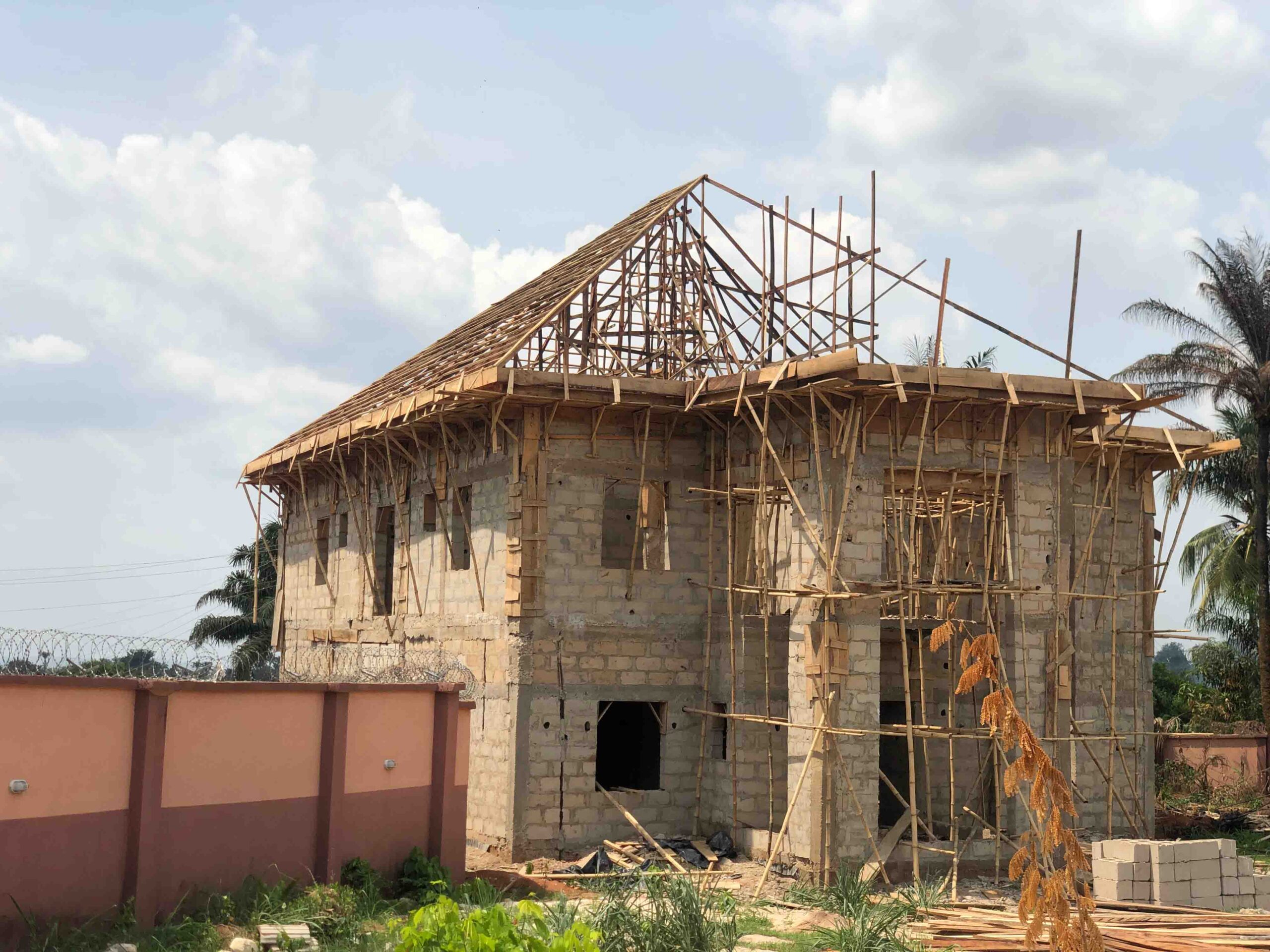

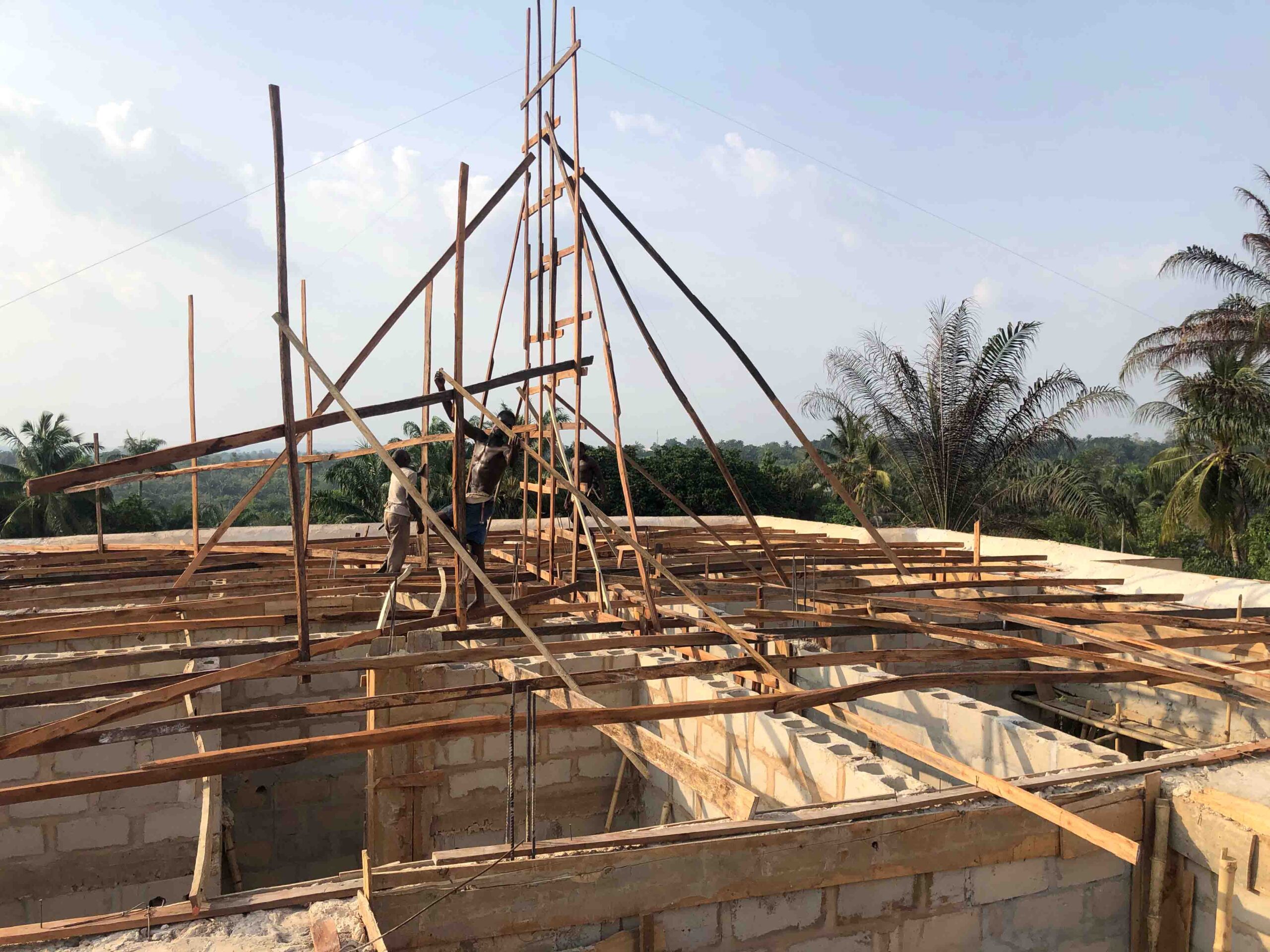

Roof Carcass

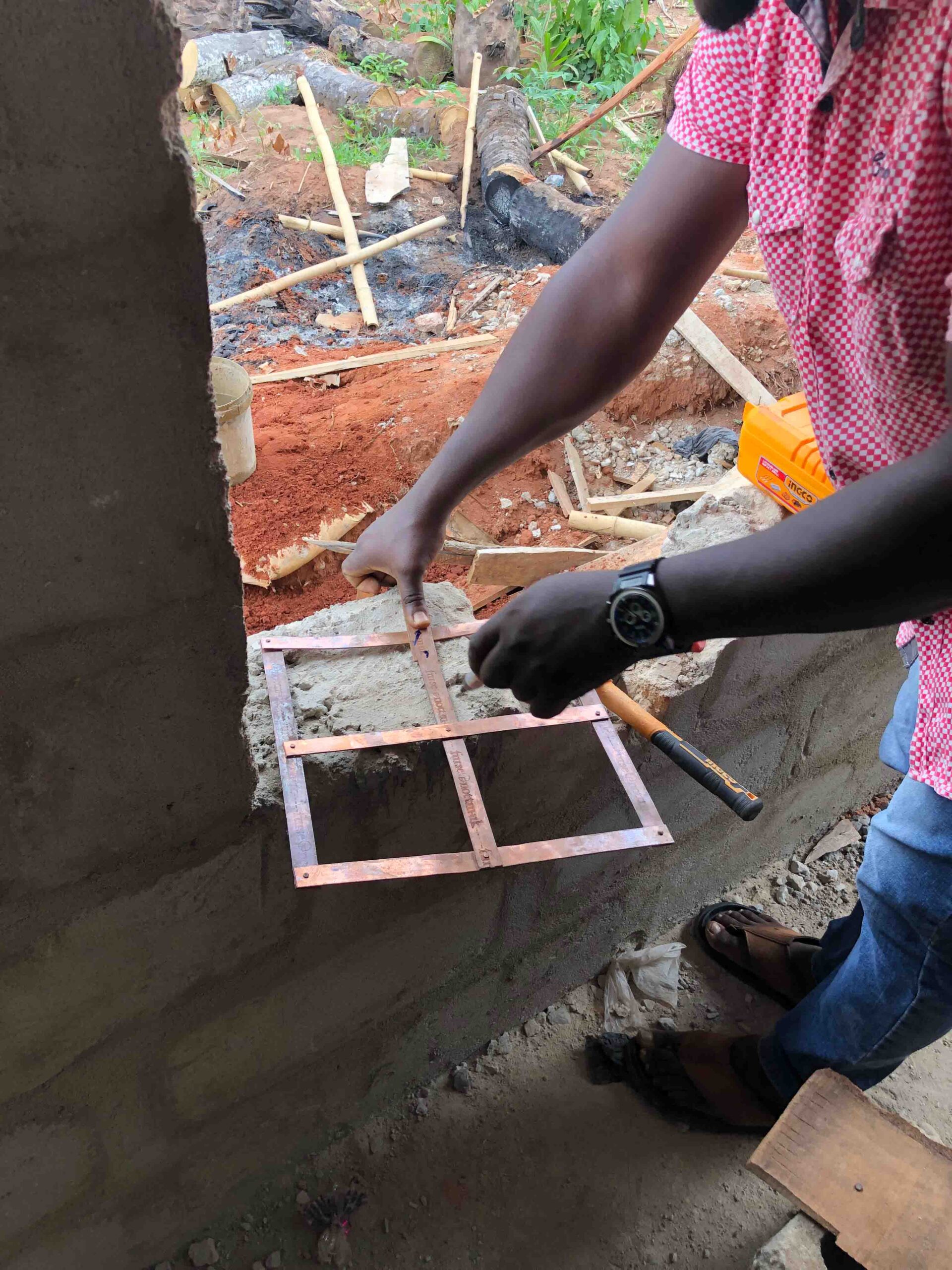

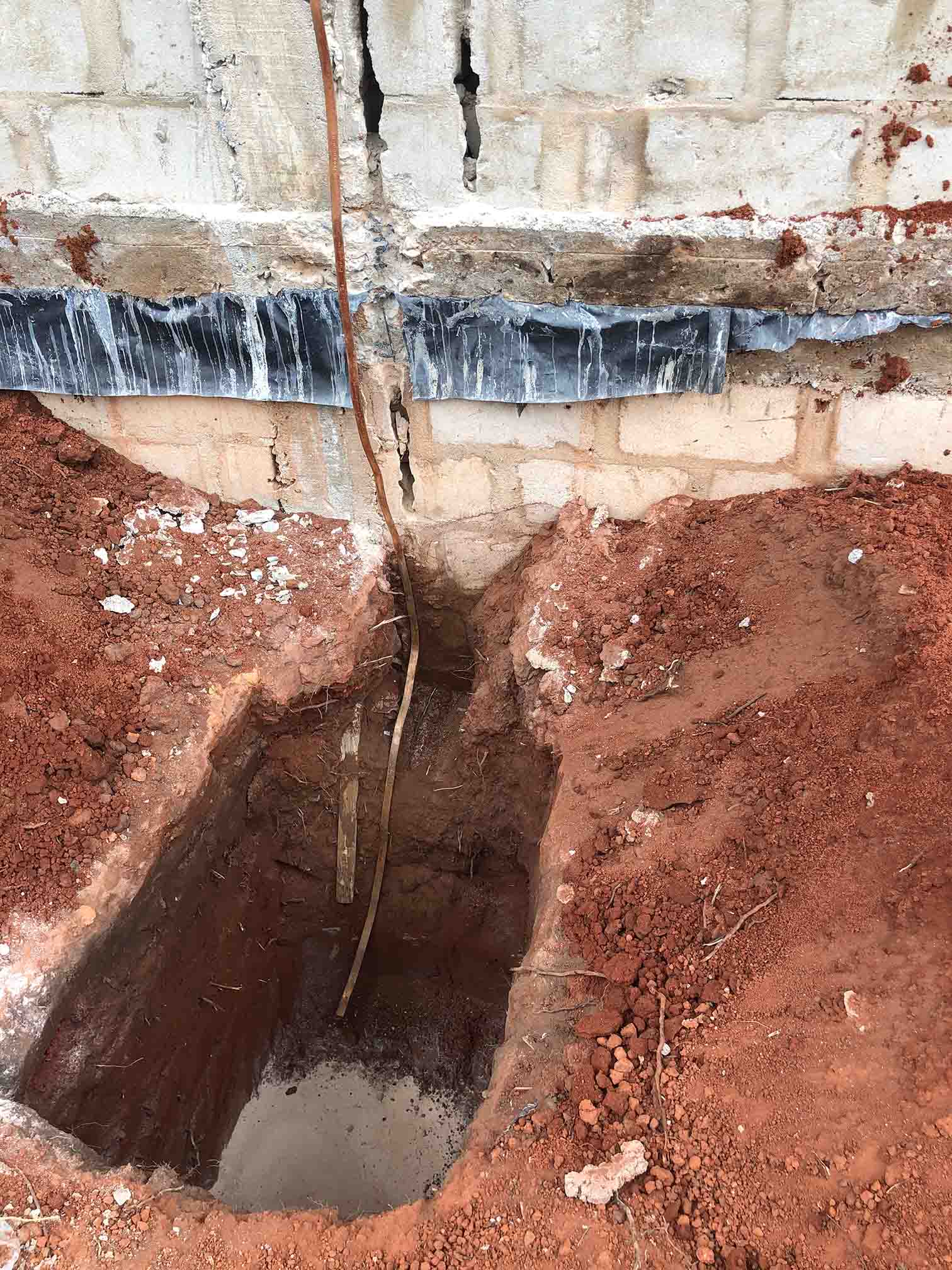

Thunder Arrestors Installation

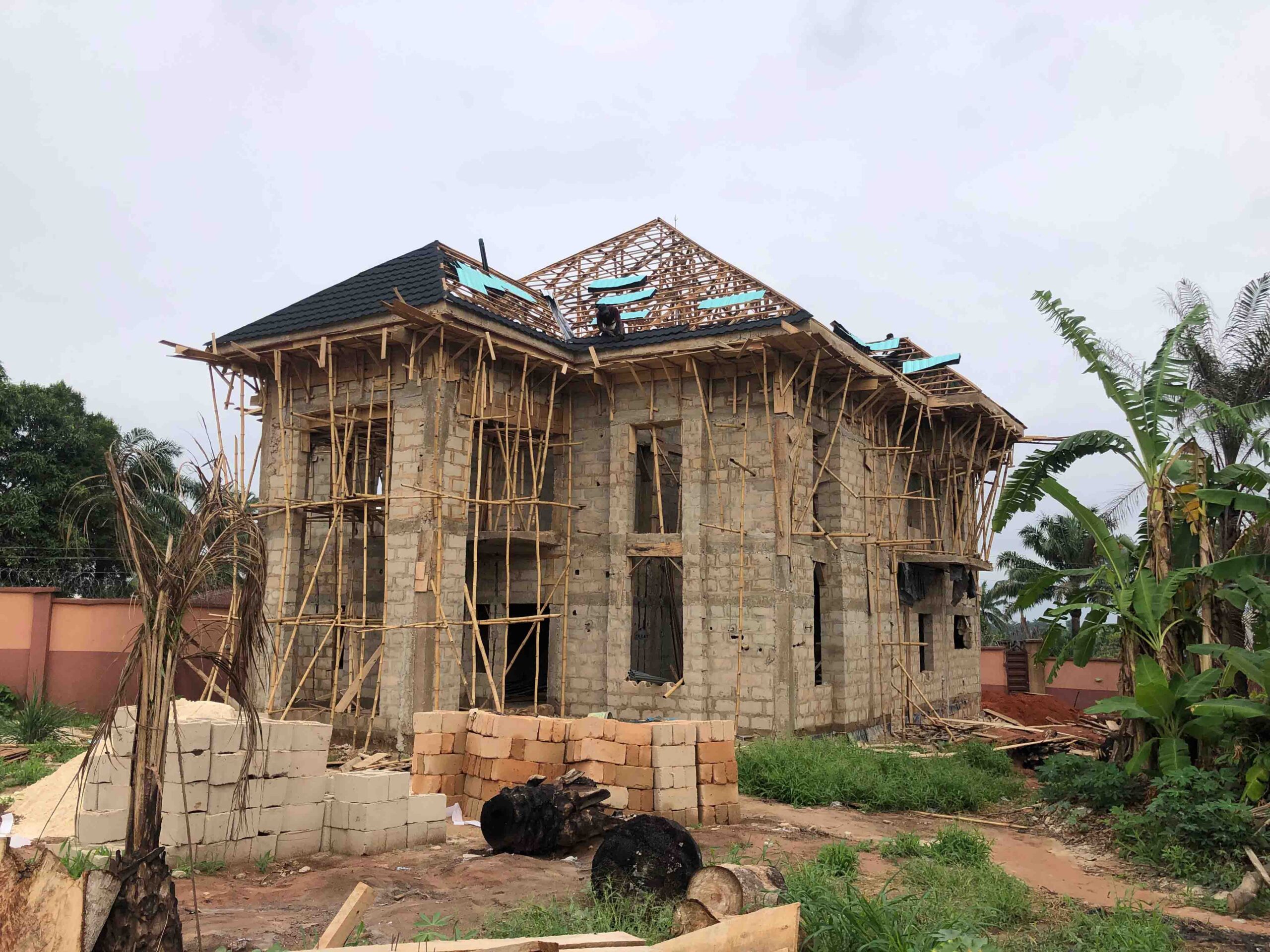

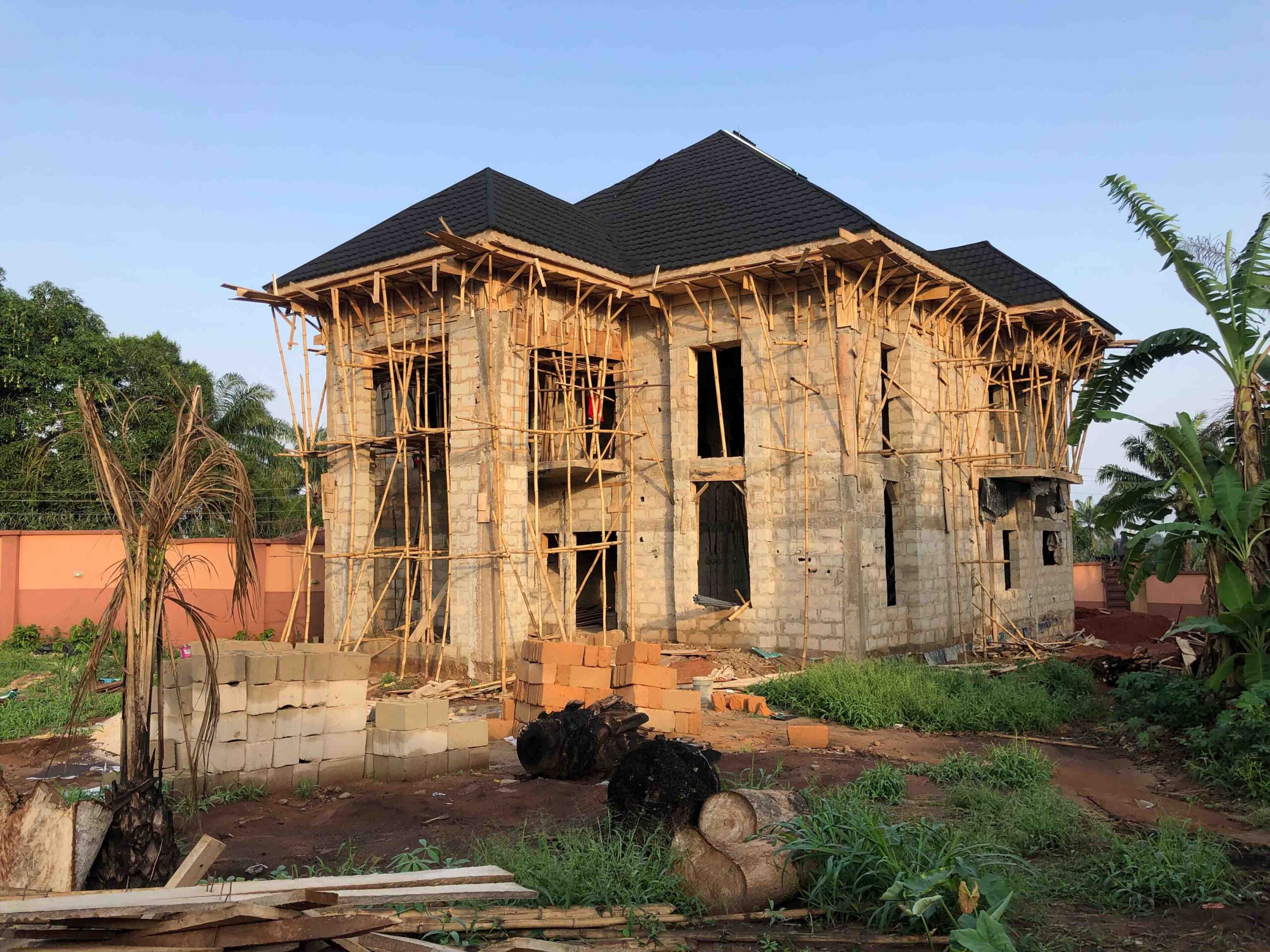

Roof Installation
0.55-gauge Milano stone-coated roofing sheets on well-seasoned wooden trusses, supported by a 450mm reinforced concrete fascia.

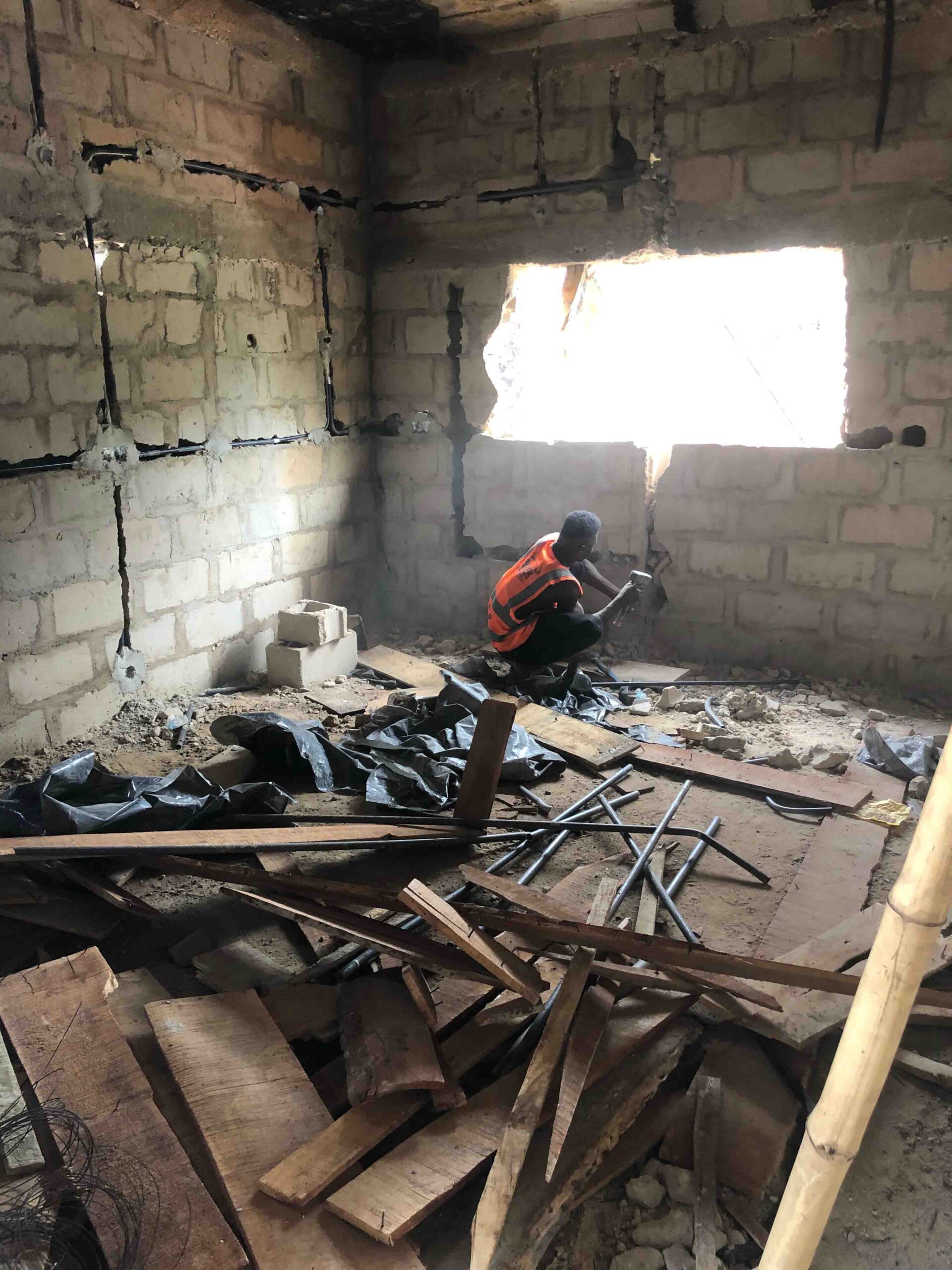

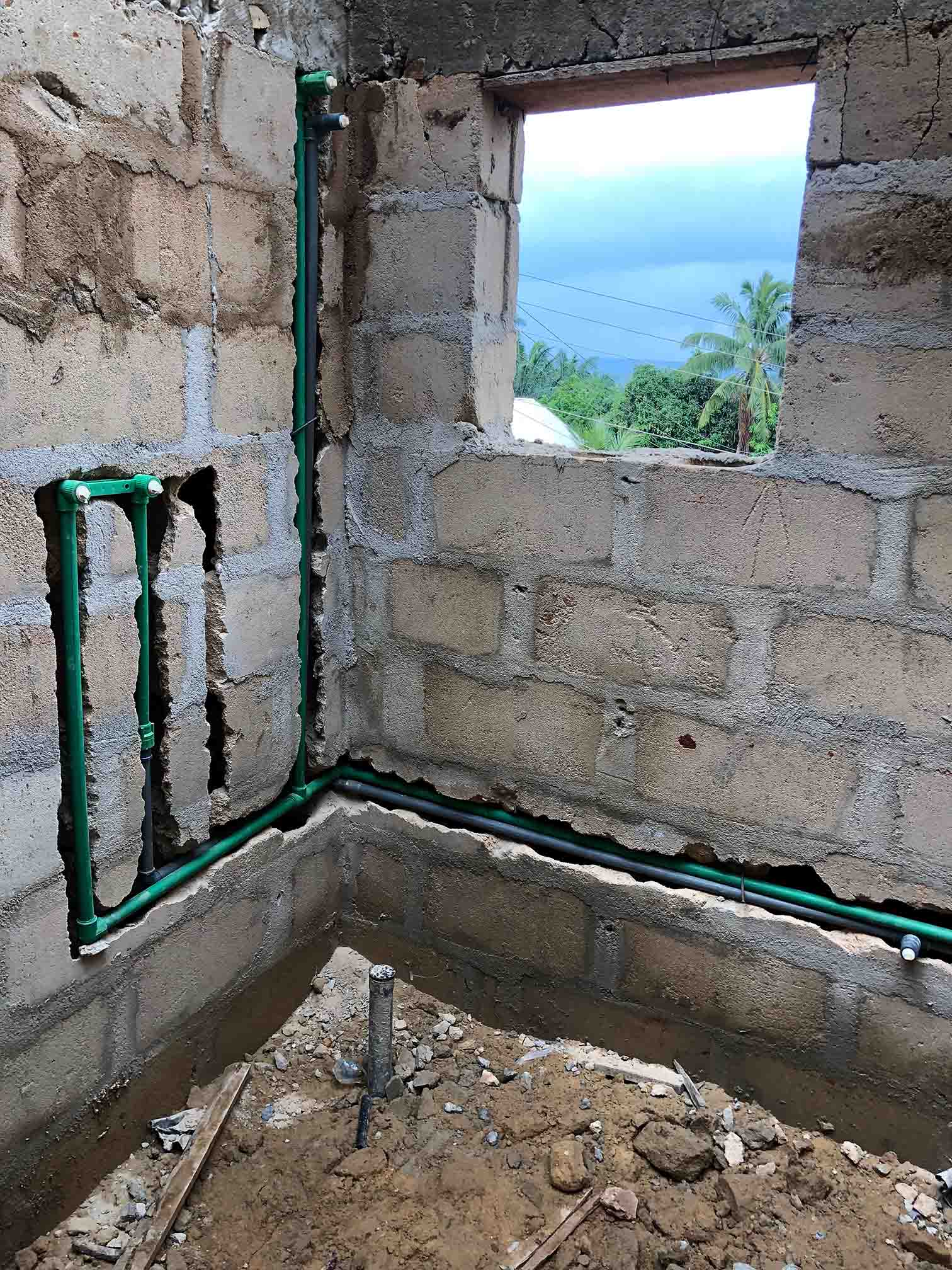

Plumbing Piping

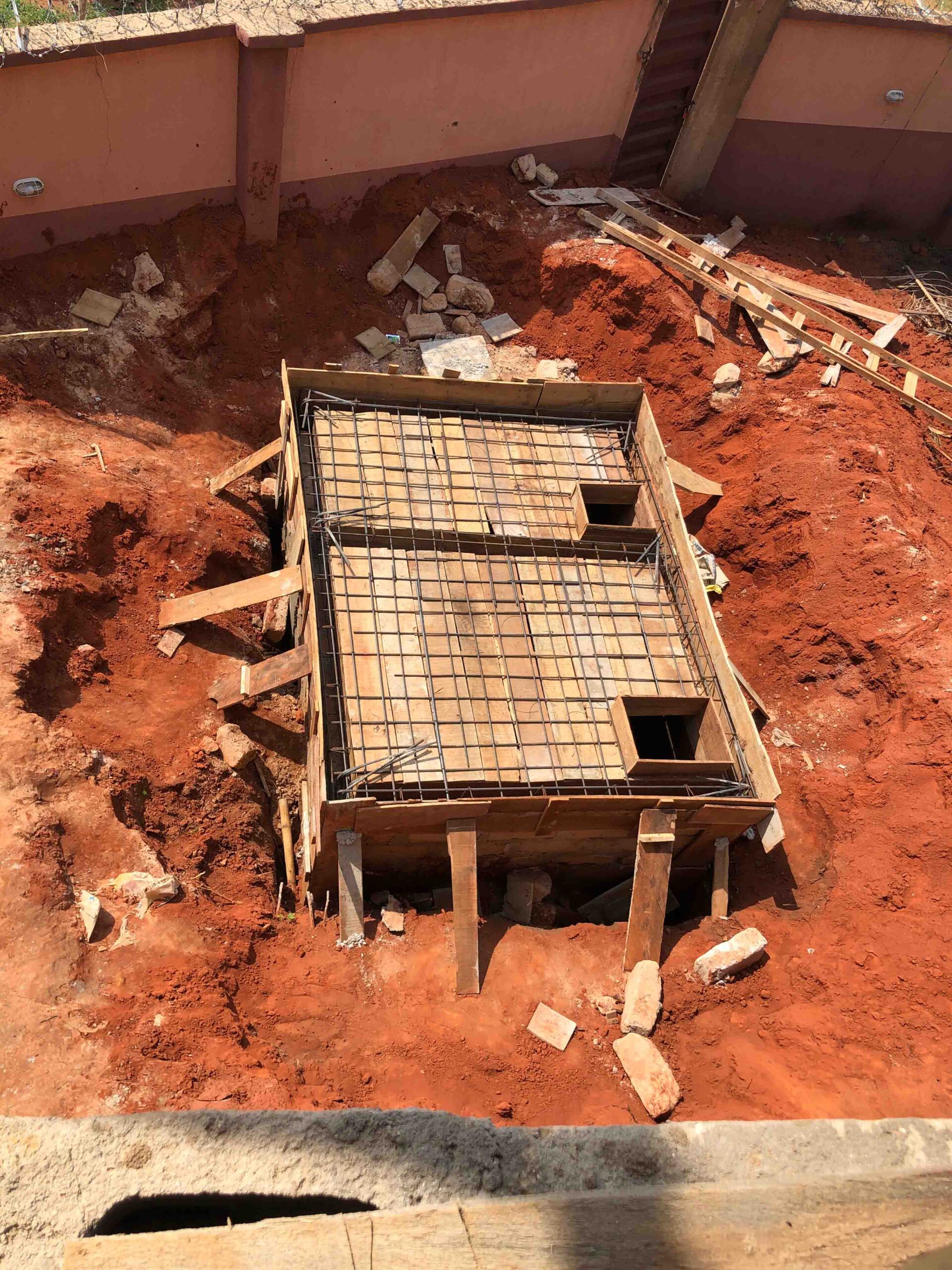

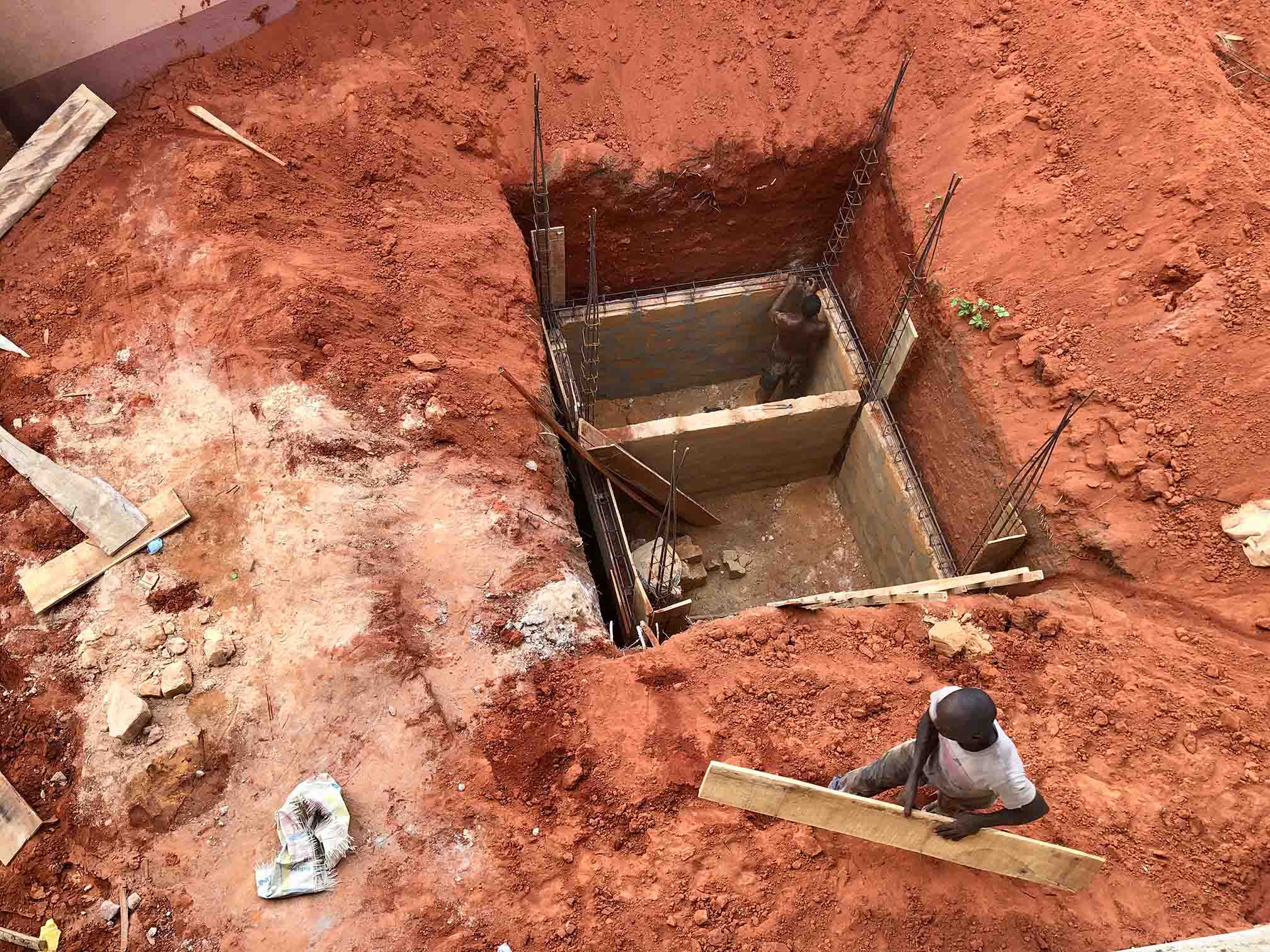

Soak Away Pit

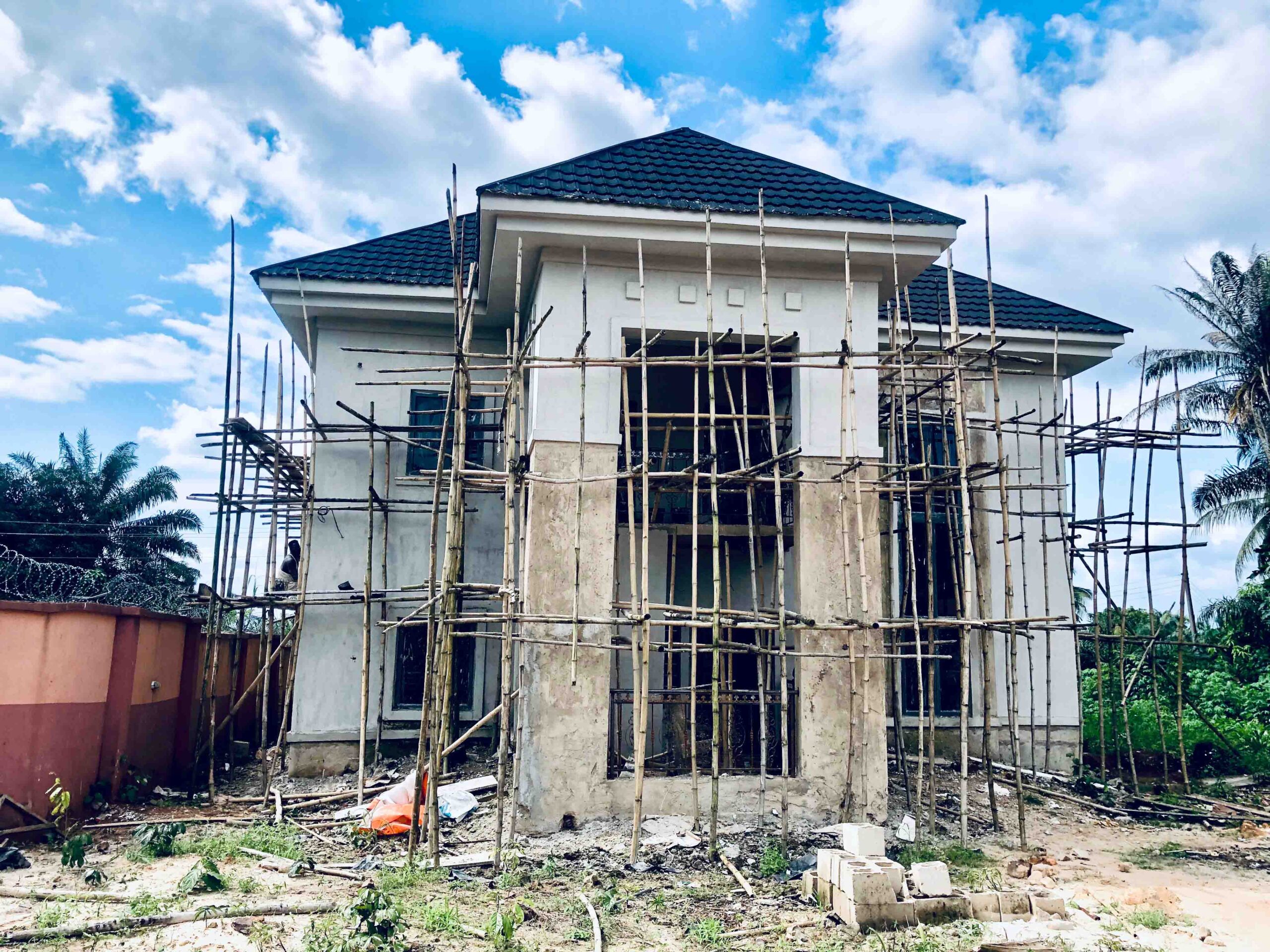

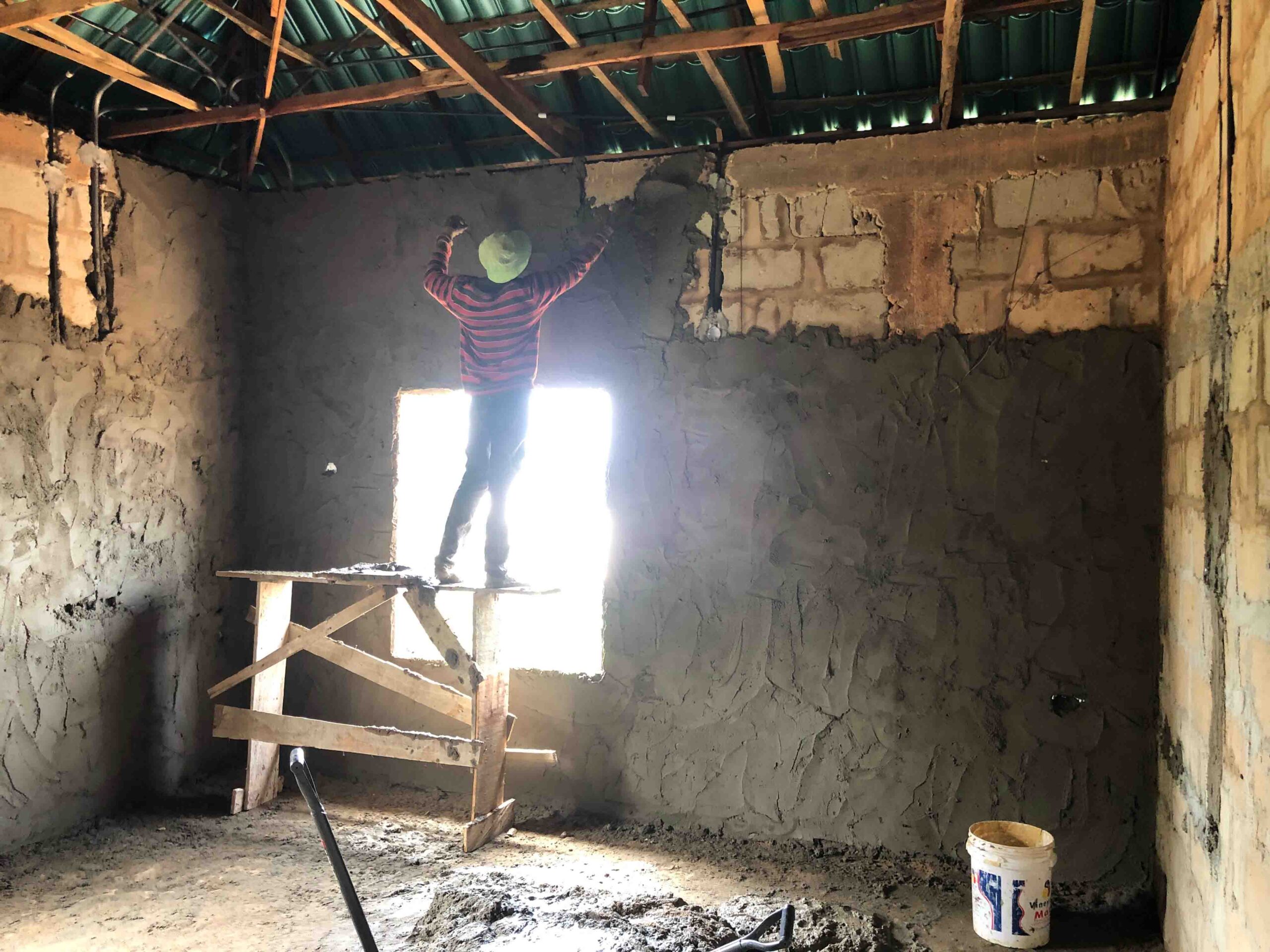

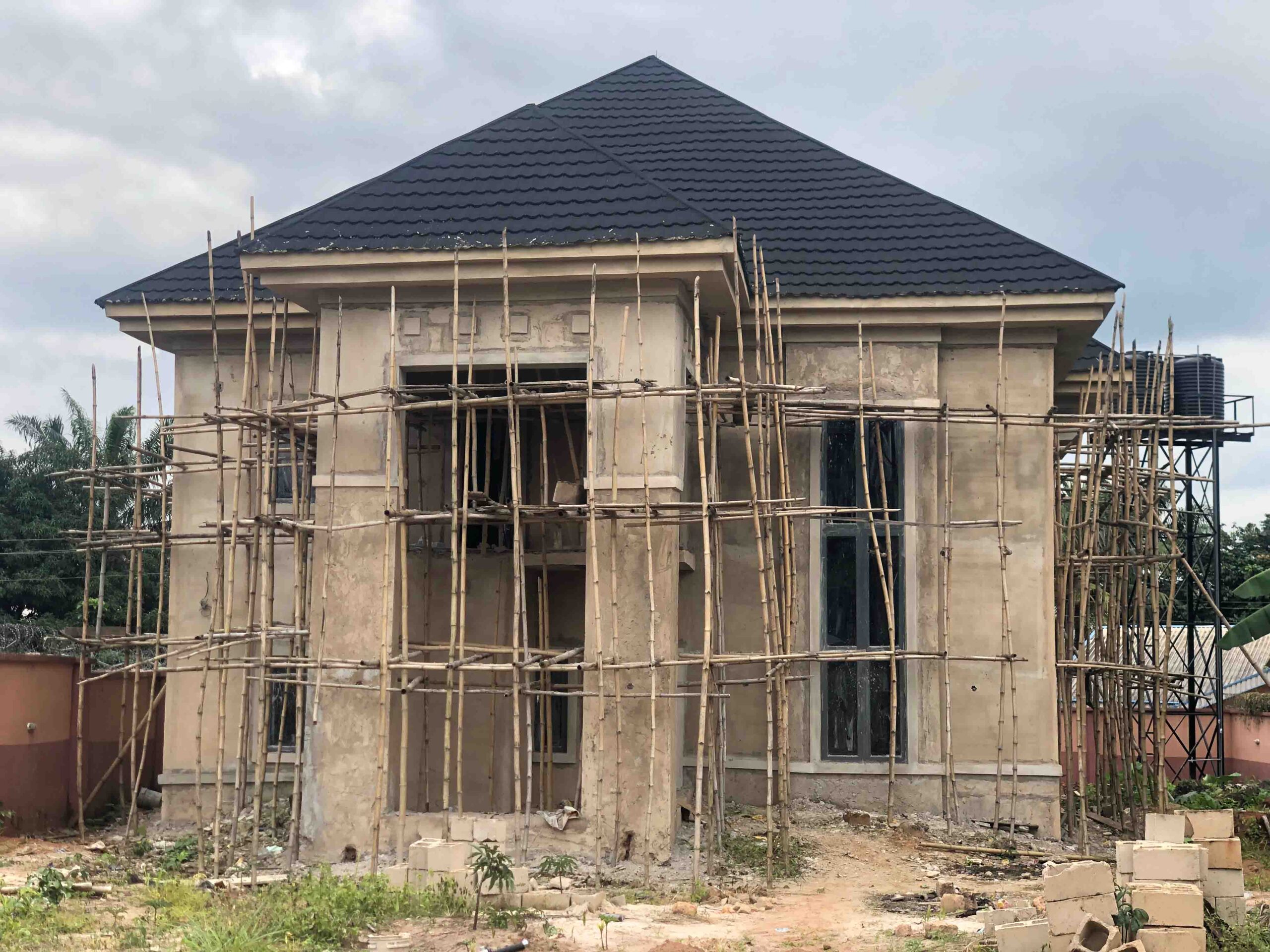

Plastering

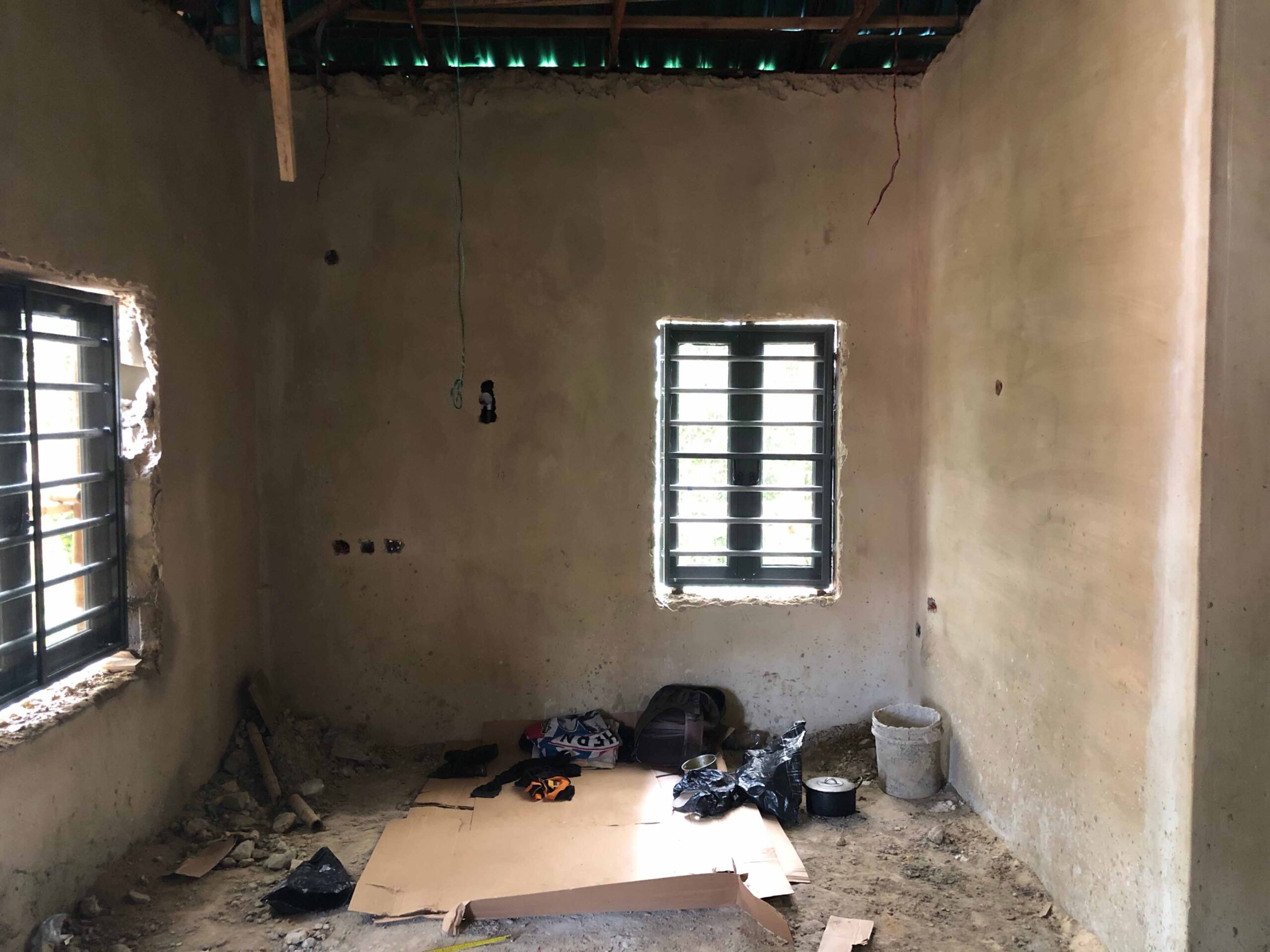

Window Installation

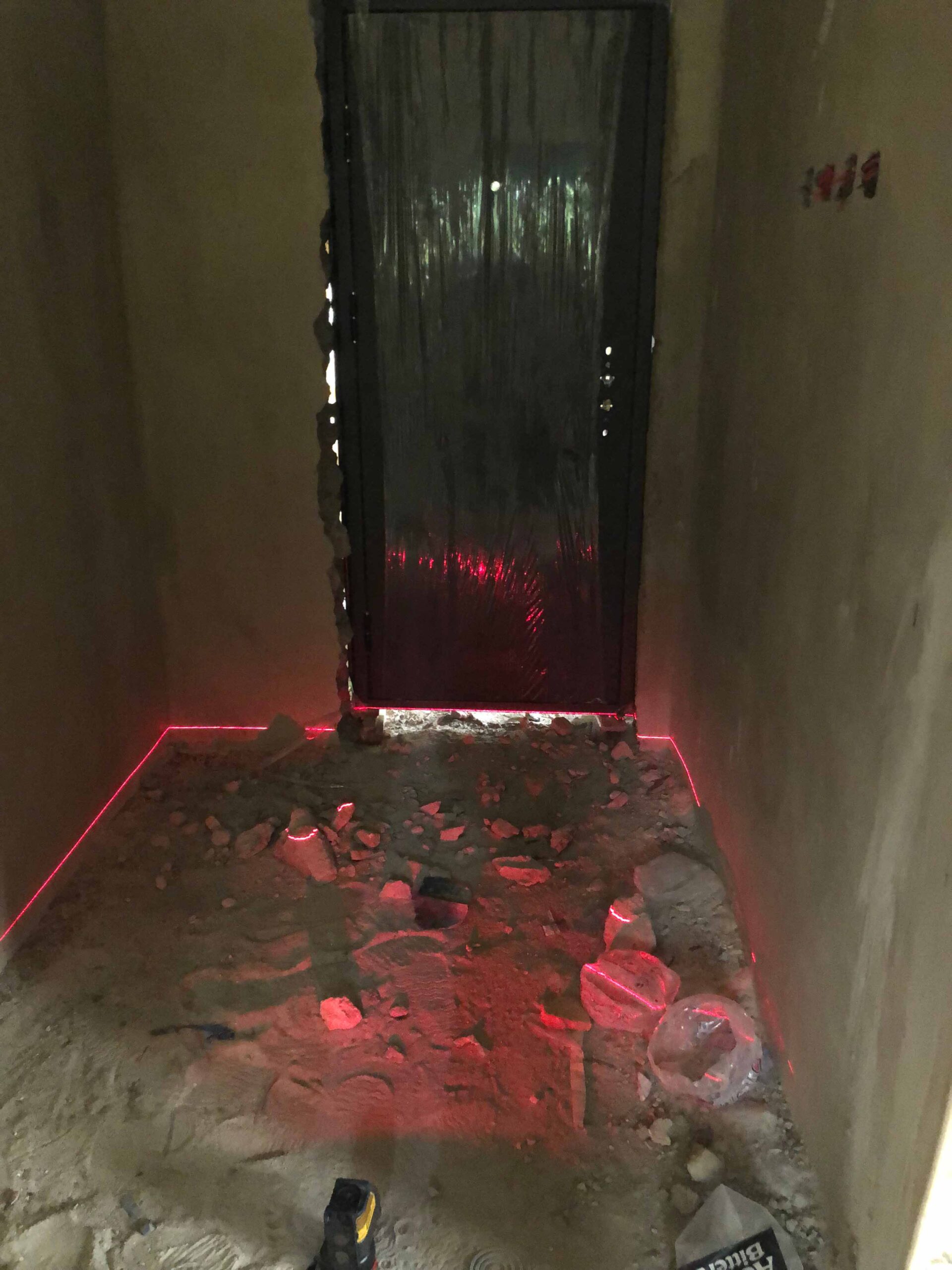

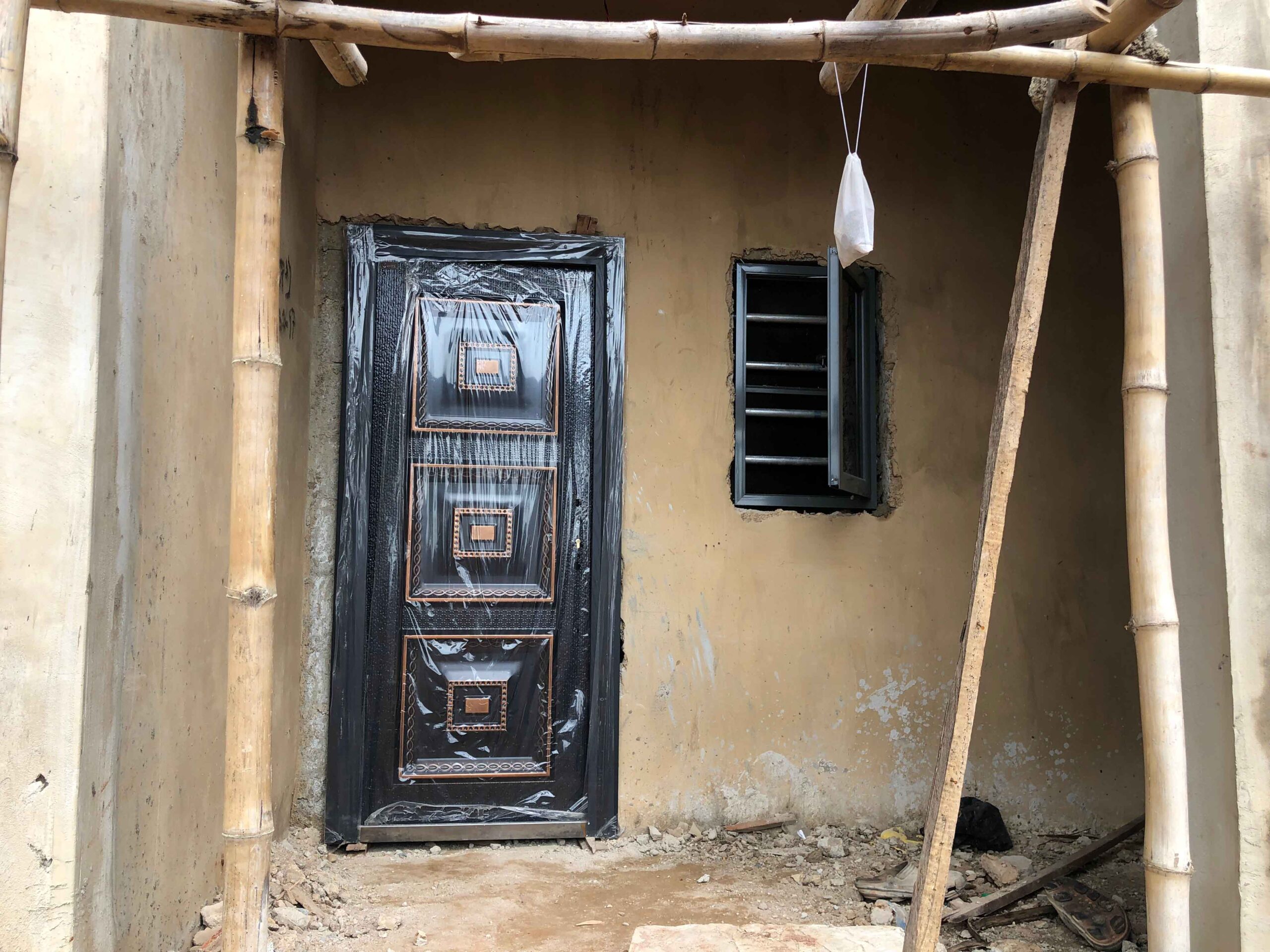

Doors Installation
Security entrance doors and powder-coated aluminum casement windows fitted with 5mm thick glass.
